Komatsu WA380-7 Wheel Loader Drive Shaft Front Parts
Komatsu WA380-7 drive shaft front parts for machine serial A64001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Power Train And Final Drive / Drive Shaft Front.
Checking current purchase options...

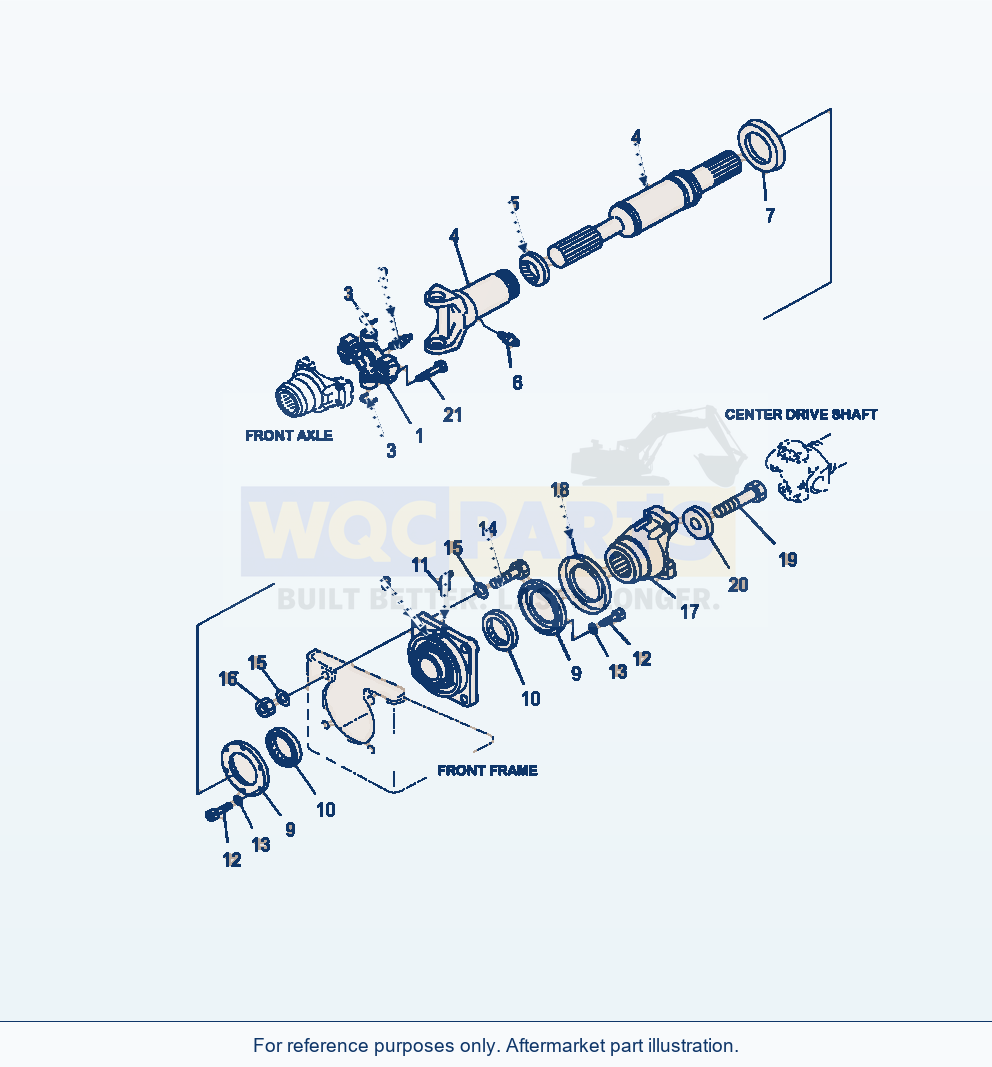

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 24 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | PROPELLER SHAFT ASSEMBLY, FRONT | 1 | Request quote | |||
| 1 | PROPELLER SHAFT | 1 | View product ↗ | |||
| 1 | SPIDER ASSEMBLY | 1 | Request quote | |||
| 2 | FITTING | 1 | Request quote | |||
| 3 | RING | 2 | Request quote | |||
| 4 | YOKE AND SHAFT ASSEMBLY | 1 | Request quote | |||
| 5 | SEAL | 1 | Request quote | |||
| 6 | FITTING | 1 | Request quote | |||
| 7 | DEFLECTOR | 1 | Request quote | |||
| 8 | BEARING ASSEMBLY | 1 | Request quote | |||
| 9 | COVER | 2 | Request quote | |||
| 10 | SEAL | 2 | Request quote | |||
| 11 | FITTING | 1 | View product ↗ | |||
| 12 | BOLT | 12 | Request quote | |||
| 13 | WASHER | 12 | Request quote | |||
| 14 | BOLT | 4 | View product ↗ | |||
| 15 | WASHER | 8 | View product ↗ | |||
| 16 | NUT | 4 | View product ↗ | |||
| 18 | COUPLING ASSEMBLY | 1 | Request quote | |||
| 17 | COUPLING | 1 | Request quote | |||
| 18 | DEFLECTOR | 1 | Request quote | |||
| 19 | BOLT | 1 | View product ↗ | |||
| 20 | HOLDER | 1 | Request quote | |||
| 21 | BOLT | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-7 Wheel Loader Drive Shaft Front Parts
Use the Komatsu WA380-7 Wheel Loader Drive Shaft Front Parts listing to identify aftermarket replacement parts within the power train and final drive section. This wheel loader application is listed for machine serial A64001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 24 listed part occurrences, including propeller shaft assembly, front (reference 423-20-33101), propeller shaft (reference 423-20-33111) and spider assembly (reference 423-20-32621). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
