Komatsu WA380-7 Wheel Loader Decal, Kohag Serial 10001-UP Parts
Komatsu WA380-7 decal, kohag serial 10001-up parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: U0 Marks And Plates / Decal, Kohag / Decal, Kohag.
Checking current purchase options...

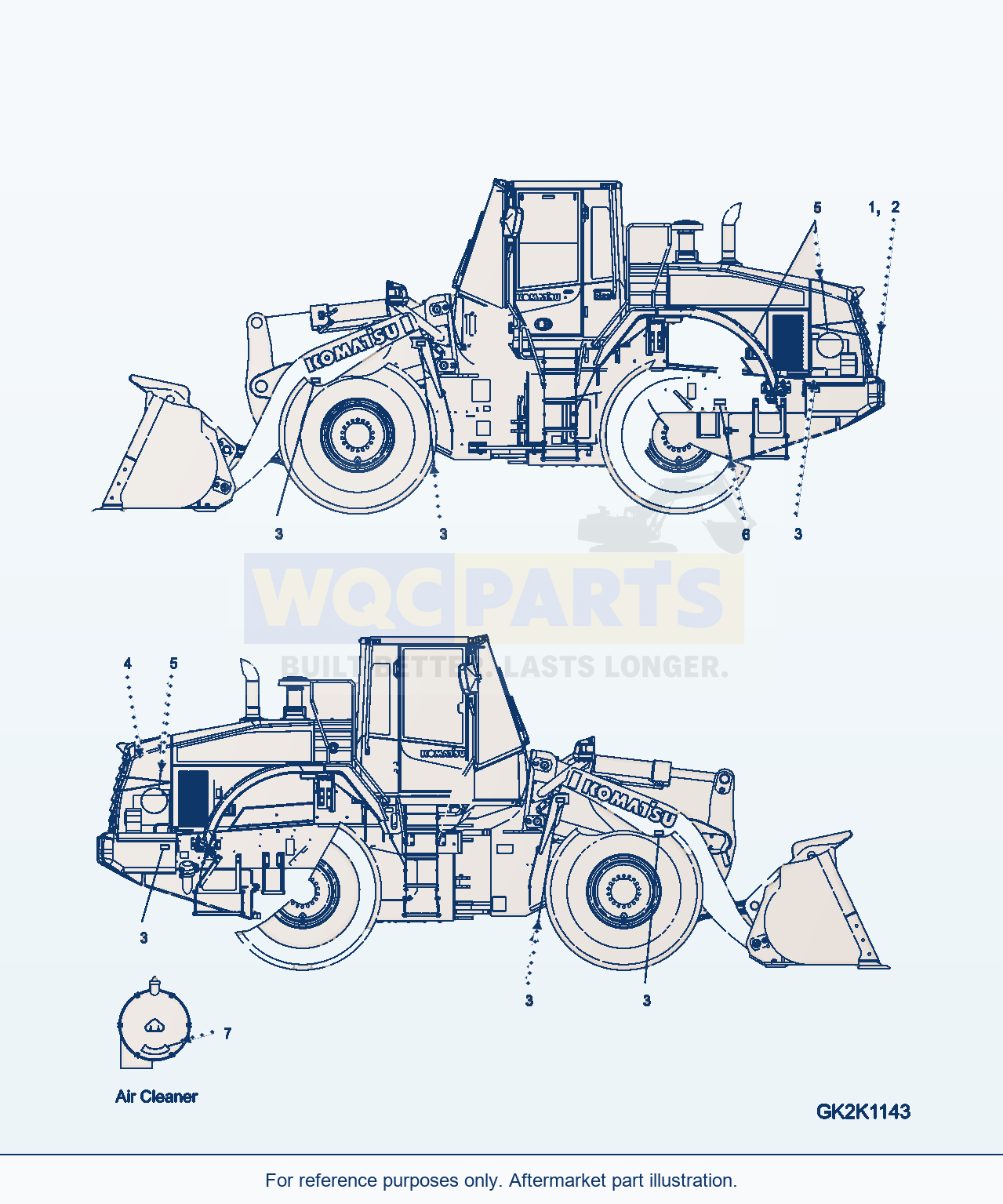

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 7 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | DECAL, MAX. DRAWBAR PULLSN: 10001-UP | 1 | Request quote | |||
| 2 | BLIND RIVETSN: 10001-UP | 2 | Request quote | |||
| 3 | REFLECTOR, YELLOWSN: 10001-UP | 6 | Request quote | |||
| 4 | PLATE, HYDRAULIC OILSN: 10001-UP | 1 | Request quote | |||
| 5 | DECAL SPEED, 40 KM/HSN: 10001-UP | 3 | Request quote | |||
| 6 | DECAL, WATER DRAINSN: 10001-UP | 1 | Request quote | |||
| 7 | PLATE, SERVICE INSTRUCTIONSN: 10001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-7 Wheel Loader Decal, Kohag Serial 10001-UP Parts
Use the Komatsu WA380-7 Wheel Loader Decal, Kohag Serial 10001-UP Parts listing to identify aftermarket replacement parts within the u0 marks and plates section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 7 listed part occurrences, including decal, max. drawbar pull (reference 09823-00001), blind rivet (reference 423-00-H0430) and reflector, yellow (reference 20G-46-K1681). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
