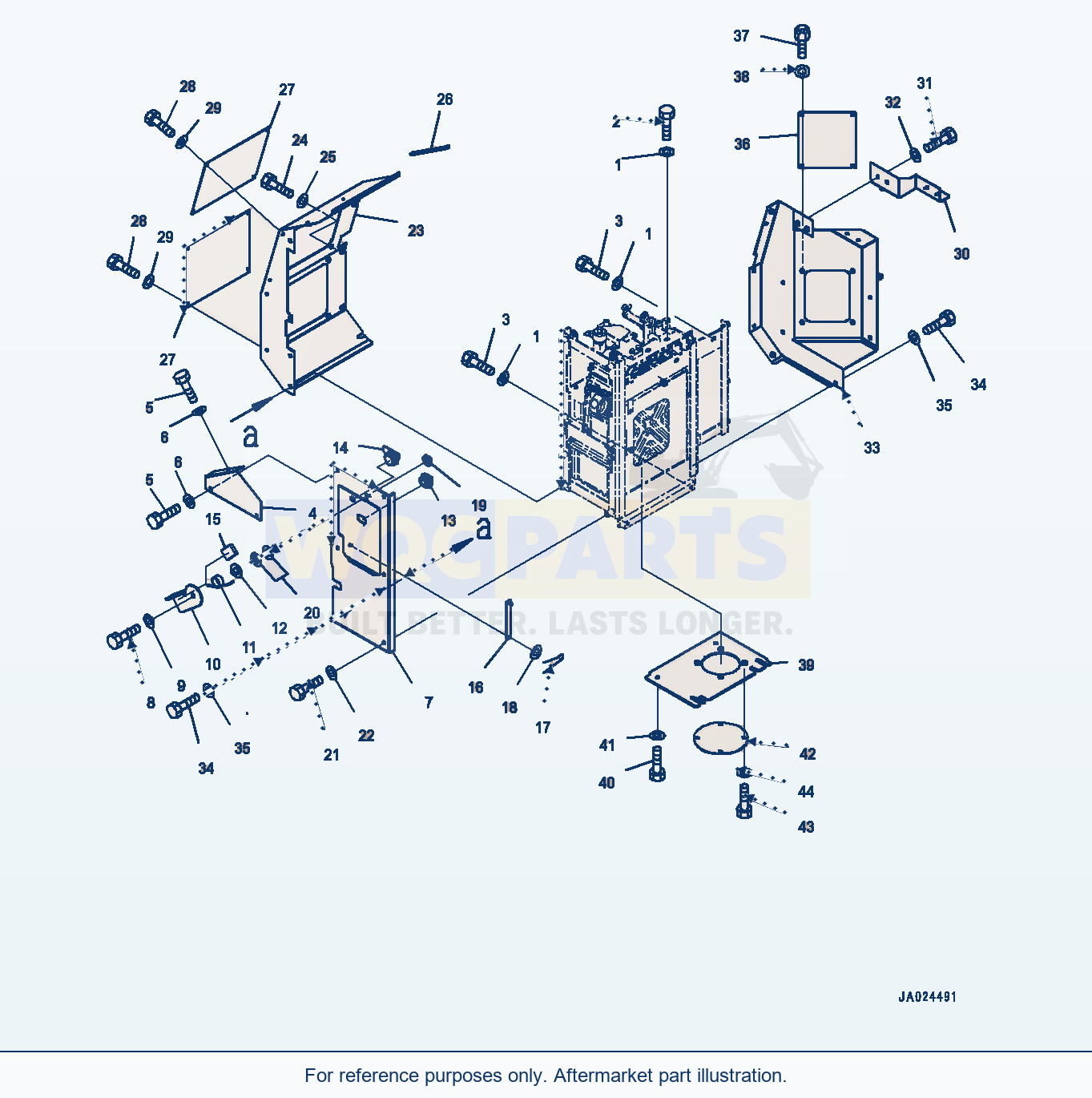

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 46 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WASHER, FLATSN: 15001-UP | 6 | View product ↗ | |||
| 2 | BOLTSN: 15001-UP | 2 | Request quote | |||
| 3 | BOLTSN: 15001-UP | 4 | Request quote | |||
| 4 | COVERSN: 15001-UP | 1 | Request quote | |||
| 5 | BOLTSN: 15001-UP | 3 | Request quote | |||
| 6 | WASHERSN: 15001-UP | 3 | View product ↗ | |||
| 6 | COVER ASSEMBLYSN: 15065-UP | 1 | Request quote | |||
| 7 | COVERSN: 15001-UP | 1 | Request quote | |||
| 8 | BOLTSN: 15001-UP | 1 | Request quote | |||
| 9 | WASHERSN: 15001-UP | 1 | View product ↗ | |||
| 10 | STOPPERSN: 15001-UP | 1 | Request quote | |||
| 11 | SPRINGSN: 15001-UP | 1 | Request quote | |||
| 12 | COLLARSN: 15001-UP | 1 | Request quote | |||
| 13 | CATCHERSN: 15001-UP | 1 | Request quote | |||
| 14 | LOCK ASSEMBLYSN: 15001-UP | 1 | Request quote | |||
| 14 | ROTOR ASSEMBLYSN: 15001-UP | 1 | Request quote | |||
| 15 | CUSHIONSN: 15001-UP | 1 | Request quote | |||
| 16 | BARSN: 15001-UP | 1 | Request quote | |||
| 17 | PIN, COTTERSN: 15001-UP | 1 | Request quote | |||
| 18 | WASHERSN: 15001-UP | 1 | Request quote | |||
| 19 | COLLARSN: 15001-UP | 1 | Request quote | |||
| 20 | SHIM, T=0.1MMSN: 15065-UP | 2 | Request quote | |||
| 21 | BOLTSN: 15001-UP | 4 | Request quote | |||
| 22 | WASHERSN: 15001-UP | 4 | View product ↗ | |||
| 23 | COVERSN: 15001-UP | 1 | Request quote | |||
| 24 | BOLTSN: 15001-UP | 6 | Request quote | |||
| 25 | WASHERSN: 15001-UP | 6 | View product ↗ | |||
| 26 | SEALSN: 15001-UP | 1 | Request quote | |||
| 27 | COVERSN: 15001-UP | 2 | Request quote | |||
| 28 | BOLTSN: 15001-UP | 8 | Request quote | |||
| 29 | WASHERSN: 15001-UP | 8 | View product ↗ | |||
| 30 | COVERSN: 15001-UP | 1 | Request quote | |||
| 31 | BOLTSN: 15001-UP | 4 | Request quote | |||
| 32 | WASHERSN: 15001-UP | 4 | View product ↗ | |||
| 33 | COVERSN: 15001-UP | 1 | Request quote | |||
| 34 | BOLTSN: 15001-UP | 6 | Request quote | |||
| 35 | WASHERSN: 15001-UP | 6 | View product ↗ | |||
| 36 | COVERSN: 15001-UP | 1 | Request quote | |||
| 37 | BOLTSN: 15001-UP | 4 | Request quote | |||
| 38 | WASHERSN: 15001-UP | 4 | View product ↗ | |||
| 39 | COVERSN: 15001-UP | 1 | Request quote | |||
| 40 | BOLTSN: 15001-UP | 4 | Request quote | |||
| 41 | WASHERSN: 15001-UP | 4 | View product ↗ | |||
| 42 | PLATESN: 15001-UP | 1 | Request quote | |||
| 43 | BOLTSN: 15001-UP | 4 | Request quote | |||
| 44 | WASHERSN: 15001-UP | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-8 Def Tank, Def Tank Bracket (#15065-) Parts
Use the Komatsu WA380-8 Def Tank, Def Tank Bracket (#15065-) Parts listing to identify aftermarket replacement parts within the fuel system section. This wheel loader application is listed for machine serial 15001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 46 listed part occurrences, including cover (reference 423-02-69891), cover assembly (reference 423-02-67521) and cover (reference 423-02-61141). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
