Komatsu WA380Z-6 Radiator (Fan Motor Related Parts) (|C00022) Parts
Komatsu WA380Z-6 radiator (fan motor related parts) (|c00022) parts for machine serial DZAA0001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: C0 [Cooling System] / Radiator (Fan Motor Related Parts) (|C00022).
Checking current purchase options...

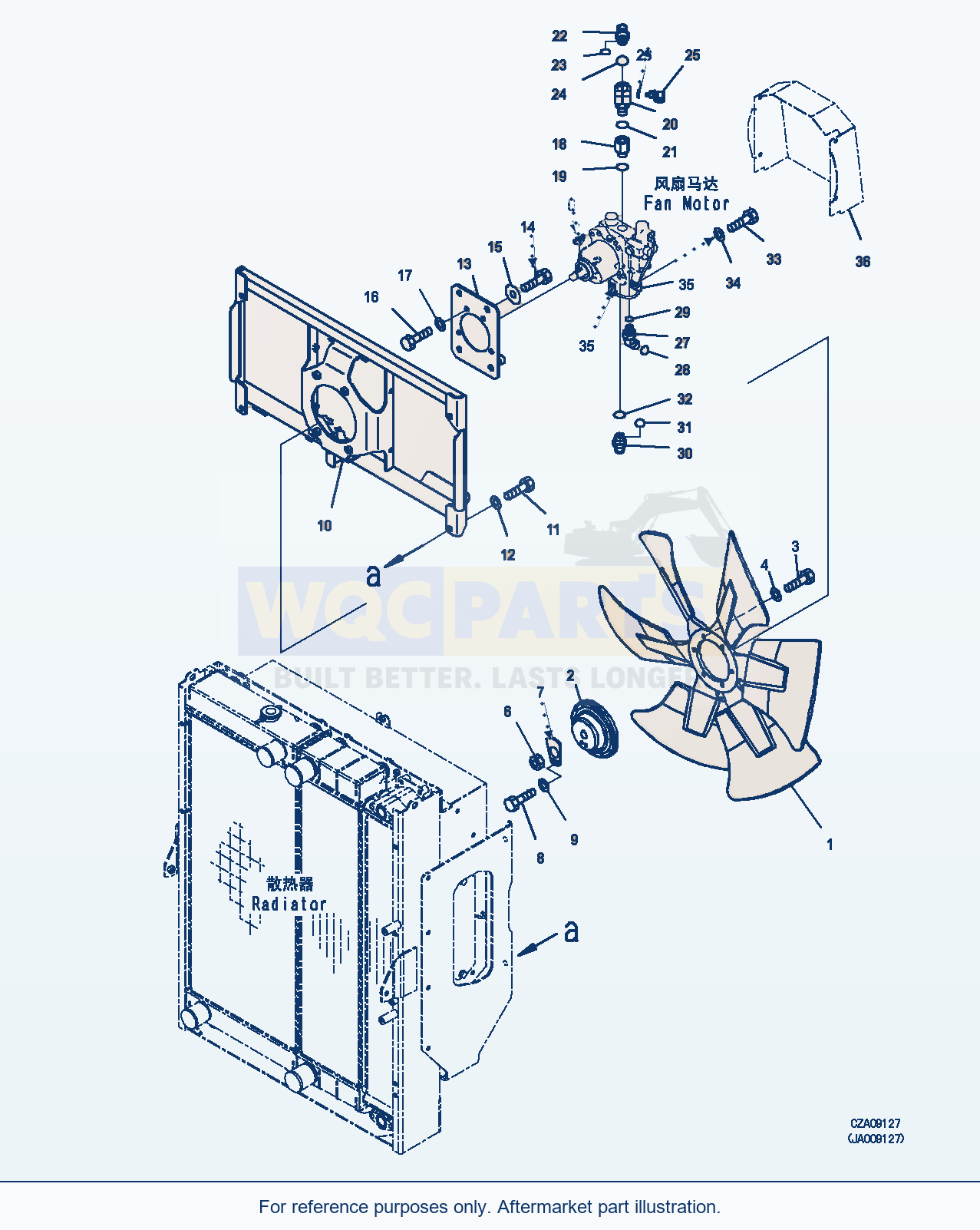

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 36 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FANField_1: FAN, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 2 | BOSSField_1: BOSS, Field_2: DZAA0001- | 1 | Request quote | |||
| 3 | BOLTField_1: BOLT, Field_2: DZAA0001- | 6 | Request quote | |||
| 4 | WASHERField_1: WASHER, Field_2: DZAA0001- | 6 | View product ↗ | |||
| 5 | KEYField_1: KEY, Field_2: DZAA0001- | 1 | Request quote | |||
| 6 | NUTField_1: NUT, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 7 | LOCKField_1: LOCK, Field_2: DZAA0001- | 1 | Request quote | |||
| 8 | BOLTField_1: BOLT, Field_2: DZAA0001- | 1 | Request quote | |||
| 9 | WASHERField_1: WASHER, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 10 | BRACKETField_1: BRACKET, Field_2: DZAA0001- | 1 | Request quote | |||
| 11 | BOLTField_1: BOLT, Field_2: DZAA0001- | 4 | Request quote | |||
| 12 | WASHERField_1: WASHER, Field_2: DZAA0001- | 4 | View product ↗ | |||
| 13 | PLATEField_1: PLATE, Field_2: DZAA0001- | 1 | Request quote | |||
| 14 | BOLTField_1: BOLT, Field_2: DZAA0001- | 4 | Request quote | |||
| 15 | WASHERField_1: WASHER, Field_2: DZAA0001- | 4 | Request quote | |||
| 16 | BOLTField_1: BOLT, Field_2: DZAA0001- | 4 | Request quote | |||
| 17 | WASHERField_1: WASHER, Field_2: DZAA0001- | 4 | View product ↗ | |||
| 18 | ADAPTERField_1: ADAPTER, Field_2: DZAA0001- | 1 | Request quote | |||
| 19 | O-RINGField_1: O-RING, Field_2: DZAA0041- | 1 | View product ↗ | |||
| 20 | O-RINGField_1: O-RING, Field_2: DZAA0001-DZAA0040 | 2 | View product ↗ | |||
| 20 | ELBOWField_1: ELBOW, Field_2: DZAA0001- | 1 | Request quote | |||
| 21 | O-RINGField_1: O-RING, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 22 | ELBOWField_1: ELBOW, Field_2: DZAA0001- | 1 | Request quote | |||
| 23 | O-RINGField_1: O-RING, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 24 | O-RINGField_1: O-RING, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 25 | NIPPLEField_1: NIPPLE, Field_2: DZAA0001- | 1 | Request quote | |||
| 26 | O-RINGField_1: O-RING, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 27 | ELBOWField_1: ELBOW, Field_2: DZAA0001- | 1 | Request quote | |||
| 28 | O-RINGField_1: O-RING, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 29 | O-RINGField_1: O-RING, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 30 | ELBOWField_1: ELBOW, Field_2: DZAA0001- | 1 | Request quote | |||
| 31 | O-RINGField_1: O-RING, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 32 | O-RINGField_1: O-RING, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 33 | BOLTField_1: BOLT, Field_2: DZAA0001- | 2 | Request quote | |||
| 34 | WASHERField_1: WASHER, Field_2: DZAA0001- | 2 | View product ↗ | |||
| 35 | CLIPField_1: CLIP, Field_2: DZAA0001- | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380Z-6 Radiator (Fan Motor Related Parts) (|C00022) Parts
Use the Komatsu WA380Z-6 Radiator (Fan Motor Related Parts) (|C00022) Parts listing to identify aftermarket replacement parts within the c0 [cooling system] section. This wheel loader application is listed for machine serial DZAA0001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 36 listed part occurrences, including fan (reference 600-645-7850), boss (reference 423-03-31710) and key (reference 04010-00722). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When comparing cooling-system parts, check the engine designation and any fan, pump or connection options recorded in the selected diagram. A matching machine family alone does not establish the cooling arrangement.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
