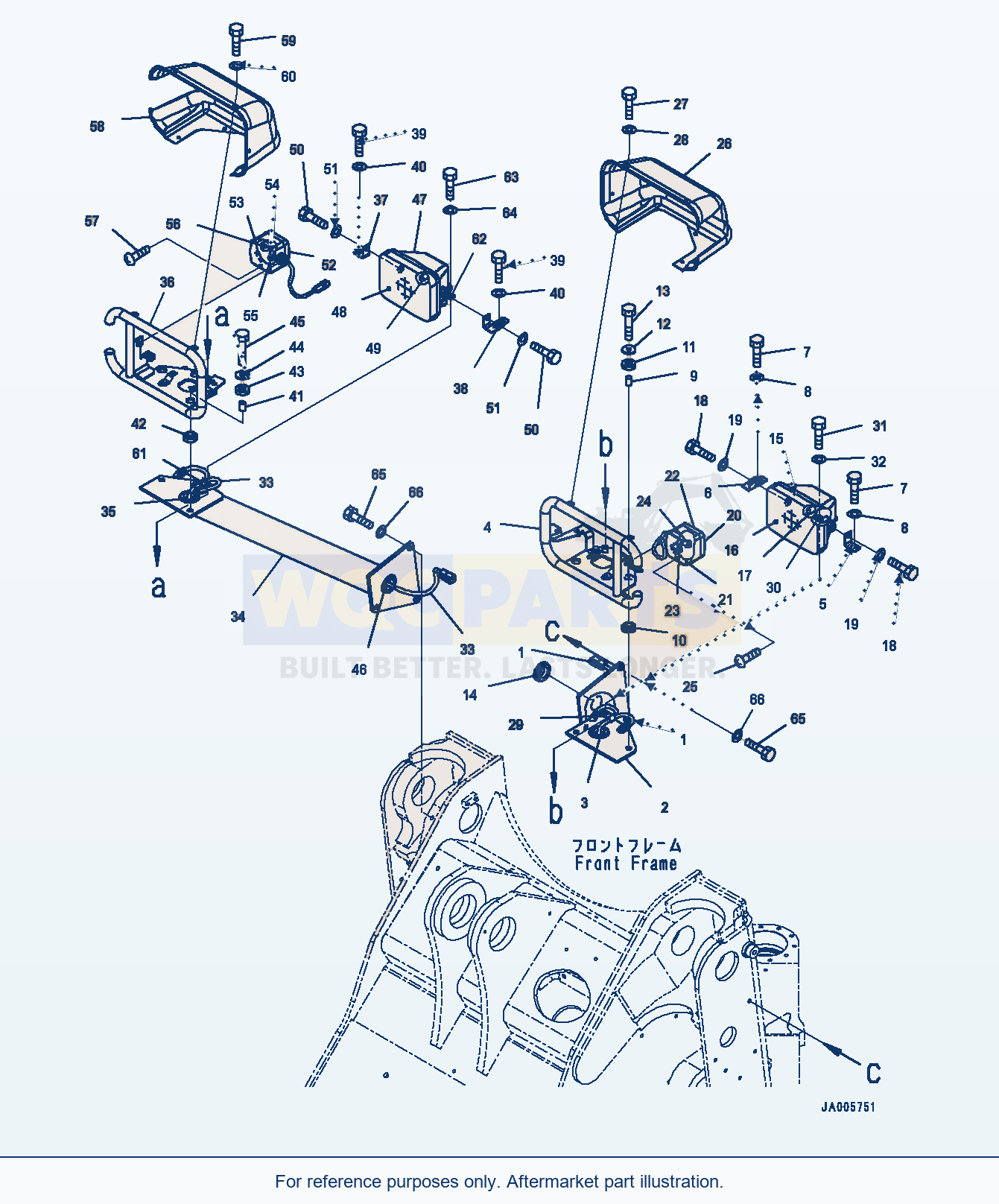

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 66 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WIRING HARNESSSN: 66847-UP | 1 | Request quote | |||
| 2 | SUPPORTSN: 66847-UP | 1 | Request quote | |||
| 3 | GROMMETSN: 66847-UP | 1 | Request quote | |||
| 4 | BRACKETSN: 66847-UP | 1 | Request quote | |||
| 5 | PLATESN: 66847-UP | 1 | Request quote | |||
| 6 | PLATESN: 66847-UP | 1 | Request quote | |||
| 7 | BOLTSN: 66847-UP | 2 | Request quote | |||
| 8 | WASHERSN: 66847-UP | 2 | View product ↗ | |||
| 9 | SPACERSN: 66847-UP | 3 | Request quote | |||
| 10 | CUSHIONSN: 66847-UP | 3 | Request quote | |||
| 11 | CUSHIONSN: 66847-UP | 3 | Request quote | |||
| 12 | WASHERSN: 66847-UP | 3 | Request quote | |||
| 13 | BOLTSN: 66847-UP | 3 | Request quote | |||
| 14 | GROMMETSN: 66847-UP | 1 | Request quote | |||
| 15 | LAMPSN: 66847-UP | 1 | Request quote | |||
| 16 | LENS, CLEARSN: 66847-UP | 1 | Request quote | |||
| 17 | BULB, 75/70WATTSN: 66847-UP | 1 | Request quote | |||
| 18 | BOLTSN: 66847-UP | 2 | Request quote | |||
| 19 | WASHERSN: 66847-UP | 2 | View product ↗ | |||
| 20 | LAMPSN: 66847-UP | 1 | Request quote | |||
| 21 | LENS, ORANGE,FRONTSN: 66847-UP | 1 | Request quote | |||
| 22 | LENS, ORANGE,REARSN: 66847-UP | 1 | Request quote | |||
| 23 | BULB, 5WATTSN: 66847-UP | 1 | Request quote | |||
| 24 | BULB, 25WATTSN: 66847-UP | 1 | View product ↗ | |||
| 25 | SCREWSN: 66847-UP | 4 | Request quote | |||
| 26 | COVERSN: 66847-UP | 1 | Request quote | |||
| 27 | BOLTSN: 66847-UP | 5 | View product ↗ | |||
| 28 | WASHERSN: 66847-UP | 5 | Request quote | |||
| 29 | CLIPSN: 66847-UP | 1 | Request quote | |||
| 30 | CLIPSN: 66847-UP | 1 | Request quote | |||
| 31 | BOLTSN: 66847-UP | 1 | Request quote | |||
| 32 | WASHERSN: 66847-UP | 1 | View product ↗ | |||
| 33 | WIRING HARNESSSN: 66847-UP | 1 | Request quote | |||
| 34 | SUPPORTSN: 66847-UP | 1 | Request quote | |||
| 35 | GROMMETSN: 66847-UP | 1 | Request quote | |||
| 36 | BRACKETSN: 66847-UP | 1 | Request quote | |||
| 37 | PLATESN: 66847-UP | 1 | Request quote | |||
| 38 | PLATESN: 66847-UP | 1 | Request quote | |||
| 39 | BOLTSN: 66847-UP | 2 | Request quote | |||
| 40 | WASHERSN: 66847-UP | 2 | View product ↗ | |||
| 41 | SPACERSN: 66847-UP | 3 | Request quote | |||
| 42 | CUSHIONSN: 66847-UP | 3 | Request quote | |||
| 43 | CUSHIONSN: 66847-UP | 3 | Request quote | |||
| 44 | WASHERSN: 66847-UP | 3 | Request quote | |||
| 45 | BOLTSN: 66847-UP | 3 | Request quote | |||
| 46 | GROMMETSN: 66847-UP | 1 | Request quote | |||
| 47 | LAMPSN: 66847-UP | 1 | Request quote | |||
| 48 | LENS, CLEARSN: 66847-UP | 1 | Request quote | |||
| 49 | BULB, 75/70WATTSN: 66847-UP | 1 | Request quote | |||
| 50 | BOLTSN: 66847-UP | 2 | Request quote | |||
| 51 | WASHERSN: 66847-UP | 2 | View product ↗ | |||
| 52 | LAMPSN: 66847-UP | 1 | Request quote | |||
| 53 | LENS, ORANGE,FRONTSN: 66847-UP | 1 | Request quote | |||
| 54 | LENS, ORANGE,REARSN: 66847-UP | 1 | Request quote | |||
| 55 | BULB, 5WATTSN: 66847-UP | 1 | Request quote | |||
| 56 | BULB, 25WATTSN: 66847-UP | 1 | View product ↗ | |||
| 57 | SCREWSN: 66847-UP | 4 | Request quote | |||
| 58 | COVERSN: 66847-UP | 1 | Request quote | |||
| 59 | BOLTSN: 66847-UP | 5 | View product ↗ | |||
| 60 | WASHERSN: 66847-UP | 5 | Request quote | |||
| 61 | CLIPSN: 66847-UP | 1 | Request quote | |||
| 62 | CLIPSN: 66847-UP | 1 | Request quote | |||
| 63 | BOLTSN: 66847-UP | 1 | Request quote | |||
| 64 | WASHERSN: 66847-UP | 1 | View product ↗ | |||
| 65 | BOLTSN: 66847-UP | 6 | Request quote | |||
| 66 | WASHERSN: 66847-UP | 6 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380Z-6 Wheel Loader Front Lamp (#66847-) Parts
Use the Komatsu WA380Z-6 Wheel Loader Front Lamp (#66847-) Parts listing to identify aftermarket replacement parts within the electrical system section. This wheel loader application is listed for machine serial 66847-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 66 listed part occurrences, including wiring harness (reference 424-06-43151), support (reference 423-06-43111) and grommet (reference 08037-03614). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
