Komatsu WA380Z-6 Thermostat (#26580638-) (Aec00-001001) Parts
Komatsu WA380Z-6 thermostat (#26580638-) (aec00-001001) parts for machine serial 66847-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-1L S/N 26580638-UP (For WA380Z-6) / Engine Cooling System / Thermostat / Thermostat (#26580638-) (Aec00-001001).
Checking current purchase options...

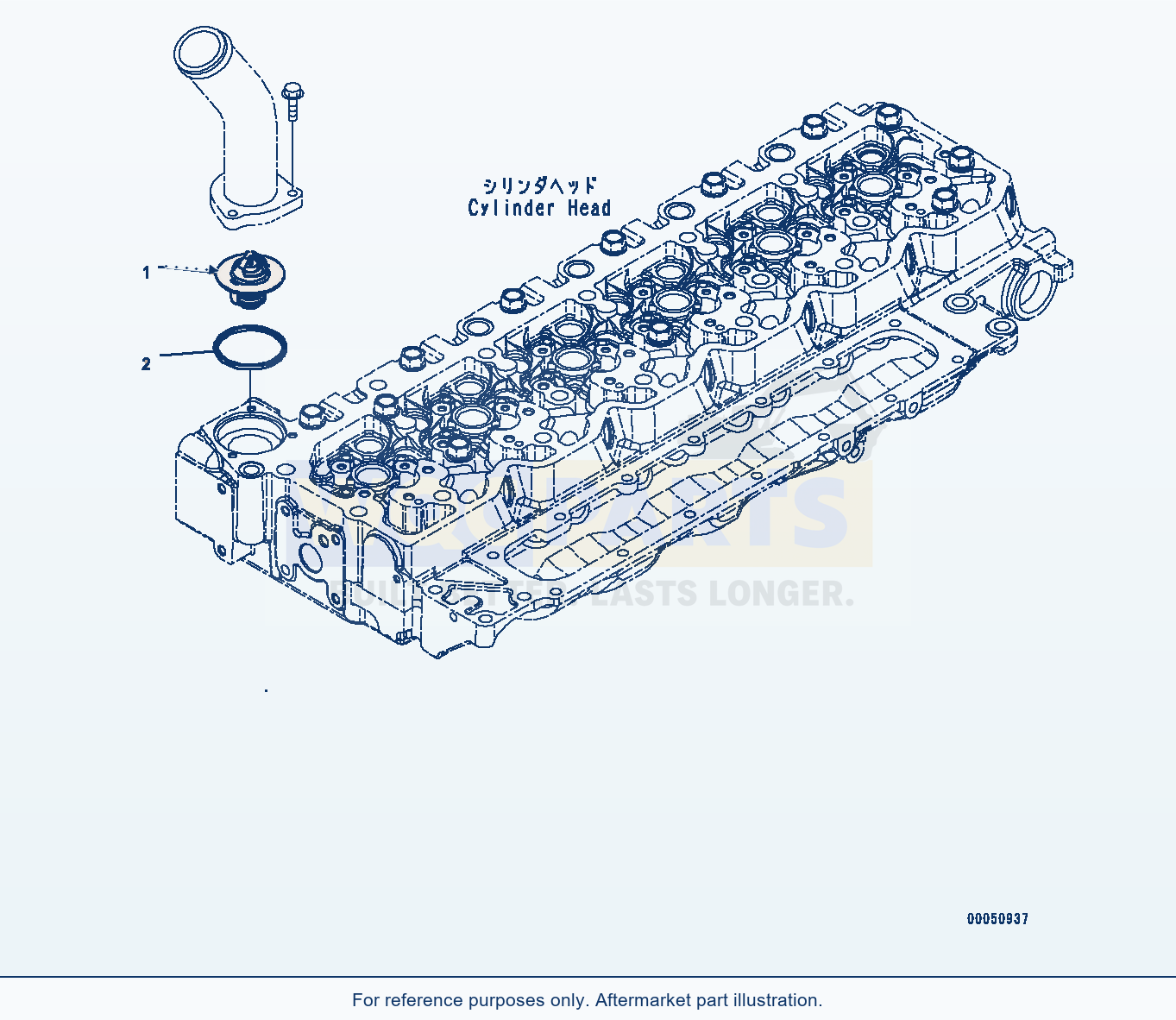

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 4 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | THERMOSTAT ASSEMBLYSN: 26593829-UP | 1 | View product ↗ | |||
| 1 | THERMOSTAT ASSEMBLYSN: 26580638-26593828 | 1 | View product ↗ | |||
| 1 | THERMOSTATSN: 26593829-UP | 1 | Request quote | |||
| 2 | SEALSN: 26580638-UP, KIT-FLAG: S | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THERMOSTAT
Using Komatsu WA380Z-6 Thermostat (#26580638-) (Aec00-001001) Parts
Use the Komatsu WA380Z-6 Thermostat (#26580638-) (Aec00-001001) Parts listing to identify aftermarket replacement parts within the engine cooling system section. This wheel loader application is listed for machine serial 66847-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 4 listed part occurrences, including thermostat assembly (reference 6754-61-6212), thermostat assembly (reference 6754-61-6211) and thermostat (reference 5292739). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-1L (engine serial 26580638-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
When comparing cooling-system parts, check the engine designation and any fan, pump or connection options recorded in the selected diagram. A matching machine family alone does not establish the cooling arrangement.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
