Komatsu WA380Z-6 Fuel Piping (#26580638-) (Aft00-001001) Parts
Komatsu WA380Z-6 fuel piping (#26580638-) (aft00-001001) parts for machine serial 66847-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-1L S/N 26580638-UP (For WA380Z-6) / Engine Fuel System / Fuel Piping / Fuel Piping (#26580638-) (Aft00-001001).
Checking current purchase options...

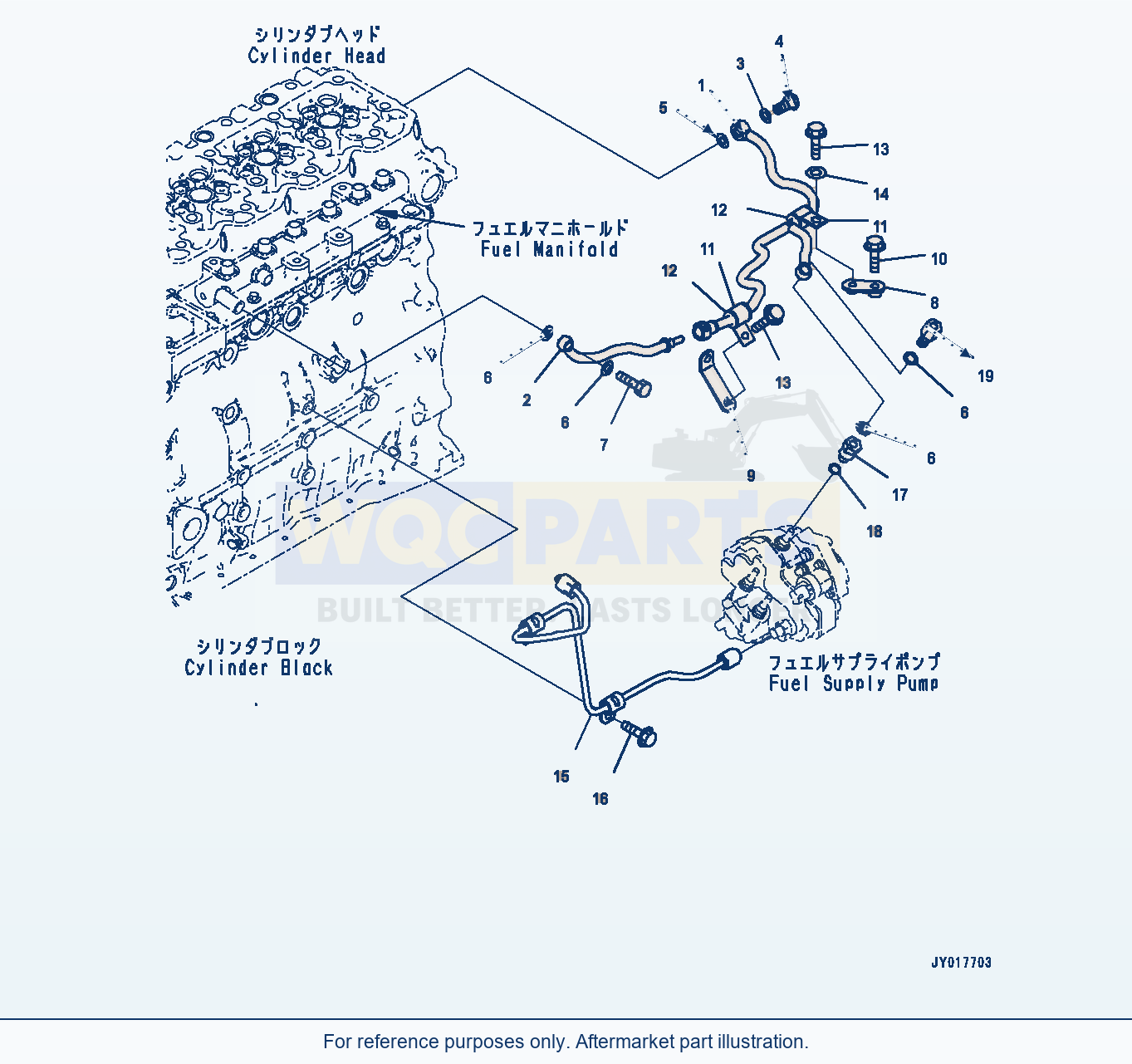

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 19 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TUBE, DRAINSN: 26580638-UP | 1 | Request quote | |||
| 2 | TUBE, DRAINSN: 26580638-UP | 1 | Request quote | |||
| 3 | SEALSN: 26580638-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 4 | VALVE, CHECKSN: 26580638-UP | 1 | Request quote | |||
| 5 | SEAL, WASHERSN: 26580638-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 6 | SEAL, WASHERSN: 26580638-UP, KIT-FLAG: S | 4 | View product ↗ | |||
| 7 | BOLT, JOINTSN: 26580638-UP | 1 | Request quote | |||
| 8 | BRACKETSN: 26580638-UP | 1 | Request quote | |||
| 9 | BRACKETSN: 26580638-UP | 1 | Request quote | |||
| 10 | SCREWSN: 26580638-UP | 1 | Request quote | |||
| 11 | CLIPSN: 26580638-UP | 2 | Request quote | |||
| 12 | CUSHIONSN: 26580638-UP | 2 | Request quote | |||
| 13 | BOLTSN: 26580638-UP | 2 | Request quote | |||
| 14 | WASHERSN: 26580638-UP | 1 | Request quote | |||
| 15 | TUBESN: 26580638-UP | 1 | Request quote | |||
| 16 | BOLTSN: 26580638-UP | 1 | Request quote | |||
| 17 | ADAPTERSN: 26580638-UP | 1 | Request quote | |||
| 18 | WASHERSN: 26580638-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 19 | JOINTSN: 26580638-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380Z-6 Fuel Piping (#26580638-) (Aft00-001001) Parts
Use the Komatsu WA380Z-6 Fuel Piping (#26580638-) (Aft00-001001) Parts listing to identify aftermarket replacement parts within the engine fuel system section. This wheel loader application is listed for machine serial 66847-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 19 listed part occurrences, including tube, drain (reference 6754-71-5470), tube, drain (reference 6754-71-5460) and valve, check (reference 6754-71-5430). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-1L (engine serial 26580638-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
