Komatsu WA380Z-6 Propeller Shaft (Front Shaft) (|F00078) Parts
Komatsu WA380Z-6 propeller shaft (front shaft) (|f00078) parts for machine serial DZAA0001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: F0 [Power Transmitting System] / Propeller Shaft (Front Shaft) (|F00078).
Checking current purchase options...

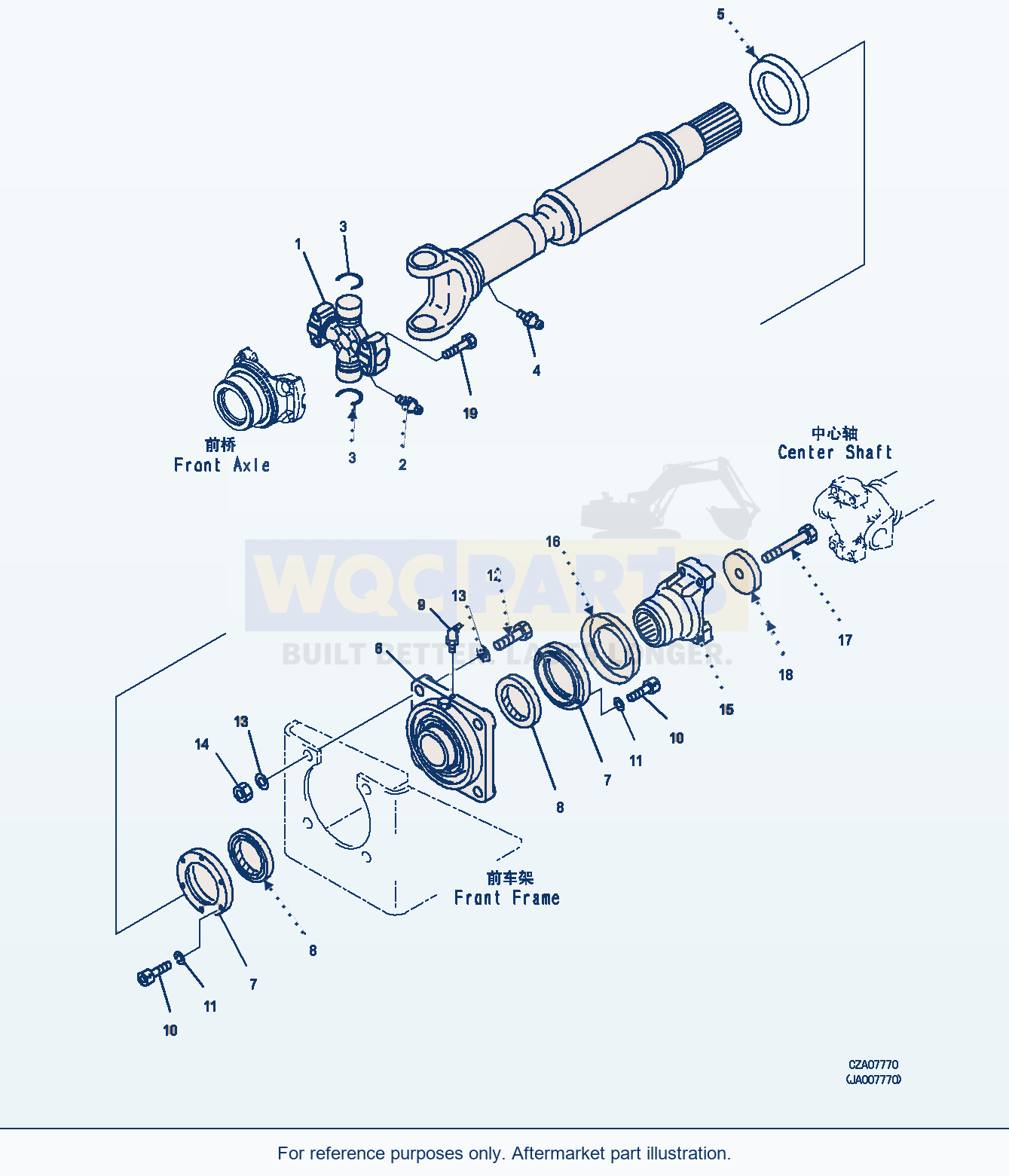

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 21 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PROPELLER SHAFTField_1: PROPELLER SHAFT, Field_2: DZAA0001- | 1 | Request quote | |||
| 2 | PROPELLER SHAFTField_1: PROPELLER SHAFT, Field_2: DZAA0001- | 1 | Request quote | |||
| 1 | SPIDER ASSEMBLYField_1: SPIDER ASSEMBLY, Field_2: DZAA0001- | 1 | Request quote | |||
| 2 | FITTINGField_1: FITTING, Field_2: DZAA0001- | 1 | Request quote | |||
| 3 | RINGField_1: RING, Field_2: DZAA0001- | 2 | Request quote | |||
| 4 | FITTINGField_1: FITTING, Field_2: DZAA0001- | 1 | Request quote | |||
| 5 | DEFLECTORField_1: DEFLECTOR, Field_2: DZAA0001- | 1 | Request quote | |||
| 6 | BEARING ASSEMBLYField_1: BEARING ASSEMBLY, Field_2: DZAA0001- | 1 | Request quote | |||
| 7 | COVERField_1: COVER, Field_2: DZAA0001- | 2 | Request quote | |||
| 8 | SEALField_1: SEAL, Field_2: DZAA0001- | 2 | Request quote | |||
| 9 | FITTING, GREASEField_1: FITTING, GREASE, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 10 | BOLT, HEXAGON SOCKET HEADField_1: BOLT, HEXAGON SOCKET HEAD, Field_2: DZAA0001- | 12 | Request quote | |||
| 11 | WASHERField_1: WASHER, Field_2: DZAA0001- | 12 | Request quote | |||
| 12 | BOLTField_1: BOLT, Field_2: DZAA0001- | 4 | View product ↗ | |||
| 13 | WASHERField_1: WASHER, Field_2: DZAA0001- | 8 | View product ↗ | |||
| 14 | NUTField_1: NUT, Field_2: DZAA0001- | 4 | View product ↗ | |||
| 17 | COUPLING ASSEMBLYField_1: COUPLING ASSEMBLY, Field_2: DZAA0001- | 1 | Request quote | |||
| 16 | DEFLECTORField_1: DEFLECTOR, Field_2: DZAA0001- | 1 | Request quote | |||
| 17 | BOLTField_1: BOLT, Field_2: DZAA0001- | 1 | View product ↗ | |||
| 18 | HOLDERField_1: HOLDER, Field_2: DZAA0001- | 1 | Request quote | |||
| 19 | BOLTField_1: BOLT, Field_2: DZAA0001- | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
COUPLING
Using Komatsu WA380Z-6 Propeller Shaft (Front Shaft) (|F00078) Parts
Use the Komatsu WA380Z-6 Propeller Shaft (Front Shaft) (|F00078) Parts listing to identify aftermarket replacement parts within the f0 [power transmitting system] section. This wheel loader application is listed for machine serial DZAA0001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 21 listed part occurrences, including propeller shaft (reference 423-20-39100), propeller shaft (reference 423-20-39110) and spider assembly (reference 56E-20-25110). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
