Komatsu WA380Z-6 Wheel Loader Steering Cylinder (Pin) (|J00225) Parts
Komatsu WA380Z-6 steering cylinder (pin) (|j00225) parts for machine serial DZAA0001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: J0 [Frame And Its Related Parts] / Steering Cylinder (Pin) (|J00225).
Checking current purchase options...

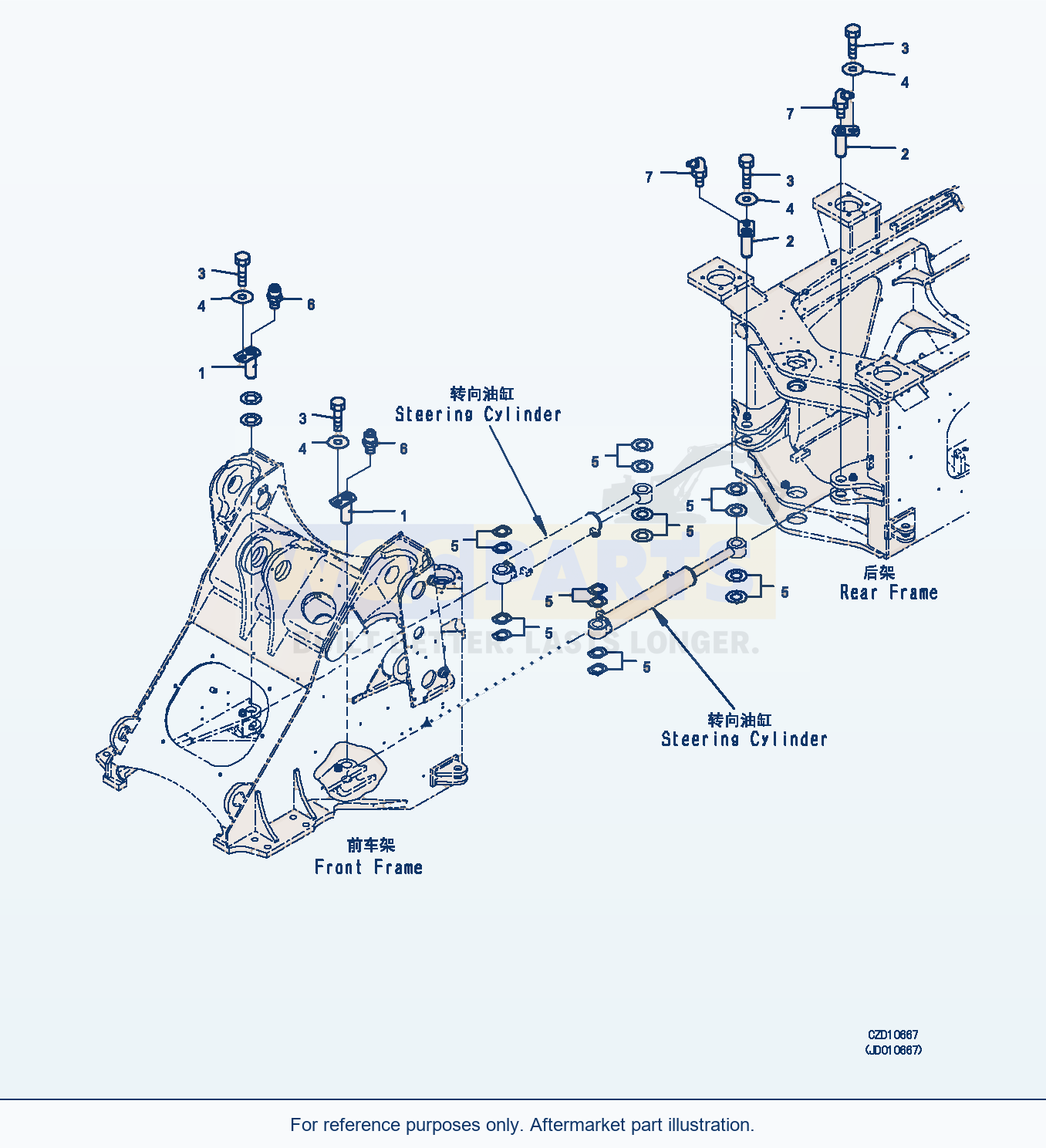

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 7 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PINField_1: PIN, Field_2: DZAA0001- | 2 | View product ↗ | |||
| 2 | PINField_1: PIN, Field_2: DZAA0001- | 2 | View product ↗ | |||
| 3 | BOLTField_1: BOLT, Field_2: DZAA0001- | 4 | View product ↗ | |||
| 4 | WASHERField_1: WASHER, Field_2: DZAA0001- | 4 | View product ↗ | |||
| 5 | SHIM ASSEMBLYField_1: SHIM ASSEMBLY, Field_2: DZAA0001- | 1 | Request quote | |||
| 6 | CONNECTORField_1: CONNECTOR, Field_2: DZAA0001- | 2 | View product ↗ | |||
| 7 | FITTING, GREASEField_1: FITTING, GREASE, Field_2: DZAA0001- | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SHIM, T=1.0MM
SHIM, T=0.5MM
SHIM, T=1.0MM
SHIM, T=0.5MM
Using Komatsu WA380Z-6 Wheel Loader Steering Cylinder (Pin) (|J00225) Parts
Use the Komatsu WA380Z-6 Wheel Loader Steering Cylinder (Pin) (|J00225) Parts listing to identify aftermarket replacement parts within the j0 [frame and its related parts] section. This wheel loader application is listed for machine serial DZAA0001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 7 listed part occurrences, including pin (reference 423-46-21180), shim assembly (reference 416-70-00070) and connector (reference 423-09-12110). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
