Komatsu WA380Z-6 Ladder (R.H.) (For Auto Grease) (|M00378) Parts
Komatsu WA380Z-6 ladder (r.h.) (for auto grease) (|m00378) parts for machine serial DZAA0001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: M0 [Guards And Covers] / Ladder (R.H.) (For Auto Grease) (|M00378).
Checking current purchase options...

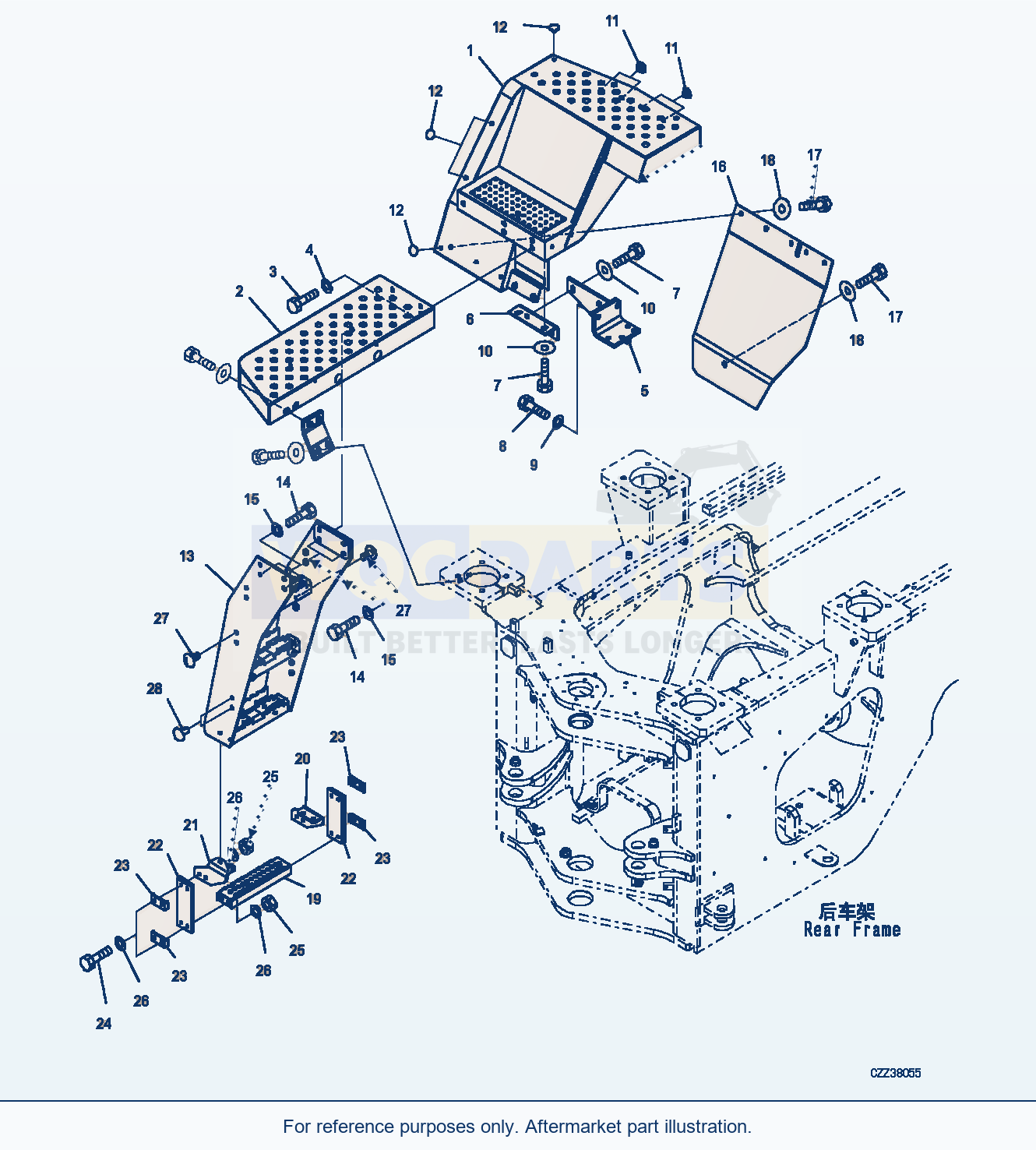

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 28 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FLOOR RHField_1: FLOOR RH, Field_2: DZAA0450- | 1 | Request quote | |||
| 2 | FLOOR RHField_1: FLOOR RH, Field_2: DZAA0450- | 1 | Request quote | |||
| 3 | BOLTField_1: BOLT, Field_2: DZAA0450- | 4 | Request quote | |||
| 4 | WASHERField_1: WASHER, Field_2: DZAA0450- | 4 | View product ↗ | |||
| 5 | BRACKET RHField_1: BRACKET RH, Field_2: DZAA0450- | 1 | Request quote | |||
| 6 | BRACKETField_1: BRACKET, Field_2: DZAA0450- | 1 | Request quote | |||
| 7 | BOLTField_1: BOLT, Field_2: DZAA0450- | 4 | Request quote | |||
| 8 | BOLTField_1: BOLT, Field_2: DZAA0450- | 2 | Request quote | |||
| 9 | WASHERField_1: WASHER, Field_2: DZAA0450- | 2 | View product ↗ | |||
| 10 | WASHERField_1: WASHER, Field_2: DZAA0450- | 4 | Request quote | |||
| 11 | PLUGField_1: PLUG, Field_2: DZAA0450- | 4 | Request quote | |||
| 12 | PLUGField_1: PLUG, Field_2: DZAA0450- | 4 | Request quote | |||
| 13 | LADDERField_1: LADDER, Field_2: DZAA0450- | 1 | Request quote | |||
| 14 | BOLTField_1: BOLT, Field_2: DZAA0450- | 4 | Request quote | |||
| 15 | WASHERField_1: WASHER, Field_2: DZAA0450- | 4 | View product ↗ | |||
| 16 | SHEET RHField_1: SHEET RH, Field_2: DZAA0450- | 1 | Request quote | |||
| 17 | BOLTField_1: BOLT, Field_2: DZAA0450- | 6 | Request quote | |||
| 18 | WASHERField_1: WASHER, Field_2: DZAA0450- | 6 | Request quote | |||
| 19 | STEPField_1: STEP, Field_2: DZAA0450- | 1 | Request quote | |||
| 20 | PLATEField_1: PLATE, Field_2: DZAA0450- | 1 | Request quote | |||
| 21 | PLATEField_1: PLATE, Field_2: DZAA0450- | 1 | Request quote | |||
| 22 | RUBBERField_1: RUBBER, Field_2: DZAA0450- | 2 | Request quote | |||
| 23 | PLATEField_1: PLATE, Field_2: DZAA0450- | 1 | Request quote | |||
| 24 | BOLTField_1: BOLT, Field_2: DZAA0450- | 8 | Request quote | |||
| 25 | NUTField_1: NUT, Field_2: DZAA0450- | 8 | Request quote | |||
| 26 | WASHERField_1: WASHER, Field_2: DZAA0450- | 16 | View product ↗ | |||
| 27 | CAPField_1: CAP, Field_2: DZAA0450- | 2 | Request quote | |||
| 28 | PLUGField_1: PLUG, Field_2: DZAA0450- | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380Z-6 Ladder (R.H.) (For Auto Grease) (|M00378) Parts
Use the Komatsu WA380Z-6 Ladder (R.H.) (For Auto Grease) (|M00378) Parts listing to identify aftermarket replacement parts within the m0 [guards and covers] section. This wheel loader application is listed for machine serial DZAA0001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 28 listed part occurrences, including floor rh (reference 423-54-44821), floor rh (reference 423-54-44842) and bracket rh (reference 423-54-41330). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
