Komatsu WA380Z-6 Decal, Indonesian — Decal, Exterior (#66847-) Parts
Komatsu WA380Z-6 decal, indonesian — decal, exterior (#66847-) parts for machine serial 66847-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Decal, Indonesian / Decal, Exterior (#66847-).
Checking current purchase options...

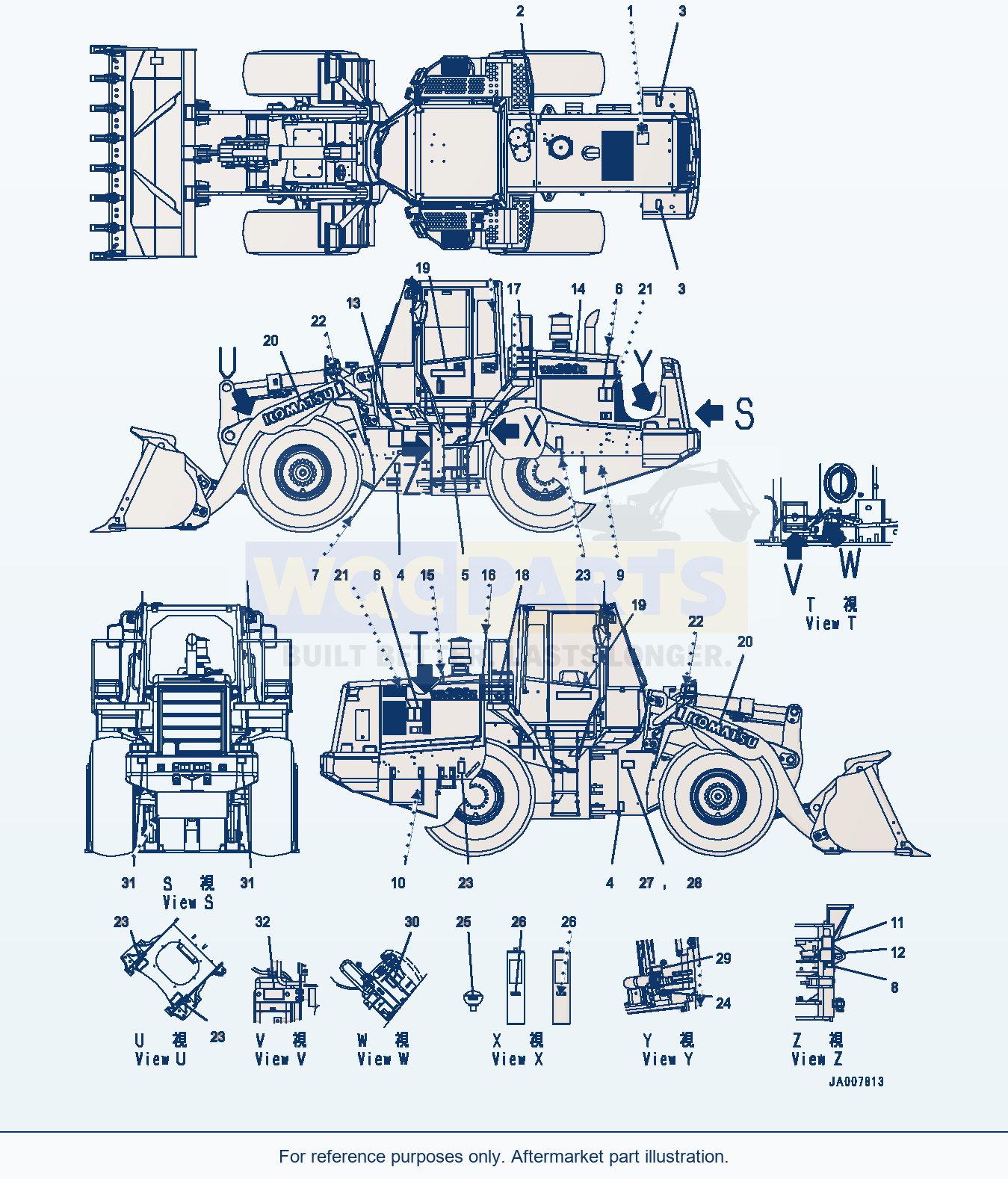

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 28 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | PLATE ASSEMBLYSN: 66847-UP | 1 | Request quote | |||
| 1 | PLATE, WARNING, HIGH TEMPERATURESN: 66847-UP | 1 | Request quote | |||
| 2 | PLATE, WARNING, HIGH TEMPERATURESN: 66847-UP | 1 | Request quote | |||
| 3 | PLATE, WARNING, BATTERY CABLESSN: 66847-UP | 2 | Request quote | |||
| 4 | PLATE, DANGER, KEEP OFFSN: 66847-UP | 2 | Request quote | |||
| 5 | PLATE, WARNING, ARTICULATION LOCKSN: 66847-UP | 1 | Request quote | |||
| 6 | PLATE, CAUTION, ROTATING OBJECTSN: 66847-UP | 2 | Request quote | |||
| 7 | PLATE ASSEMBLYSN: 66847-UP | 1 | Request quote | |||
| 13 | LUBRICATION CHARTSN: 66847-UP | 1 | Request quote | |||
| 14 | PLATE, MARK, WA380Z, L.H.SN: 66847-UP | 1 | Request quote | |||
| 15 | PLATE, MARK, WA380Z, R.H.SN: 66847-UP | 1 | Request quote | |||
| 16 | PLATE, MARK, WA380Z, R.H.SN: 66847-UP | 1 | Request quote | |||
| 17 | PLATE, STRIPE, L.H.SN: 66847-UP | 1 | Request quote | |||
| 18 | PLATE, STRIPE, R.H.SN: 66847-UP | 1 | Request quote | |||
| 19 | PLATE, KOMATSU LOGOSN: 66847-UP | 2 | Request quote | |||
| 20 | PLATE, KOMATSU LOGOSN: 66847-UP | 2 | Request quote | |||
| 21 | PLATE, DANGER, KEEP AWAY FROM MACHINESN: 66847-UP | 2 | Request quote | |||
| 22 | PLATE, DANGER, KEEP OUT UNDER WORK EQUIPMENTSN: 66847-UP | 2 | Request quote | |||
| 23 | MARK, LIFT POINT AND TIE DOWN POINT MARKSSN: 66847-UP | 4 | Request quote | |||
| 24 | PLATE, SYMBOL, FUEL FILLERSN: 66847-UP | 1 | Request quote | |||
| 25 | PLATE, WARNING, EXPLOSION HAZARD, PPC ACCUMLATORSN: 66847-UP | 1 | Request quote | |||
| 26 | PLATE, WARNING, EXPLOSION HAZARD, BRAKE ACCUMLATORSN: 66847-UP | 2 | Request quote | |||
| 27 | PLATE, NAME (LIMITED SUPPLY)SN: 66847-UP, SCC: C2 | 1 | Request quote | |||
| 28 | SCREWSN: 66847-UP | 4 | Request quote | |||
| 29 | PLATE, CAUTION, ROTATING OBJECTSN: 66847-UP | 1 | Request quote | |||
| 30 | PLATE,PREFILTERSN: 66847-UP | 1 | Request quote | |||
| 31 | PLATE, REFLECTORSN: 66847-UP | 2 | Request quote | |||
| 32 | PLATE, SERVICE INSTRUCTIONSN: 66847-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
PLATE, REMOTE GREASE, CYLINDER
PLATE, REMOTE GREASE, REAR AXLE
PLATE, RADIATOR DRAIN
PLATE, ENGINE OIL DRAIN
PLATE, PARKING BRAKE EMERGENCY RELEASE SWITCH
PLATE, PARKING BRAKE EMERGENCY RELEASE METHOD
Using Komatsu WA380Z-6 Decal, Indonesian — Decal, Exterior (#66847-) Parts
Use the Komatsu WA380Z-6 Decal, Indonesian — Decal, Exterior (#66847-) Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial 66847-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 28 listed part occurrences, including plate assembly (reference 426-93-21570), plate, warning, high temperature (reference 09653-A0641) and plate, warning, battery cables (reference 09808-A1201). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
