Komatsu WA380Z-6 Decal (English) (Exterior) (|U00450) Parts
Komatsu WA380Z-6 decal (english) (exterior) (|u00450) parts for machine serial DZAA0001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: U0 [Marks And Plates] / Decal (English) (Exterior) (|U00450).
Checking current purchase options...

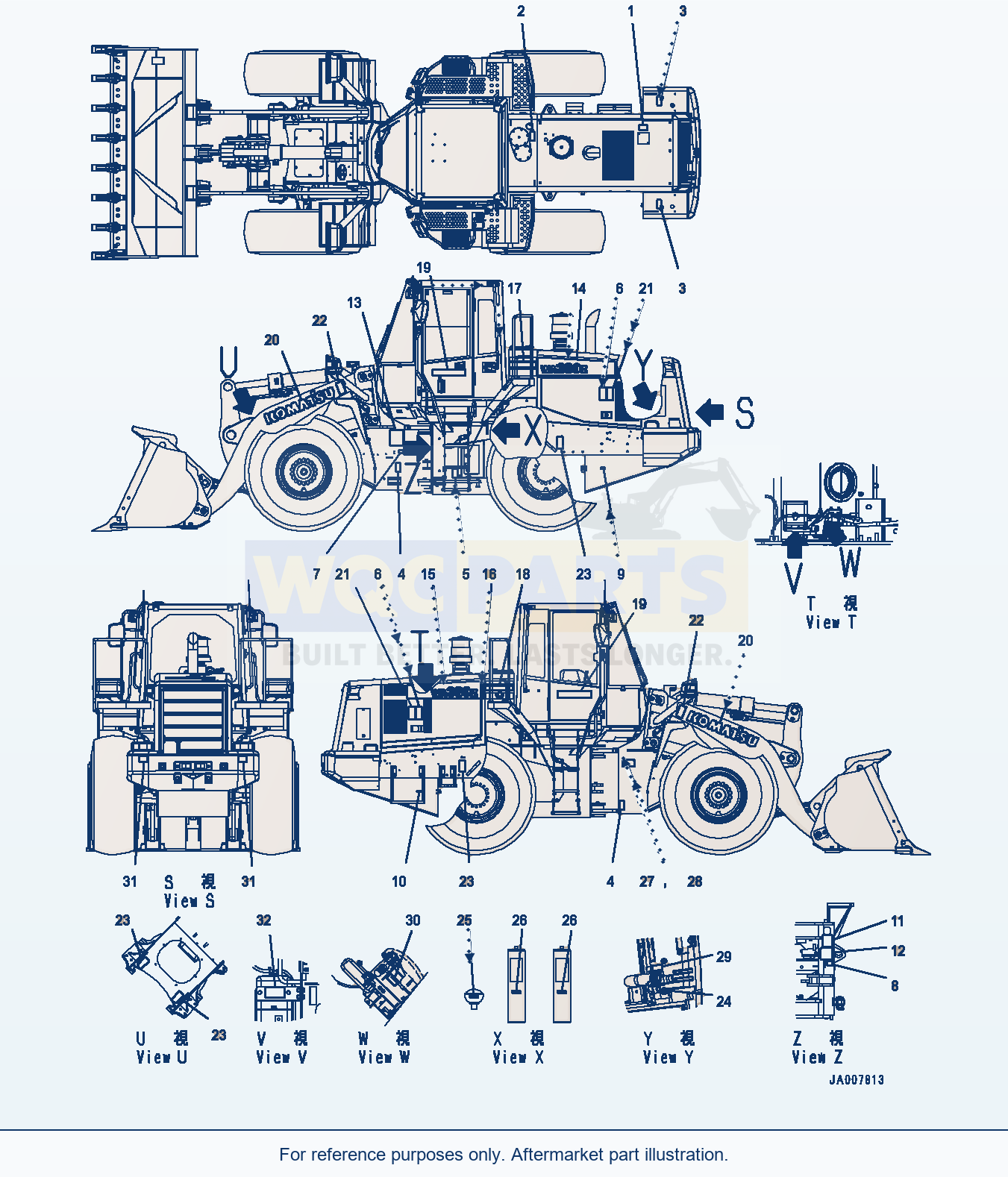

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 29 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE ASSEMBLYField_1: PLATE ASSEMBLY, Field_2: DZAA0001- | 1 | Request quote | |||
| 1 | PLATE, WARNING, HIGH TEMPERATUREField_1: PLATE, WARNING, HIGH TEMPERATURE, Field_2: DZAA0001- | 1 | Request quote | |||
| 2 | PLATE, WARNING, HIGH TEMPERATUREField_1: PLATE, WARNING, HIGH TEMPERATURE, Field_2: DZAA0001- | 1 | Request quote | |||
| 3 | PLATE, WARNING, BATTERY CABLESField_1: PLATE, WARNING, BATTERY CABLES, Field_2: DZAA0001- | 2 | Request quote | |||
| 4 | PLATE, DANGER, KEEP OFFField_1: PLATE, DANGER, KEEP OFF, Field_2: DZAA0001- | 2 | Request quote | |||
| 5 | PLATE, WARNING, ARTICULATION LOCKField_1: PLATE, WARNING, ARTICULATION LOCK, Field_2: DZAA0001- | 1 | Request quote | |||
| 6 | PLATE, CAUTION, ROTATING OBJECTField_1: PLATE, CAUTION, ROTATING OBJECT, Field_2: DZAA0001- | 2 | Request quote | |||
| 8 | PLATE ASSEMBLYField_1: PLATE ASSEMBLY, Field_2: DZAA0001- | 1 | Request quote | |||
| 13 | LUBRICATION CHARTField_1: LUBRICATION CHART, Field_2: DZAA0001- | 1 | Request quote | |||
| 14 | PLATE, MARK, WA380Z, L.H.Field_1: PLATE, MARK, WA380Z, L.H., Field_2: DZAA0001- | 1 | Request quote | |||
| 15 | PLATE, MARK, WA380Z, R.H.Field_1: PLATE, MARK, WA380Z, R.H., Field_2: DZAA0001- | 1 | Request quote | |||
| 16 | PLATE, MARK, WA380Z, R.H.Field_1: PLATE, MARK, WA380Z, R.H., Field_2: DZAA0001- | 1 | Request quote | |||
| 17 | PLATE, STRIPE, L.H.Field_1: PLATE, STRIPE, L.H., Field_2: DZAA0001- | 1 | Request quote | |||
| 18 | PLATE, STRIPE, R.H.Field_1: PLATE, STRIPE, R.H., Field_2: DZAA0001- | 1 | Request quote | |||
| 19 | PLATE, KOMATSU LOGOField_1: PLATE, KOMATSU LOGO, Field_2: DZAA0001- | 2 | Request quote | |||
| 20 | PLATE, KOMATSU LOGOField_1: PLATE, KOMATSU LOGO, Field_2: DZAA0001- | 2 | Request quote | |||
| 21 | PLATE, DANGER, KEEP AWAY FROM MACHINEField_1: PLATE, DANGER, KEEP AWAY FROM MACHINE, Field_2: DZAA0001- | 2 | Request quote | |||
| 22 | PLATE, DANGER, KEEP OUT UNDER WORK EQUIPMENTField_1: PLATE, DANGER, KEEP OUT UNDER WORK EQUIPMENT, Field_2: DZAA0001- | 2 | Request quote | |||
| 23 | MARK, LIFT POINT AND TIE DOWN POINT MARKSField_1: MARK, LIFT POINT AND TIE DOWN POINT MARKS, Field_2: DZAA0001- | 4 | Request quote | |||
| 24 | PLATE, SYMBOL, FUEL FILLERField_1: PLATE, SYMBOL, FUEL FILLER, Field_2: DZAA0001- | 1 | Request quote | |||
| 25 | PLATE, WARNING, EXPLOSION HAZARD, PPC ACCUMULATORField_1: PLATE, WARNING, EXPLOSION HAZARD, PPC ACCUMULATOR, Field_2: DZAA0001- | 1 | Request quote | |||
| 26 | PLATE, WARNING, EXPLOSION HAZARD, BRAKE ACCUMULATORField_1: PLATE, WARNING, EXPLOSION HAZARD, BRAKE ACCUMULATOR, Field_2: DZAA0001- | 2 | Request quote | |||
| 27 | PLATE, NAME (LIMITED SUPPLY)Field_1: PLATE, NAME (LIMITED SUPPLY), Field_2: DZAA0148- | 1 | Request quote | |||
| 30 | PLATE, NAME (LIMITED SUPPLY)Field_1: PLATE, NAME (LIMITED SUPPLY), Field_2: DZAA0001-DZAA0147, code: B1 | 1 | Request quote | |||
| 28 | SCREWField_1: SCREW, Field_2: DZAA0001- | 4 | Request quote | |||
| 29 | PLATE, CAUTION, ROTATING OBJECTField_1: PLATE, CAUTION, ROTATING OBJECT, Field_2: DZAA0001- | 1 | Request quote | |||
| 30 | PLATE, NOTICE, PREFILTERField_1: PLATE, NOTICE, PREFILTER, Field_2: DZAA0001- | 1 | Request quote | |||
| 31 | PLATE, REFLECTORField_1: PLATE, REFLECTOR, Field_2: DZAA0001- | 2 | Request quote | |||
| 32 | PLATE, NOTICE, COOLANTField_1: PLATE, NOTICE, COOLANT, Field_2: DZAA0001- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
PLATE, REMOTE GREASE, CYLINDER
PLATE, REMOTE GREASE, REAR AXLE
PLATE, RADIATOR DRAIN
PLATE, ENGINE OIL DRAIN
PLATE, PARKING BRAKE EMERGENCY RELEASE SWITCH
PLATE, PARKING BRAKE EMERGENCY RELEASE METHOD
Using Komatsu WA380Z-6 Decal (English) (Exterior) (|U00450) Parts
Use the Komatsu WA380Z-6 Decal (English) (Exterior) (|U00450) Parts listing to identify aftermarket replacement parts within the u0 [marks and plates] section. This wheel loader application is listed for machine serial DZAA0001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 29 listed part occurrences, including plate assembly (reference 426-93-21570), plate, warning, high temperature (reference 09653-A0641) and plate, warning, battery cables (reference 09808-A1201). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
