Komatsu WA380Z-6 Wheel Loader Rops Plate (|U00458) Parts
Komatsu WA380Z-6 rops plate (|u00458) parts for machine serial DZAA0001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: U0 [Marks And Plates] / Rops Plate (|U00458).
Checking current purchase options...

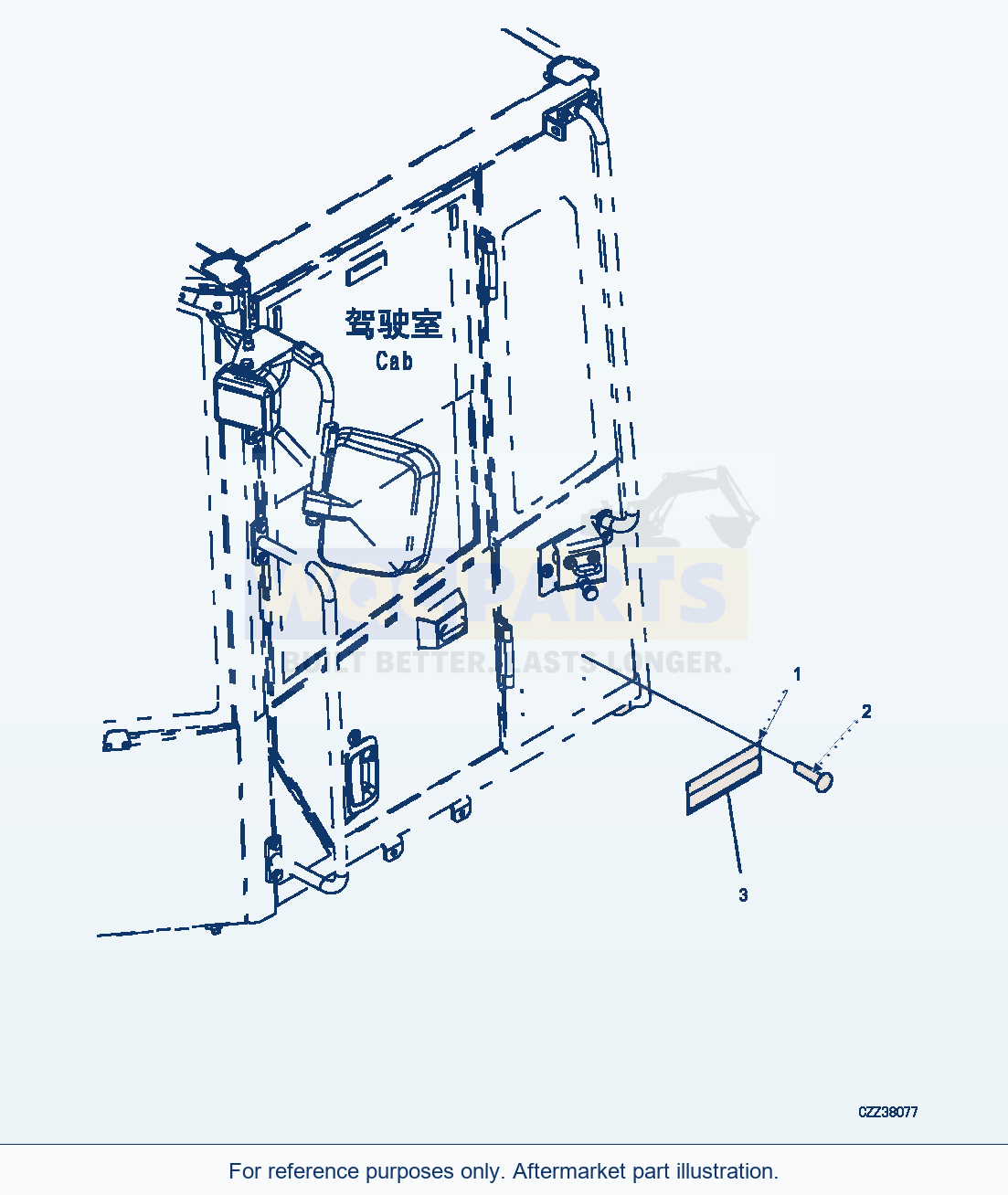

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 4 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, NAME, ROPS/FOPS (LIMITED SUPPLY)Field_1: PLATE, NAME, ROPS/FOPS (LIMITED SUPPLY), Field_2: .- | 1 | Request quote | |||
| 2 | PLATE, NAME, ROPS/FOPS (LIMITED SUPPLY)Field_1: PLATE, NAME, ROPS/FOPS (LIMITED SUPPLY), Field_2: DZAA0193-., code: B1 | 1 | Request quote | |||
| 2 | RIVETField_1: RIVET, Field_2: DZAA0193- | 4 | Request quote | |||
| 3 | PLATEField_1: PLATE, Field_2: .- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380Z-6 Wheel Loader Rops Plate (|U00458) Parts
Use the Komatsu WA380Z-6 Wheel Loader Rops Plate (|U00458) Parts listing to identify aftermarket replacement parts within the u0 [marks and plates] section. This wheel loader application is listed for machine serial DZAA0001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 4 listed part occurrences, including plate, name, rops/fops (limited supply) (reference 09620-A2001), plate, name, rops/fops (limited supply) (reference 09620-A2000) and rivet (reference 205-00-72430). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
