Komatsu WA470-1 Air Piping (Wet Tank To Dry Tank)(#10001-10054) Parts
Komatsu WA470-1 air piping (wet tank to dry tank)(#10001-10054) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Drive Shaft, Differential And Wheels / Air Piping (Wet Tank To Dry Tank)(#10001-10054).
Checking current purchase options...

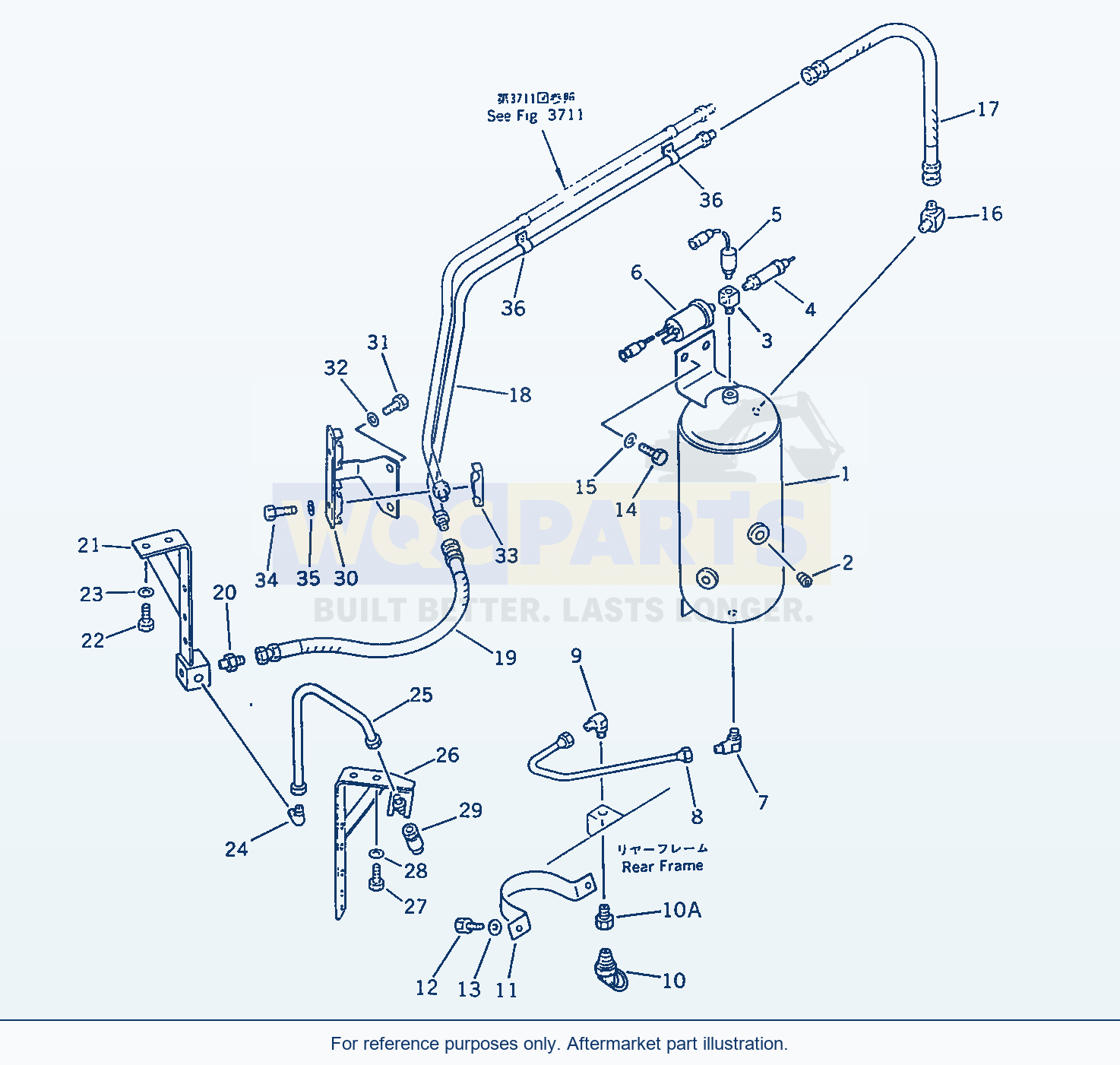

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 37 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TANK,WET AIRSN: 10001-@ | 1 | Request quote | |||
| 2 | PLUGSN: 10001-@ | 1 | Request quote | |||
| 3 | JOINTSN: 10001-@ | 1 | Request quote | |||
| 4 | VALVE,SAFETYSN: 10001-@ | 1 | View product ↗ | |||
| 5 | SENSOR,PRESSURESN: 10001-@ | 1 | Request quote | |||
| 6 | SENSOR,AIR PRESSURESN: 10001-@ | 1 | Request quote | |||
| 7 | ELBOWSN: 10001-@ | 1 | Request quote | |||
| 8 | TUBESN: 10001-@ | 1 | Request quote | |||
| 9 | ELBOWSN: 10001-@ | 1 | Request quote | |||
| 10 | VALVESN: 10001-@ | 1 | View product ↗ | |||
| 10A | CONNECTORSN: 10001-@ | 1 | Request quote | |||
| 11 | COVERSN: 10001-@ | 1 | Request quote | |||
| 12 | BOLTSN: 10001-@ | 2 | Request quote | |||
| 13 | WASHERSN: 10001-@ | 2 | View product ↗ | |||
| 14 | BOLTSN: 10001-@ | 3 | Request quote | |||
| 15 | WASHERSN: 10001-@ | 3 | View product ↗ | |||
| 16 | ELBOWSN: 10001-10054 | 1 | Request quote | |||
| 17 | HOSESN: 10001-10054 | 1 | Request quote | |||
| 18 | TUBESN: 10001-10054 | 1 | Request quote | |||
| 19 | HOSESN: 10001-@ | 1 | Request quote | |||
| 20 | CONNECTORSN: 10001-@ | 1 | View product ↗ | |||
| 21 | BRACKETSN: 10001-10054 | 1 | Request quote | |||
| 22 | BOLTSN: 10001-@ | 2 | Request quote | |||
| 23 | WASHERSN: 10001-@ | 2 | View product ↗ | |||
| 24 | ELBOWSN: 10001-10054 | 1 | View product ↗ | |||
| 25 | TUBESN: 10001-10054 | 1 | Request quote | |||
| 26 | BRACKETSN: 10001-@ | 1 | Request quote | |||
| 27 | BOLTSN: 10001-@ | 2 | Request quote | |||
| 28 | WASHERSN: 10001-@ | 2 | View product ↗ | |||
| 29 | SOCKETSN: 10001-@ | 1 | Request quote | |||
| 30 | BRACKETSN: 10001-@ | 1 | Request quote | |||
| 31 | BOLTSN: 10001-@ | 2 | Request quote | |||
| 32 | WASHERSN: 10001-@ | 2 | View product ↗ | |||
| 33 | CLAMPSN: 10001-@ | 1 | Request quote | |||
| 34 | BOLTSN: 10001-@ | 1 | View product ↗ | |||
| 35 | WASHERSN: 10001-@ | 1 | View product ↗ | |||
| 36 | CLIPSN: 10001-10055 | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-1 Air Piping (Wet Tank To Dry Tank)(#10001-10054) Parts
Use the Komatsu WA470-1 Air Piping (Wet Tank To Dry Tank)(#10001-10054) Parts listing to identify aftermarket replacement parts within the drive shaft, differential and wheels section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 37 listed part occurrences, including tank,wet air (reference 421-35-13181), plug (reference 07043-50415) and joint (reference 421-35-13230). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
