Komatsu WA470-1 Wheel Loader Water Pump And Mounting Parts
Komatsu WA470-1 water pump and mounting parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D125-1Z S/N 21431-UP / Engine Cooling System / Water Pump And Mounting.
Checking current purchase options...

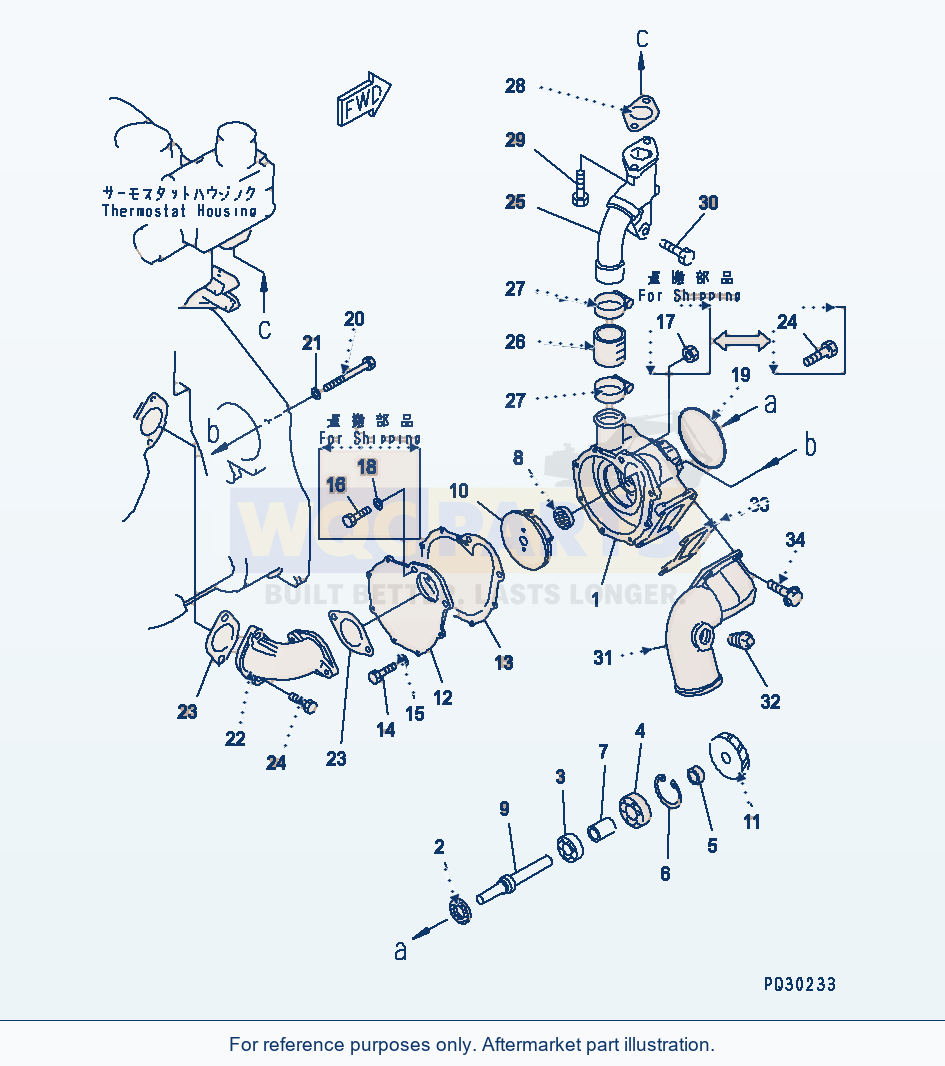

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 35 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | WATER PUMP ASS'YSN: 21431-UP | 1 | Request quote | |||
| 2 | SHAFTSN: 21431-UP | 1 | View product ↗ | |||
| 3 | SEAL (K6)SN: 21431-UP | 1 | View product ↗ | |||
| 4 | BEARING,BALLSN: 21431-UP | 1 | View product ↗ | |||
| 5 | SPACERSN: 21431-UP | 1 | Request quote | |||
| 6 | BEARING,BALLSN: 21431-UP | 1 | View product ↗ | |||
| 7 | RING,SNAPSN: 21431-UP | 1 | View product ↗ | |||
| 8 | SPACERSN: 21431-UP | 1 | Request quote | |||
| 9 | GEARSN: 21431-UP | 1 | Request quote | |||
| 10 | SEAL, WATER (K6)SN: 21431-UP | 1 | View product ↗ | |||
| 11 | IMPELLERSN: 21431-UP | 1 | Request quote | |||
| 12 | COVERSN: 21431-UP | 1 | Request quote | |||
| 13 | GASKET (K6)SN: 21431-UP | 1 | View product ↗ | |||
| 14 | BOLTSN: 21431-UP | 6 | View product ↗ | |||
| 15 | WASHER,SPRINGSN: 21431-UP | 6 | View product ↗ | |||
| 16 | BOLT,(FOR SHIPPING)SN: 21431-UP | 2 | View product ↗ | |||
| 17 | NUT,(FOR SHIPPING)SN: 21431-UP | 2 | View product ↗ | |||
| 18 | WASHER,(FOR SHIPPING)SN: 21431-UP | 2 | View product ↗ | |||
| 19 | O-RING (K6)SN: 21431-UP | 1 | View product ↗ | |||
| 20 | BOLTSN: 21431-UP | 3 | Request quote | |||
| 21 | WASHERSN: 21431-UP | 3 | View product ↗ | |||
| 22 | CONNECTORSN: 21431-UP | 1 | Request quote | |||
| 23 | GASKET (K6)SN: 21431-UP | 2 | View product ↗ | |||
| 24 | BOLTSN: 21431-UP | 2 | Request quote | |||
| 25 | BOLTSN: 21431-UP | 2 | Request quote | |||
| 26 | CONNECTORSN: 21431-UP | 1 | Request quote | |||
| 27 | HOSESN: 21431-UP | 1 | Request quote | |||
| 28 | CLAMPSN: 21431-UP | 2 | View product ↗ | |||
| 29 | GASKET (K1)SN: 21431-UP | 1 | View product ↗ | |||
| 30 | BOLTSN: 21431-UP | 2 | Request quote | |||
| 31 | BOLTSN: 21431-UP | 2 | Request quote | |||
| 32 | CONNECTORSN: 21431-UP | 1 | Request quote | |||
| 33 | PLUGSN: 21431-UP | 1 | Request quote | |||
| 34 | GASKET (K6)SN: 21431-UP | 1 | View product ↗ | |||
| 35 | BOLTSN: 21431-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: BODY | QTY: 1 | OPTIONS: SN: 21431-UP
Using Komatsu WA470-1 Wheel Loader Water Pump And Mounting Parts
Use the Komatsu WA470-1 Wheel Loader Water Pump And Mounting Parts listing to identify aftermarket replacement parts within the engine cooling system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 35 listed part occurrences, including water pump ass'y (reference 6151-61-1101), shaft (reference 6151-61-1310) and bearing,ball (reference 06030-06004). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D125-1Z (engine serial 21431-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
When comparing cooling-system parts, check the engine designation and any fan, pump or connection options recorded in the selected diagram. A matching machine family alone does not establish the cooling arrangement.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
