Komatsu WA470-1 Wheel Loader Fuel Filter And Piping Parts
Komatsu WA470-1 fuel filter and piping parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D125-1Z S/N 21431-UP / Engine Fuel System / Fuel Filter And Piping.
Checking current purchase options...

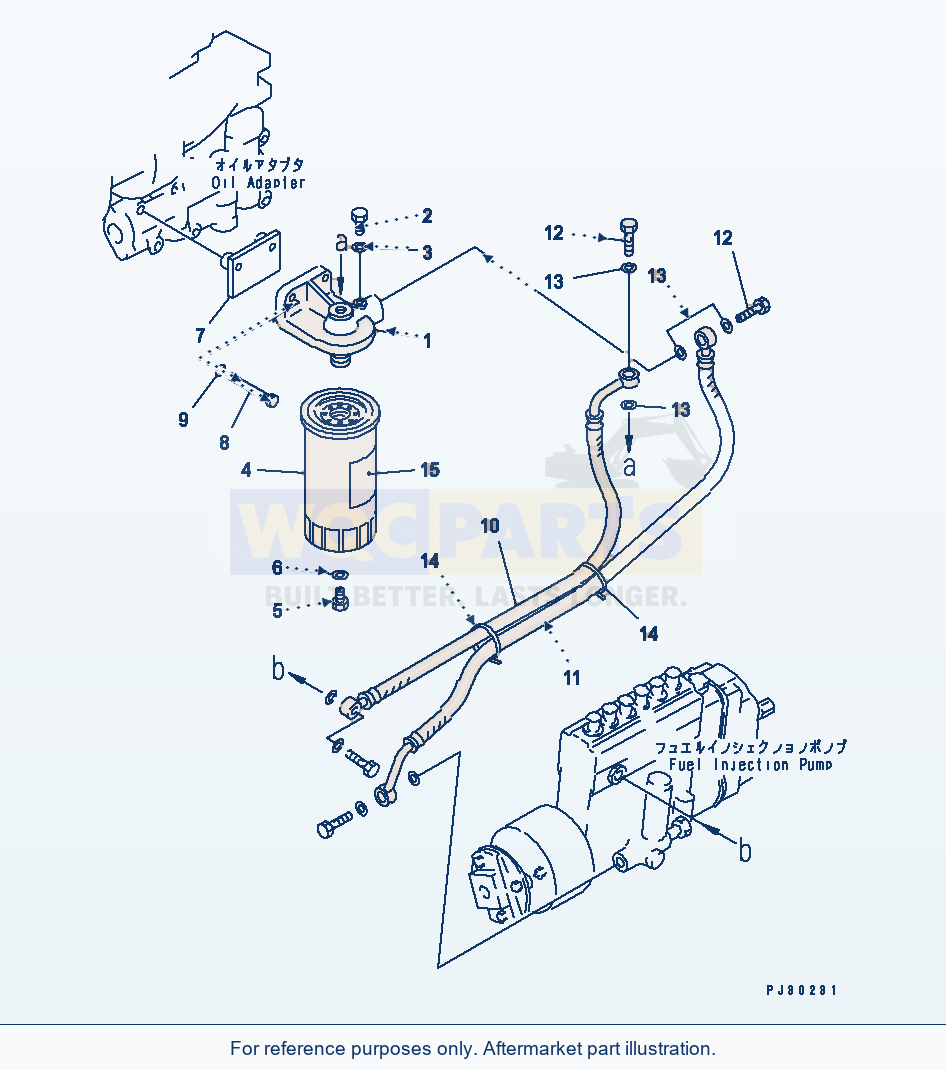

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 21 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | FUEL FILTER ASS'YSN: 21431-UP | 1 | Request quote | |||
| 1 | BRACKETSN: 21431-UP | 1 | Request quote | |||
| 2 | PLUGSN: 21431-UP | 1 | Request quote | |||
| 3 | GASKETSN: 21431-UP | 1 | View product ↗ | |||
| 4 | CARTRIDGESN: 21431-UP | 1 | Request quote | |||
| 5 | PLUGSN: 21431-UP | 1 | Request quote | |||
| 6 | GASKETSN: 21431-UP | 1 | View product ↗ | |||
| 7 | BRACKETSN: 21431-UP | 1 | Request quote | |||
| 8 | BOLTSN: 21431-UP | 2 | View product ↗ | |||
| 9 | WASHERSN: 21431-UP | 2 | View product ↗ | |||
| 10 | HOSESN: 21431-UP | 1 | Request quote | |||
| 11 | HOSESN: 21431-UP | 1 | Request quote | |||
| 12 | BOLT,JOINTSN: 21431-UP | 2 | Request quote | |||
| 13 | GASKET (K2)SN: 21431-UP | 4 | View product ↗ | |||
| 14 | BANDSN: 21431-UP | 2 | View product ↗ | |||
| 15 | PLATE, CAUTION,(INDONESIAN)SN: 21431-UP | 1 | Request quote | |||
| 15 | PLATE, CAUTION,(CHINESE)SN: 21431-UP | 1 | Request quote | |||
| 15 | PLATE, CAUTION,(ENGLISH)SN: 21431-UP | 1 | Request quote | |||
| 15 | PLATE, CAUTION,(GERMAN)SN: 21431-UP | 1 | Request quote | |||
| 13 | PLATE, CAUTION,(FRENCH)SN: 21431-UP | 1 | Request quote | |||
| 15 | PLATE, CAUTION,(ARABIC)SN: 21431-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-1 Wheel Loader Fuel Filter And Piping Parts
Use the Komatsu WA470-1 Wheel Loader Fuel Filter And Piping Parts listing to identify aftermarket replacement parts within the engine fuel system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 21 listed part occurrences, including fuel filter ass'y (reference 6138-71-6100), bracket (reference 6138-71-6110) and plug (reference 6110-73-6231). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D125-1Z (engine serial 21431-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
