Komatsu WA470-1 Wheel Loader Fuel Injection Pump And Piping Parts
Komatsu WA470-1 fuel injection pump and piping parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D125-1Z S/N 21431-UP / Engine Fuel System / Fuel Injection Pump And Piping.
Checking current purchase options...

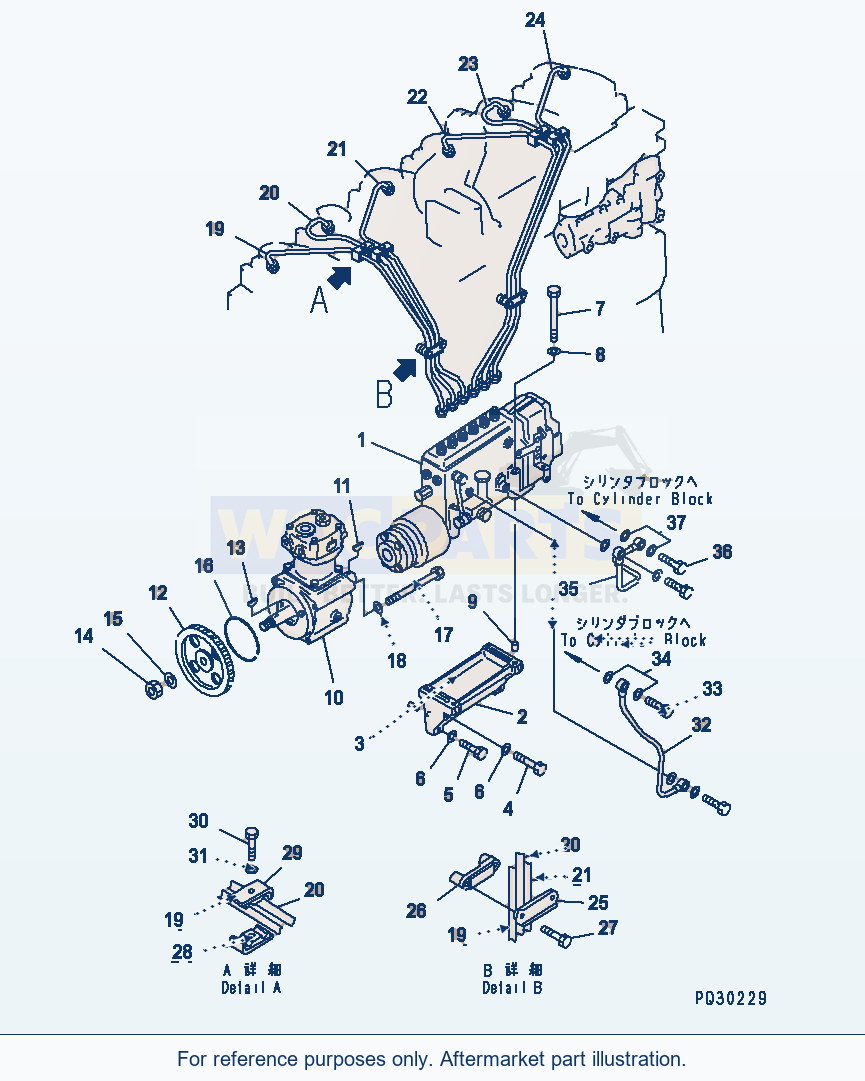

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 41 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | INJECTION PUMP A.SN: 38630-UP | 1 | Request quote | |||
| 1 | INJECTION PUMP A.,(SEE FIG.0451)SN: 23333-38629 | The part and the part specified in the line immediately above are interchangeable. | 1 | Request quote | |||
| 1 | INJECTION PUMP A.,(SEE FIG.0451)SN: 21431-23332 | 1 | Request quote | |||
| 2 | BRACKETSN: 21431-UP | 1 | Request quote | |||
| 3 | PIN,DOWELSN: 21431-UP | 2 | View product ↗ | |||
| 4 | BOLTSN: 21431-UP | 2 | View product ↗ | |||
| 5 | BOLTSN: 21431-UP | 2 | Request quote | |||
| 6 | WASHERSN: 21431-UP | 4 | View product ↗ | |||
| 7 | BOLTSN: 21431-UP | 4 | Request quote | |||
| 8 | WASHERSN: 21431-UP | 4 | View product ↗ | |||
| 9 | PINSN: 21431-UP | 2 | Request quote | |||
| 10 | AIR COMPRESSOR A.,(SEE FIG.0711A)SN: 43707-UP | 1 | View product ↗ | |||
| 10 | AIR COMPRESSOR A.,(SEE FIG.0711A)SN: 41875-43706 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 10 | AIR COMPRESSOR A.,(SEE FIG.0711)SN: 21431-41874 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 11 | KEYSN: 21431-UP | 1 | Request quote | |||
| 12 | GEARSN: 21431-UP | 1 | Request quote | |||
| 13 | KEYSN: 21431-UP | 1 | View product ↗ | |||
| 14 | NUTSN: 21431-UP | 1 | Request quote | |||
| 15 | WASHERSN: 21431-UP | 1 | Request quote | |||
| 16 | O-RING (K8)SN: 21431-UP | 1 | View product ↗ | |||
| 17 | BOLTSN: 21431-UP | 4 | Request quote | |||
| 18 | WASHERSN: 21431-UP | 4 | View product ↗ | |||
| 19 | TUBE,INJECTION, NO.1SN: 21431-UP | 1 | View product ↗ | |||
| 20 | TUBE,INJECTION, NO.2SN: 21431-UP | 1 | View product ↗ | |||
| 21 | TUBE,INJECTION, NO.3SN: 21431-UP | 1 | View product ↗ | |||
| 22 | TUBE,INJECTION, NO.4SN: 21431-UP | 1 | View product ↗ | |||
| 23 | TUBE,INJECTION, NO.5SN: 21431-UP | 1 | View product ↗ | |||
| 24 | TUBE,INJECTION, NO.6SN: 21431-UP | 1 | View product ↗ | |||
| 25 | CLAMPSN: 21431-UP | 2 | Request quote | |||
| 26 | CLAMPSN: 21431-UP | 2 | Request quote | |||
| 27 | BOLTSN: 21431-UP | 4 | Request quote | |||
| 28 | CLIP, WITH THREADSN: 21431-UP | 4 | Request quote | |||
| 29 | CLIPSN: 21431-UP | 4 | Request quote | |||
| 30 | BOLTSN: 21431-UP | 4 | View product ↗ | |||
| 31 | WASHER,SPRINGSN: 21431-UP | 4 | Request quote | |||
| 32 | TUBESN: 21431-UP | 1 | Request quote | |||
| 33 | BOLT,JOINTSN: 21431-UP | 1 | View product ↗ | |||
| 34 | GASKET (K2)SN: 21431-UP | 2 | View product ↗ | |||
| 35 | TUBESN: 21431-UP | 1 | View product ↗ | |||
| 36 | BOLT,JOINTSN: 21431-UP | 1 | Request quote | |||
| 37 | GASKET (K2)SN: 21431-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-1 Wheel Loader Fuel Injection Pump And Piping Parts
Use the Komatsu WA470-1 Wheel Loader Fuel Injection Pump And Piping Parts listing to identify aftermarket replacement parts within the engine fuel system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 41 listed part occurrences, including injection pump a. (reference 6151-71-1450), injection pump a.,(see fig.0451) (reference 6151-71-1151) and injection pump a.,(see fig.0451) (reference 6151-71-1150). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D125-1Z (engine serial 21431-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
