Komatsu WA470-1 Electrical System (Rear Lamp)(#20001-) Parts
Komatsu WA470-1 electrical system (rear lamp)(#20001-) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts And Electrical System / Electrical System (Rear Lamp)(#20001-).
Checking current purchase options...

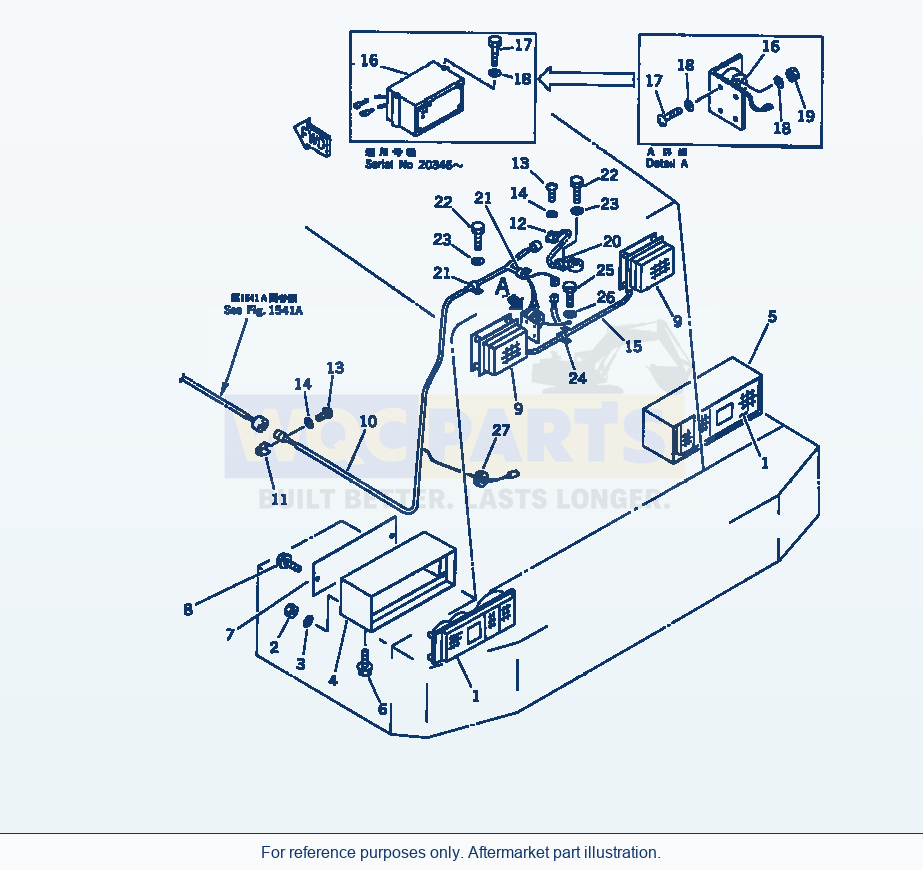

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 38 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | COMBINATION LAMP A.,REAR, L.H.SN: 10001-UP | 1 | Request quote | |||
| 1 | COMBINATION LAMP A.,REAR, R.H.SN: 10001-UP | 1 | Request quote | |||
| 1 | LENS,L.H.SN: 10001-UP | 1 | Request quote | |||
| 1 | LENS,R.H.SN: 10001-UP | 1 | Request quote | |||
| 1 | BULB, 25/10WSN: 10001-UP | 1 | View product ↗ | |||
| 1 | BULB, 25WSN: 10001-UP | 2 | View product ↗ | |||
| 1 | BULB, 3WSN: 10001-UP | 1 | Request quote | |||
| 2 | NUTSN: 10001-UP | 8 | Request quote | |||
| 3 | WASHERSN: 10001-UP | 8 | Request quote | |||
| 4 | BOX,L.H.SN: 20001-UP | 1 | Request quote | |||
| 5 | BOX,R.H.SN: 20001-UP | 1 | Request quote | |||
| 6 | BOLTSN: 20001-UP | 4 | View product ↗ | |||
| 7 | PLATESN: 20001-UP | 2 | Request quote | |||
| 8 | BOLTSN: 20001-UP | 4 | View product ↗ | |||
| 9 | WORK LAMP ASS'YSN: 10001-UP | 2 | Request quote | |||
| 9 | BULBSN: 10001-UP | 1 | Request quote | |||
| 9 | CUSHIONSN: 10001-UP | 4 | Request quote | |||
| 10 | WIRE ASS'YSN: 10001-UP | 1 | Request quote | |||
| 11 | CLIPSN: 10001-UP | 1 | Request quote | |||
| 12 | CLIPSN: 10001-UP | 1 | Request quote | |||
| 13 | SCREWSN: 10001-UP | 2 | Request quote | |||
| 14 | WASHERSN: 10001-UP | 2 | View product ↗ | |||
| 15 | WIRE ASS'YSN: 10001-UP | 1 | Request quote | |||
| 16 | BUZZER,BACK-UPSN: 20099-UP | 1 | Request quote | |||
| 16 | BUZZER,BACK-UPSN: 20001-20098 | 1 | Request quote | |||
| 17 | BOLTSN: 20099-UP | 2 | Request quote | |||
| 17 | SCREWSN: 20001-20098 | 4 | Request quote | |||
| 18 | WASHERSN: 20099-UP | 2 | Request quote | |||
| 18 | WASHERSN: 20001-20098 | 8 | Request quote | |||
| 19 | NUTSN: 20001-20098 | 4 | Request quote | |||
| 20 | CLIPSN: 10001-UP | 1 | Request quote | |||
| 21 | CLIPSN: 20001-UP | 2 | Request quote | |||
| 22 | BOLTSN: 10001-UP | 3 | Request quote | |||
| 23 | WASHERSN: 10001-UP | 3 | View product ↗ | |||
| 24 | CLIPSN: 20001-UP | 1 | Request quote | |||
| 25 | BOLTSN: 20001-UP | 1 | Request quote | |||
| 26 | WASHERSN: 20001-UP | 1 | View product ↗ | |||
| 27 | GROMMETSN: 10001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-1 Electrical System (Rear Lamp)(#20001-) Parts
Use the Komatsu WA470-1 Electrical System (Rear Lamp)(#20001-) Parts listing to identify aftermarket replacement parts within the engine related parts and electrical system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 38 listed part occurrences, including combination lamp a.,rear, l.h. (reference 415-06-13220), combination lamp a.,rear, r.h. (reference 415-06-13210) and lens,l.h. (reference 415-06-13270). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
