Komatsu WA470-1 Wheel Loader Cooling Fan And Mounting(#26750-) Parts
Komatsu WA470-1 cooling fan and mounting(#26750-) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D125-1KK-FW S/N 10001-UP / Engine / Cooling Fan And Mounting(#26750-).
Checking current purchase options...

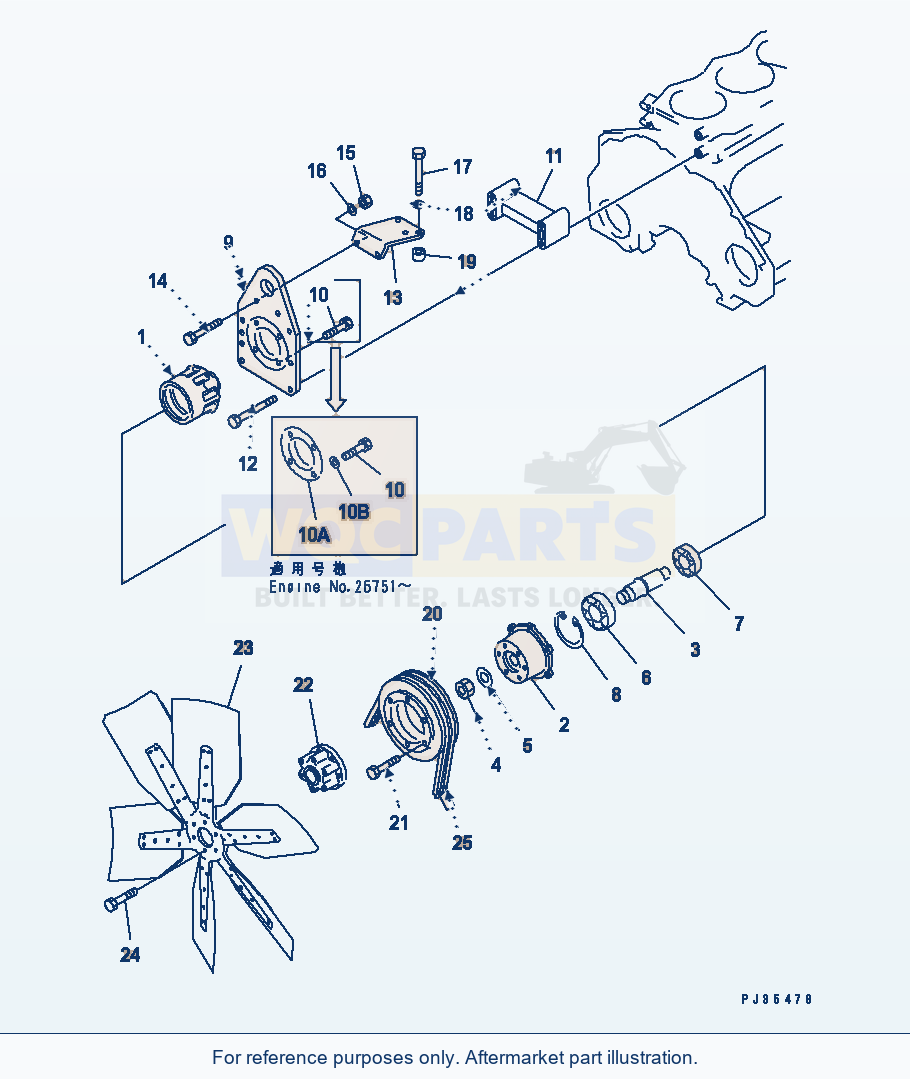

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 30 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | CASE ASS'YSN: 26750-UP | 1 | Request quote | |||
| 1 | CASESN: 26750-UP | 1 | Request quote | |||
| 2 | SHAFTSN: 26750-UP | 1 | View product ↗ | |||
| 3 | BEARING,BALLSN: 26750-UP | 1 | View product ↗ | |||
| 4 | BEARING,BALLSN: 26750-UP | 1 | View product ↗ | |||
| 5 | RING,SNAPSN: 26750-UP | 1 | View product ↗ | |||
| 6 | HUBSN: 26750-UP | 1 | Request quote | |||
| 7 | NUTSN: 26750-UP | 1 | Request quote | |||
| 8 | WASHERSN: 26750-UP | 1 | Request quote | |||
| 9 | PLATESN: 26750-UP | 1 | Request quote | |||
| 10 | BOLTSN: 26750-UP | 4 | Request quote | |||
| 10A | COVERSN: 26751-UP | 1 | Request quote | |||
| 10B | WASHERSN: 26751-UP | 4 | View product ↗ | |||
| 11 | SPACERSN: 26750-UP | 1 | Request quote | |||
| 12 | BOLTSN: 26750-UP | 4 | Request quote | |||
| 13 | BRACKETSN: 26750-UP | 1 | Request quote | |||
| 14 | BOLTSN: 26750-UP | 2 | Request quote | |||
| 15 | NUTSN: 26750-UP | 2 | View product ↗ | |||
| 16 | WASHERSN: 26750-UP | 2 | View product ↗ | |||
| 17 | BOLTSN: 26750-UP | 2 | View product ↗ | |||
| 18 | WASHERSN: 26750-UP | 2 | View product ↗ | |||
| 19 | SPACERSN: 26750-UP | 2 | Request quote | |||
| 20 | PULLEY, HARDENINGSN: 26750-UP | 1 | Request quote | |||
| 20 | PULLEY, HARDENING,(NOISE SUPPRESSION SPEC.)SN: 26750-UP | 1 | Request quote | |||
| 21 | BOLTSN: 26750-UP | 6 | Request quote | |||
| 22 | SPACERSN: 26750-UP | 1 | Request quote | |||
| 23 | FANSN: 26750-UP | 1 | Request quote | |||
| 24 | BOLTSN: 26750-UP | 6 | Request quote | |||
| 25 | V-BELT SETSN: 26750-UP | 1 | View product ↗ | |||
| 25 | V-BELT SET,(NOISE SUPPRESSION SPEC.)SN: 26750-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-1 Wheel Loader Cooling Fan And Mounting(#26750-) Parts
Use the Komatsu WA470-1 Wheel Loader Cooling Fan And Mounting(#26750-) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 30 listed part occurrences, including case ass'y (reference 6151-61-3101), case (reference 6151-61-3152) and shaft (reference 6151-61-3170). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D125-1KK-FW (engine serial 10001-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
