Komatsu WA470-1 Exhaust Brake (Inner Parts)(#84558-) Parts
Komatsu WA470-1 exhaust brake (inner parts)(#84558-) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D125-1KK-FW S/N 10001-UP / Engine / Exhaust Brake (Inner Parts)(#84558-).
Checking current purchase options...

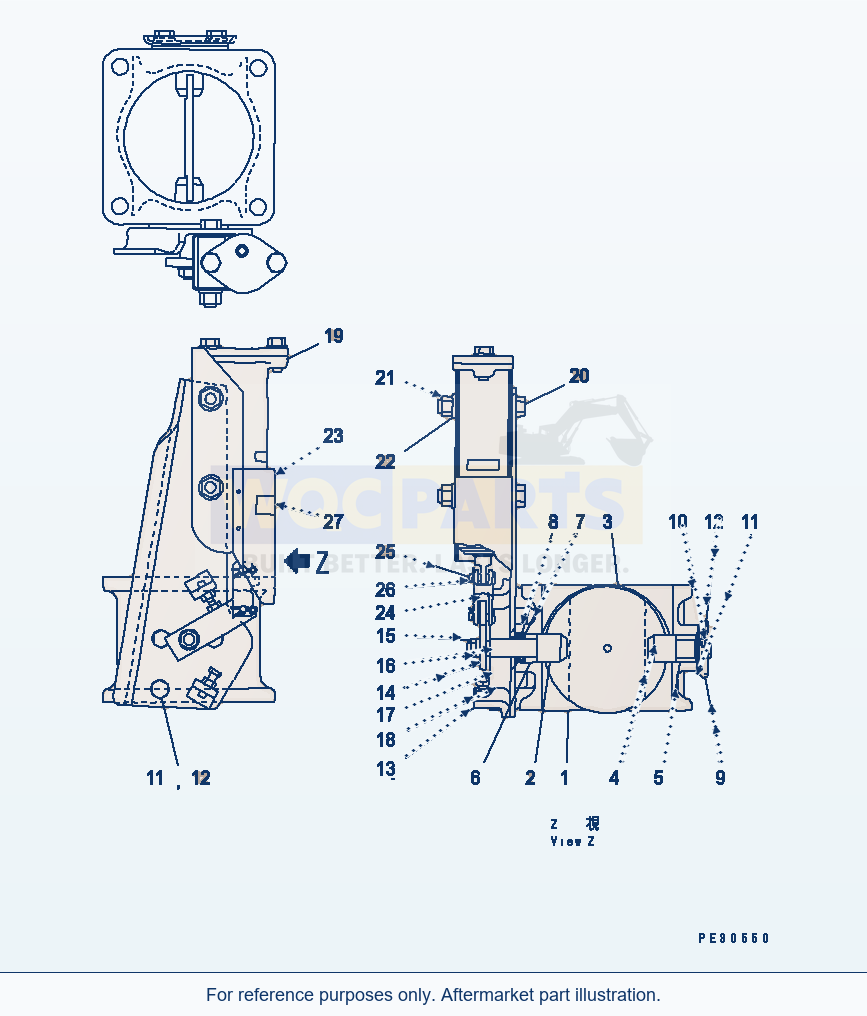

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 24 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | EXHAUST BRAKE ASS'YSN: 84558-UP | 1 | Request quote | |||
| 1 | BRAKE VALVE ASS'YSN: 84558-UP | 1 | Request quote | |||
| 5 | BUSHINGSN: 84558-UP | 1 | Request quote | |||
| 6 | BUSHINGSN: 84558-UP | 1 | Request quote | |||
| 7 | SEALSN: 84558-UP | 2 | Request quote | |||
| 8 | SEALSN: 84558-UP | 2 | Request quote | |||
| 9 | COVERSN: 84558-UP | 1 | Request quote | |||
| 10 | GASKETSN: 84558-UP | 1 | Request quote | |||
| 11 | BOLTSN: 84558-UP | 5 | Request quote | |||
| 12 | WASHERSN: 84558-UP | 5 | Request quote | |||
| 13 | PLATESN: 84558-UP | 1 | Request quote | |||
| 14 | LEVERSN: 84558-UP | 1 | Request quote | |||
| 15 | NUTSN: 84558-UP | 1 | Request quote | |||
| 16 | WASHERSN: 84558-UP | 1 | Request quote | |||
| 17 | BOLTSN: 84558-UP | 2 | Request quote | |||
| 18 | NUTSN: 84558-UP | 2 | Request quote | |||
| 19 | CYLINDER ASS'YSN: 84558-UP | 1 | Request quote | |||
| 20 | BOLT,WITH WASHERSN: 84558-UP | 2 | Request quote | |||
| 21 | NUTSN: 84558-UP | 2 | Request quote | |||
| 22 | WASHERSN: 84558-UP | 2 | Request quote | |||
| 23 | INSULATORSN: 84558-UP | 1 | Request quote | |||
| 24 | CLEVISSN: 84558-UP | 1 | Request quote | |||
| 25 | PINSN: 84558-UP | 2 | Request quote | |||
| 26 | PINSN: 84558-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: BODY | QTY: 1 | OPTIONS: SN: 84558-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: SPINDLE | QTY: 1 | OPTIONS: SN: 84558-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: VALVE | QTY: 1 | OPTIONS: SN: 84558-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: SPINDLE | QTY: 1 | OPTIONS: SN: 84558-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 27 | Description: LABEL | QTY: 1 | OPTIONS: SN: 84558-UP
Using Komatsu WA470-1 Exhaust Brake (Inner Parts)(#84558-) Parts
Use the Komatsu WA470-1 Exhaust Brake (Inner Parts)(#84558-) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 24 listed part occurrences, including exhaust brake ass'y (reference 6151-11-5951), brake valve ass'y (reference MY281-02440) and bushing (reference MY1261-0146). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D125-1KK-FW (engine serial 10001-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
