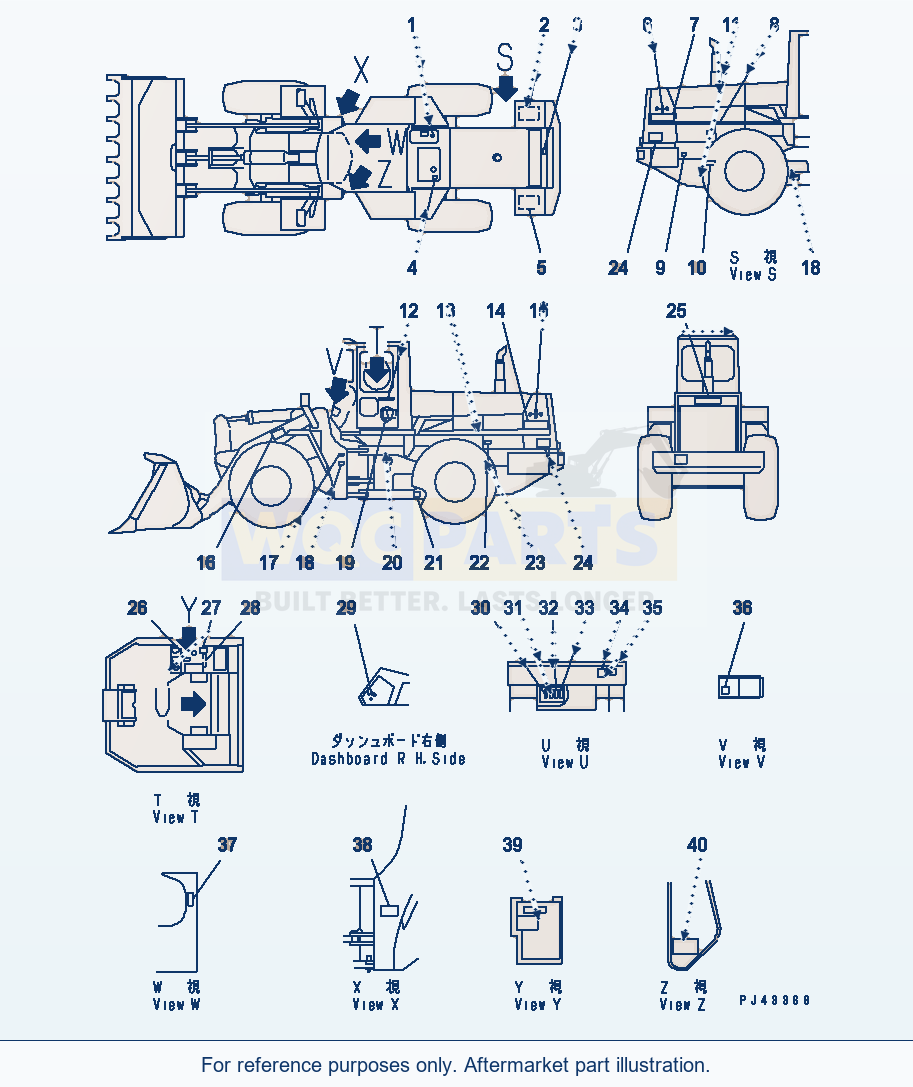

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 42 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, CAUTION,BRAKE OILSN: 10001-19999 | 1 | Request quote | |||
| 2 | PLATE, CAUTION,BATTERYSN: 10001-@ | 1 | Request quote | |||
| 3 | PLATE, SAFETY,RADIATOR CAPSN: 10001-@ | 1 | Request quote | |||
| 4 | PLATE, SAFETY,HYDRAULIC TANKSN: 10001-@ | 1 | Request quote | |||
| 5 | PLATE, CAUTION,BATTERYSN: 10001-@ | 1 | Request quote | |||
| 6 | PLATE, MARK,SYMBOLSN: 10001-@ | 1 | Request quote | |||
| 7 | PLATE, MARK,WA470SN: 10001-@ | 1 | Request quote | |||
| 8 | PLATE, STRIPESN: 10001-@ | 1 | Request quote | |||
| 9 | PLATE, CAUTION,FUELSN: 10001-@ | 1 | Request quote | |||
| 10 | PLATE, CAUTION,ENGINE OIL DRAINSN: 10001-@ | 1 | Request quote | |||
| 11 | PLATE, SAFETY,FANSN: 10001-@ | 1 | Request quote | |||
| 12 | PLATE, MARK,KOMATSUSN: 10001-@ | 2 | Request quote | |||
| 13 | PLATE, STRIPESN: 10001-@ | 1 | Request quote | |||
| 14 | PLATE, MARK,WA470SN: 10001-@ | 1 | Request quote | |||
| 15 | PLATE, MARK,SYMBOLSN: 10001-@ | 1 | Request quote | |||
| 16 | PLATE, CAUTIONSN: 10001-19999 | 2 | Request quote | |||
| 17 | PLATE, CAUTION,KEEP OUTSN: 10001-@ | 2 | Request quote | |||
| 18 | PLATE, SAFETY,AIR TANK, DRAINSN: 10001-@ | 2 | Request quote | |||
| 19 | CHART, OILSN: 10001-19999 | 1 | Request quote | |||
| 20 | PLATE, CAUTION,TRANSMISSION OIL TEMPERATURESN: 10001-@ | 1 | Request quote | |||
| 21 | PLATE, CAUTION,FRAME LOCKSN: 10001-@ | 1 | Request quote | |||
| 22 | PLATE, SAFETY,FANSN: 10001-19999 | 1 | Request quote | |||
| 23 | PLATE, CAUTION,RADIATOR WATER DRAINSN: 10001-@ | 1 | Request quote | |||
| 24 | PLATE, CAUTIONSN: 10001-19999 | 2 | Request quote | |||
| 25 | PLATE, MARK,KOMATSUSN: 10001-@ | 1 | Request quote | |||
| 26 | PLATE, OPERATING,LEVER LOCKSN: 10001-@ | 1 | Request quote | |||
| 27 | PLATE, OPERATING,BUCKET CONTROL LEVERSN: 10001-@ | 1 | Request quote | |||
| 28 | PLATE, OPERATING,RELAYSN: 10001-19999 | 1 | Request quote | |||
| 29 | PLATE, OPERATING,STARTING SWITCHSN: 10001-@ | 1 | Request quote | |||
| 30 | PLATE, OPERATING,BREAKERSN: 10001-19999 | 1 | Request quote | |||
| 31 | PLATE, SAFETY,BREAKERSN: 10001-19999 | 1 | Request quote | |||
| 32 | PLATE, CAUTION,BREAKERSN: 10001-19999 | 1 | Request quote | |||
| 33 | PLATE, CAUTION,BREAKERSN: 10001-19999 | 1 | Request quote | |||
| 34 | PLATE, SAFETY,STARTING AND AFTER OPERATINGSN: 10001-@ | 1 | Request quote | |||
| 35 | PLATE, CAUTION,STARTING AND INSPECTIONSN: 10001-@ | 1 | Request quote | |||
| 36 | PLATE, CAUTION,TRANSMISSION OIL TEMPERATURESN: 10001-@ | 1 | Request quote | |||
| 37 | PLATE, OPERATING,P.O.C. PIPINGSN: 10001-19999 | 1 | Request quote | |||
| 38 | PLATE, NAME,(LIMITED SUPPLY)SN: 10001-@ | 1 | Request quote | |||
| 38 | SCREWSN: 10001-@ | 4 | Request quote | |||
| 39 | PLATE, OPERATING,PARKING BRAKESN: 10152-19999 | 1 | Request quote | |||
| 39 | PLATE, OPERATING,PARKING BRAKESN: 10001-10151 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 40 | PLATE, OPERATING,MONITOR PANELSN: 10001-19999 | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
