Komatsu WA470-1 Wheel Loader Diverter Valve(#10001-19999) Parts
Komatsu WA470-1 diverter valve(#10001-19999) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Steering And Control Systems / Diverter Valve(#10001-19999).
Checking current purchase options...

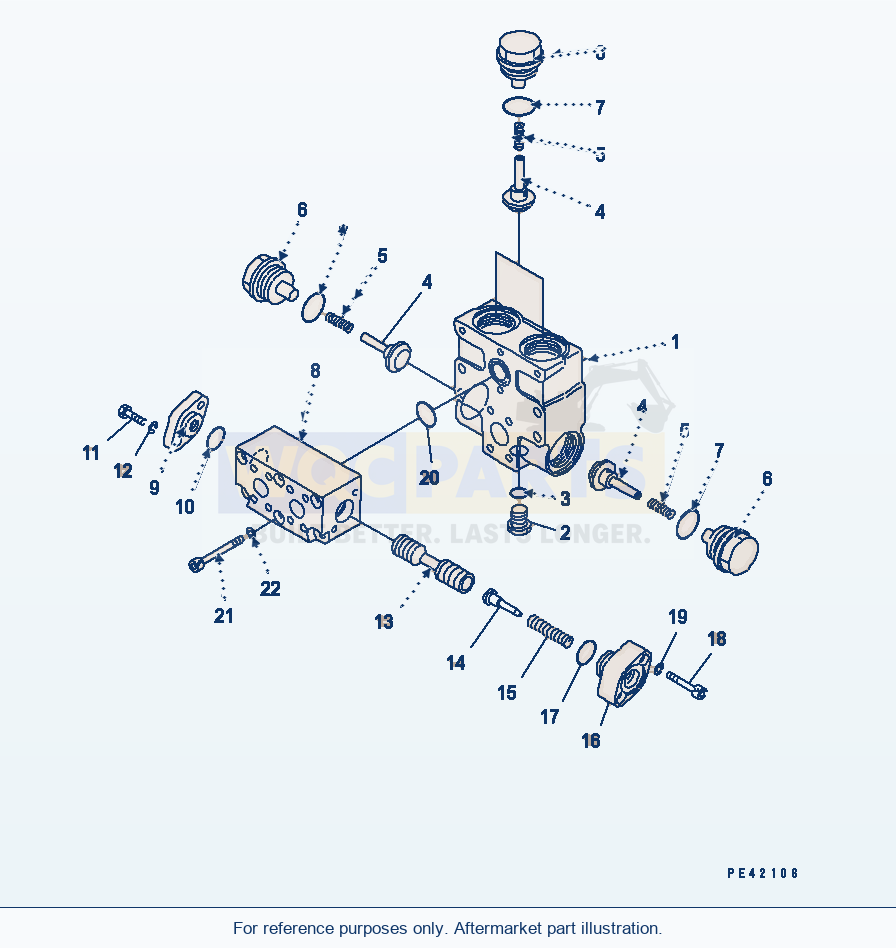

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 20 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | DIVIDER VALVE ASS'YSN: 10001-19999 | 1 | Request quote | |||
| 2 | PLUGSN: 10001-19999 | 1 | View product ↗ | |||
| 3 | O-RINGSN: 10001-19999 | 1 | View product ↗ | |||
| 4 | POPPETSN: 10001-19999 | 4 | Request quote | |||
| 5 | SPRINGSN: 10001-19999 | 4 | Request quote | |||
| 6 | PLUGSN: 10001-19999 | 4 | Request quote | |||
| 7 | O-RINGSN: 10001-19999 | 4 | View product ↗ | |||
| 9 | COVERSN: 10001-19999 | 1 | Request quote | |||
| 10 | O-RINGSN: 10001-19999 | 1 | Request quote | |||
| 11 | BOLTSN: 10001-19999 | 2 | Request quote | |||
| 12 | WASHER,SPRINGSN: 10001-19999 | 2 | View product ↗ | |||
| 14 | RETAINERSN: 10001-19999 | 1 | Request quote | |||
| 15 | SPRINGSN: 10001-19999 | 1 | Request quote | |||
| 16 | COVERSN: 10001-19999 | 1 | Request quote | |||
| 17 | O-RINGSN: 10001-19999 | 1 | View product ↗ | |||
| 18 | BOLTSN: 10001-19999 | 2 | Request quote | |||
| 19 | WASHER,SPRINGSN: 10001-19999 | 2 | View product ↗ | |||
| 20 | O-RINGSN: 10001-19999 | 1 | Request quote | |||
| 21 | BOLTSN: 10001-19999 | 4 | Request quote | |||
| 22 | WASHER,SPRINGSN: 10001-19999 | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: BODY | QTY: 1 | OPTIONS: SN: 10001-19999
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: BODY | QTY: 1 | OPTIONS: SN: 10001-19999
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: SPOOL | QTY: 1 | OPTIONS: SN: 10001-19999
Using Komatsu WA470-1 Wheel Loader Diverter Valve(#10001-19999) Parts
Use the Komatsu WA470-1 Wheel Loader Diverter Valve(#10001-19999) Parts listing to identify aftermarket replacement parts within the steering and control systems section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 20 listed part occurrences, including divider valve ass'y (reference 421-875-1101), plug (reference 07040-12012) and poppet (reference 421-875-1130). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
