Komatsu WA470-1 Wheel Loader Universal Joint Parts
Komatsu WA470-1 universal joint parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Torque Converter And Transmission / Universal Joint.
Checking current purchase options...

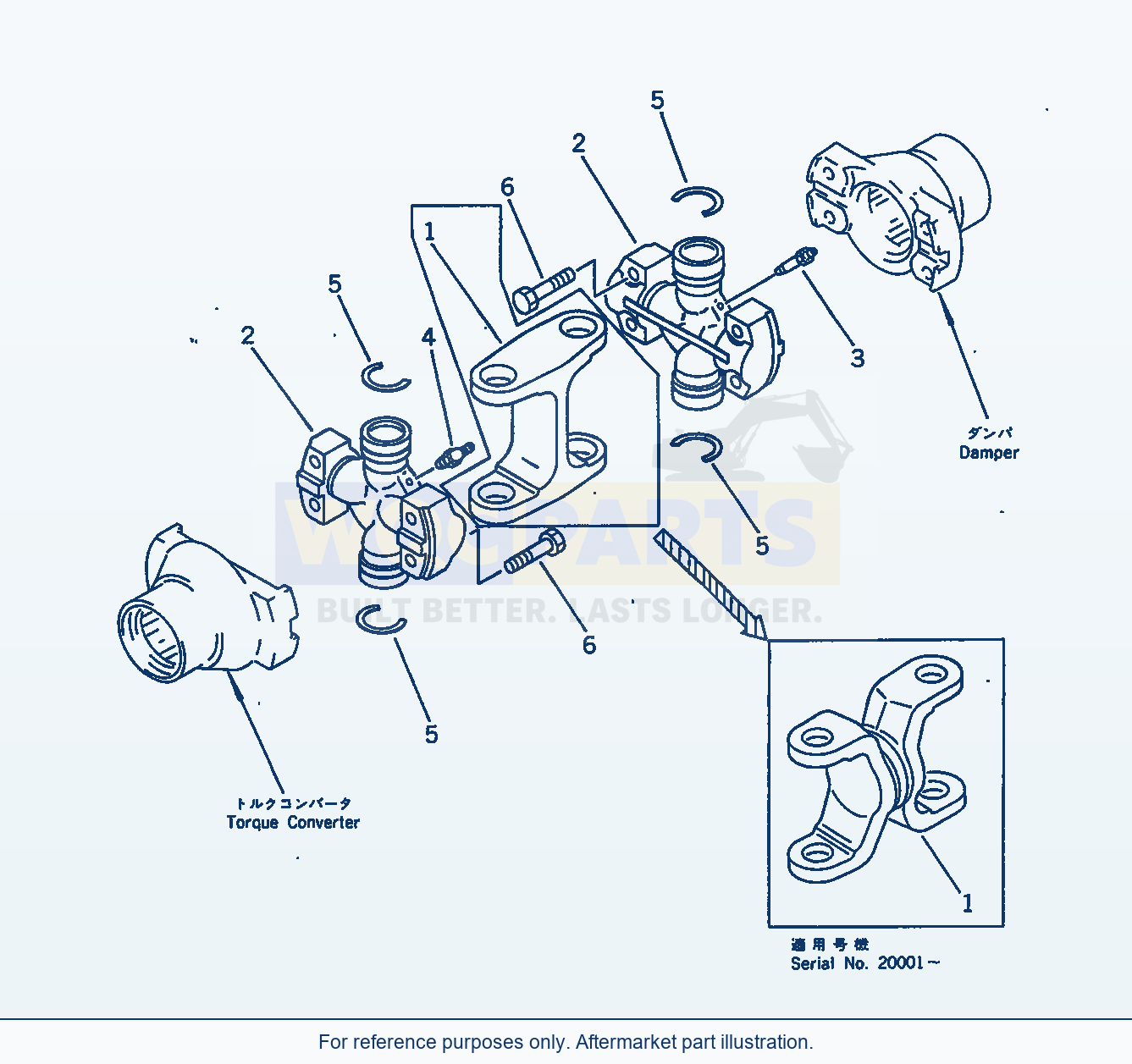

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 11 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | UNIVERSAL JOINT A.SN: 20001-UP | 1 | Request quote | |||
| 1 | UNIVERSAL JOINT A.SN: 10001-19999 | 1 | Request quote | |||
| 2 | UNIVERSAL JOINT A.SN: (10001-10167) | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 1 | YOKESN: 20001-UP | 1 | Request quote | |||
| 1 | YOKESN: 10001-19999 | 1 | Request quote | |||
| 2 | SPIDER ASS'YSN: 10001-UP | 2 | Request quote | |||
| 2 | SPIDER ASS'YSN: (10001-10167) | This shows a discontinued part. The part specified in the above line is supplied instead. | 2 | Request quote | |||
| 3 | FITTING,GREASESN: 10001-UP | 2 | View product ↗ | |||
| 4 | FITTING,GREASESN: 10001-UP | 2 | View product ↗ | |||
| 5 | RING,SNAPSN: 10001-UP | 4 | Request quote | |||
| 6 | BOLTSN: 10001-UP | 8 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-1 Wheel Loader Universal Joint Parts
Use the Komatsu WA470-1 Wheel Loader Universal Joint Parts listing to identify aftermarket replacement parts within the torque converter and transmission section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 11 listed part occurrences, including universal joint a. (reference 421-20-11212), universal joint a. (reference 421-20-11113) and universal joint a. (reference 421-20-11112). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
