Komatsu WA470-1 Wheel Loader Loader Pump Parts
Komatsu WA470-1 loader pump parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Work Equipment Control System / Loader Pump.
Checking current purchase options...

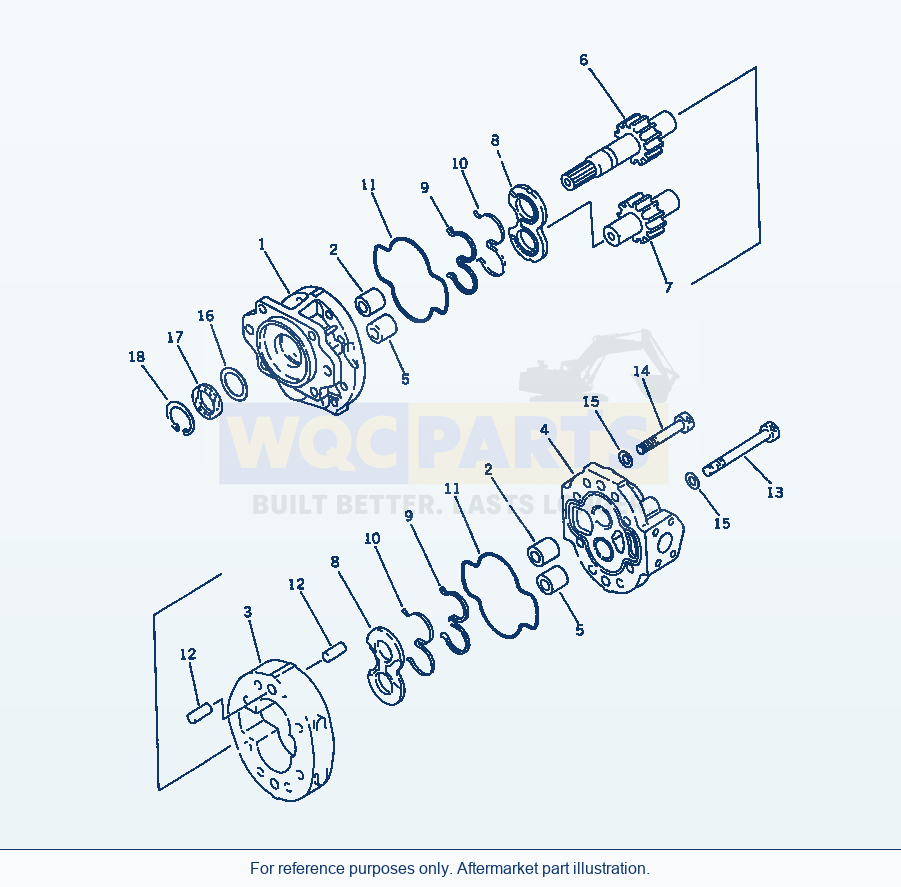

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 24 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | PUMP ASS'Y,(SAR112)SN: 20091-UP | 1 | View product ↗ | |||
| 1 | PUMP ASS'Y,(SAR112)SN: 10001-20090 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 1 | BRACKETSN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 1 | Request quote | |||
| 1 | BUSHINGSN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 2 | Request quote | |||
| 2 | CASE,GEARSN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 1 | Request quote | |||
| 3 | COVERSN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 1 | Request quote | |||
| 3 | BUSHINGSN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 2 | Request quote | |||
| 4 | GEAR,DRIVESN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 1 | Request quote | |||
| 5 | GEAR,DRIVENSN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 1 | Request quote | |||
| 6 | PLATE,SIDESN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 2 | Request quote | |||
| 7 | SEAL,SEALSN: 20091-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 2 | View product ↗ | |||
| 7 | RING,SEALSN: 10001-20090 | The part specified in the line above can be used instead of this part | 2 | View product ↗ | |||
| 8 | RING,BACK-UPSN: 20091-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 2 | View product ↗ | |||
| 8 | RING,BACK-UPSN: 10001-20090 | The part specified in the line above can be used instead of this part | 2 | View product ↗ | |||
| 9 | O-RINGSN: 20091-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 2 | View product ↗ | |||
| 9 | O-RINGSN: 10001-20090 | The part specified in the line above can be used instead of this part | 2 | View product ↗ | |||
| 10 | PIN,DOWELSN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 4 | View product ↗ | |||
| 11 | BOLTSN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 4 | Request quote | |||
| 12 | BOLTSN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 4 | Request quote | |||
| 13 | WASHERSN: 10001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 8 | Request quote | |||
| 14 | PLATESN: 10001-UP | 1 | Request quote | |||
| 15 | SEAL,OILSN: 20091-UP | 1 | View product ↗ | |||
| 15 | SEAL,OILSN: 10001-20090 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 16 | RING,SNAPSN: 10001-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-1 Wheel Loader Loader Pump Parts
Use the Komatsu WA470-1 Wheel Loader Loader Pump Parts listing to identify aftermarket replacement parts within the work equipment control system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 24 listed part occurrences, including pump ass'y,(sar112) (reference 705-14-41040), pump ass'y,(sar112) (reference 705-14-41010) and bracket (reference 705-17-04021). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
