Komatsu WA470-3 Alternator(50A)(Inner Parts) (|000088) Parts
Komatsu WA470-3 alternator(50a)(inner parts) (|000088) parts for machine serial 25233-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 00[Engine] / Alternator(50A)(Inner Parts) (|000088).
Checking current purchase options...

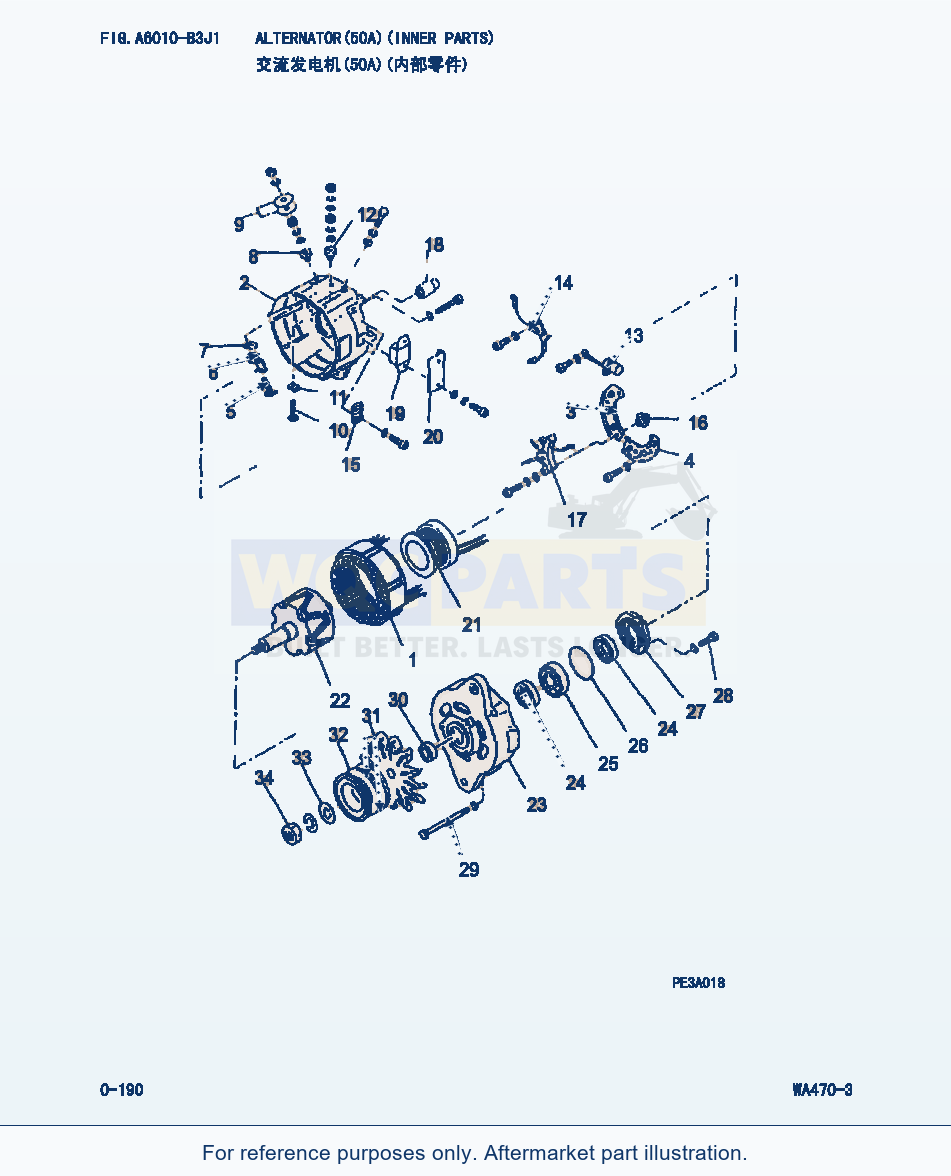

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 38 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1* | ALTERNATOR UNIT(50A)Field_1: 61589-63561 | 1 | Request quote | |||
| 1 | ALTERNATOR A(50A)Field_1: 61589-63561 | 1 | View product ↗ | |||
| 1 | STATOR ASS'YField_1: 61589-63561 | 1 | Request quote | |||
| 4 | REAR BRACKET ASS'YField_1: 61589-63561 | 1 | Request quote | |||
| 2 | BRACKET,REARField_1: 61589-63561 | 1 | Request quote | |||
| 3 | HEAT SINK ASS'Y(+)Field_1: 61589-63561 | 1 | Request quote | |||
| 4 | HEAT SINK ASS'Y(-)Field_1: 61589-63561 | 1 | Request quote | |||
| 5 | BOLTField_1: 61589-63561 | 1 | Request quote | |||
| 6 | SUPPORTField_1: 61589-63561 | 1 | Request quote | |||
| 7 | INSULATORField_1: 61589-63561 | 1 | Request quote | |||
| 8 | BUSHINGField_1: 61589-63561 | 1 | Request quote | |||
| 9 | WASHERField_1: 61589-63561 | 2 | Request quote | |||
| 10 | BOLTField_1: 61589-63561 | 1 | Request quote | |||
| 11 | INSULATORField_1: 61589-63561 | 1 | Request quote | |||
| 12 | BUSHINGField_1: 61589-63561 | 1 | Request quote | |||
| 13 | CONDENSERField_1: 61589-63561 | 1 | Request quote | |||
| 14 | RESISTOR ASS'YField_1: 61589-63561 | 1 | Request quote | |||
| 15 | CONNECOR ASS'YField_1: 61589-63561 | 1 | Request quote | |||
| 16 | BUSHINGField_1: 61589-63561 | 2 | Request quote | |||
| 17 | CHARGE LAMP ASS'YField_1: 61589-63561 | 1 | Request quote | |||
| 18 | BEARING,ROLLERField_1: 61589-63561 | 1 | Request quote | |||
| 19 | REGULATOR,ICField_1: 61589-63561 | 1 | Request quote | |||
| 20 | COVERField_1: 61589-63561 | 1 | Request quote | |||
| 21 | COIL ASS'YField_1: 61589-63561 | 1 | Request quote | |||
| 22 | ROTOR ASS'YField_1: 61589-63561 | 1 | Request quote | |||
| 26 | FRONT BRACKET ASS'YField_1: 61589-63561 | 1 | Request quote | |||
| 23 | BRACKET,FRONTField_1: 61589-63561 | 1 | Request quote | |||
| 24 | SEAL,OILField_1: 61589-63561 | 2 | Request quote | |||
| 25 | BEARING,BALLField_1: 61589-63561 | 1 | Request quote | |||
| 26 | O-RINGField_1: 61589-63561 | 1 | Request quote | |||
| 27 | COVER,BEARINGField_1: 61589-63561 | 1 | Request quote | |||
| 28 | BOLTField_1: 61589-63561 | 3 | Request quote | |||
| 29 | BOLTField_1: 61589-63561 | 3 | Request quote | |||
| 30 | COLLARField_1: 61589-63561 | 1 | Request quote | |||
| 31 | FANField_1: 61589-63561 | 1 | Request quote | |||
| 32 | PULLEY,NON HARDENINGField_1: 61589-63561 | 1 | Request quote | |||
| 33 | WASHERField_1: 61589-63561 | 1 | Request quote | |||
| 34 | NUTField_1: 61589-63561 | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THE SAWAFUJI DENKI PART NUMBER IS THAT SD IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.
Using Komatsu WA470-3 Alternator(50A)(Inner Parts) (|000088) Parts
Use the Komatsu WA470-3 Alternator(50A)(Inner Parts) (|000088) Parts listing to identify aftermarket replacement parts within the 00[engine] section. This wheel loader application is listed for machine serial 25233-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 38 listed part occurrences, including alternator unit(50a) (reference X16-0354080), alternator a(50a) (reference 600-821-9680) and stator ass'y (reference SD1211-46000X0). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
