Komatsu WA470-3 Wheel Loader Crankshaft (|000037) Parts
Komatsu WA470-3 crankshaft (|000037) parts for machine serial 25233-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 00[Engine] / Crankshaft (|000037).
Checking current purchase options...

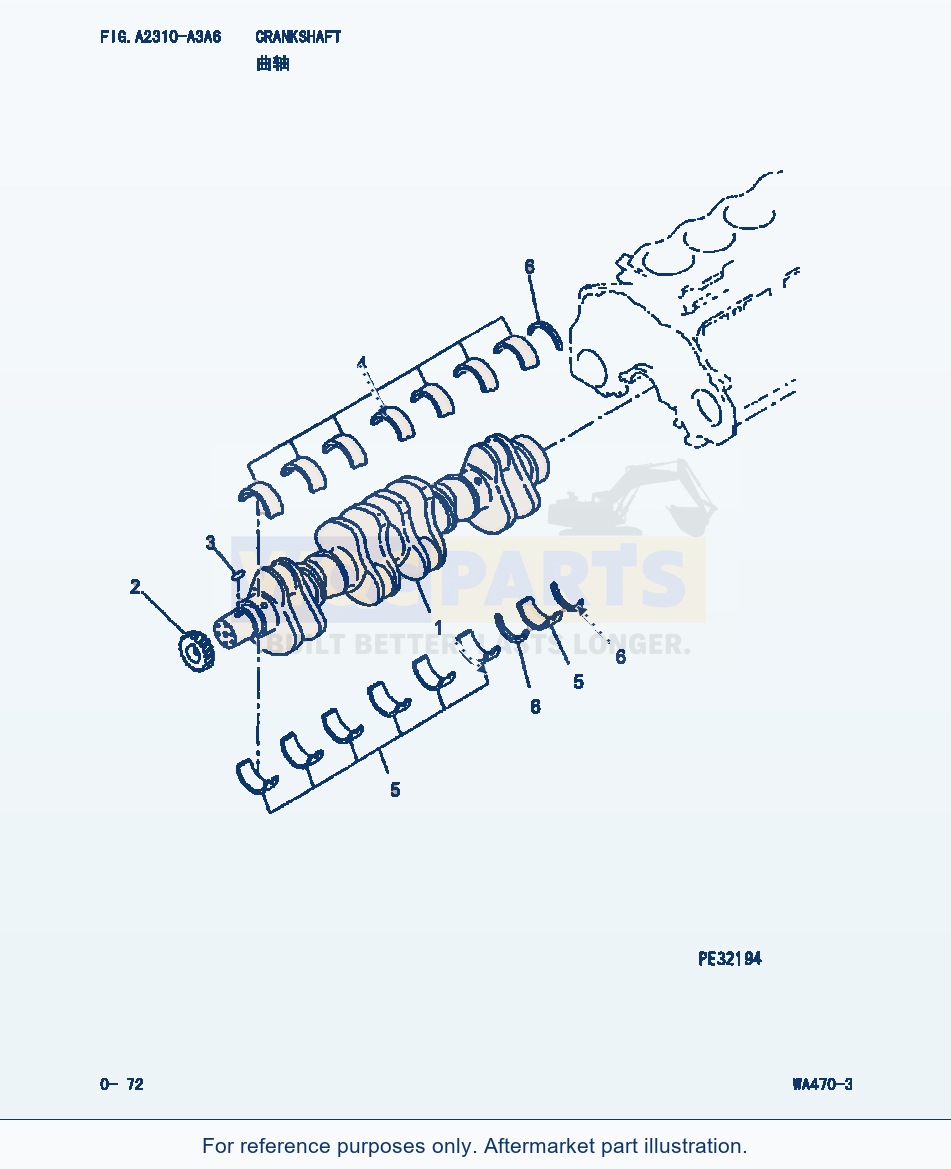

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 29 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1* | CRANKSHAFT UNITField_1: 60721- | 1 | Request quote | |||
| 1 | CRANKSHAFT ASS'YField_1: 60721- | 1 | Request quote | |||
| 1 | CRANKSHAFTField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 1 | View product ↗ | |||
| 2 | GEAR,CRANKSHAFTField_1: 60721- | 1 | View product ↗ | |||
| 3 | KEYField_1: 60721- | 1 | Request quote | |||
| 6 | MAIN METAL ASS'YField_1: 60721- | 7 | View product ↗ | |||
| 4 | METAL,UPPERField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 1 | View product ↗ | |||
| 5 | METAL,LOWERField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 1 | View product ↗ | |||
| 6 | THRUST METAL ASS'YField_1: 60721- | 1 | View product ↗ | |||
| 10 | METAL,THRUSTField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 3 | Request quote | |||
| 12 | MAIN METAL ASS'YField_1: 60721- | 7 | View product ↗ | |||
| 4 | METAL,UPPERField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 1 | View product ↗ | |||
| 5 | METAL,LOWERField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 1 | View product ↗ | |||
| 16 | MAIN METAL ASS'YField_1: 60721- | 7 | View product ↗ | |||
| 4 | METAL,UPPERField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 1 | View product ↗ | |||
| 5 | METAL,LOWERField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 1 | View product ↗ | |||
| 20 | MAIN METAL ASS'YField_1: 60721- | 7 | View product ↗ | |||
| 4 | METAL,UPPERField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 1 | View product ↗ | |||
| 5 | METAL,LOWERField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 1 | View product ↗ | |||
| 24 | MAIN METAL ASS'YField_1: 60721- | 7 | View product ↗ | |||
| 4 | METAL,UPPERField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 1 | Request quote | |||
| 5 | METAL,LOWERField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 1 | Request quote | |||
| 28 | THRUST METAL ASS'YField_1: 60721- | 1 | View product ↗ | |||
| 29 | METAL,THRUSTField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 3 | View product ↗ | |||
| 6 | THRUST METAL ASS'YField_1: 60721- | 1 | View product ↗ | |||
| 32 | METAL,THRUSTField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 3 | Request quote | |||
| 6 | THRUST METAL ASS'YField_1: 60721- | 1 | Request quote | |||
| 6 | THRUST METAL ASS'YField_1: 60721- | 1 | Request quote | |||
| 37 | METAL,THRUSTField_1: 60721- | This part cannot be supplied as an individual part. It is supplied as an assembly. | 3 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
