Komatsu WA470-3 Starting Motor Mounting(7.5Kw) (|000093) Parts
Komatsu WA470-3 starting motor mounting(7.5kw) (|000093) parts for machine serial 25233-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 00[Engine] / Starting Motor Mounting(7.5Kw) (|000093).
Checking current purchase options...

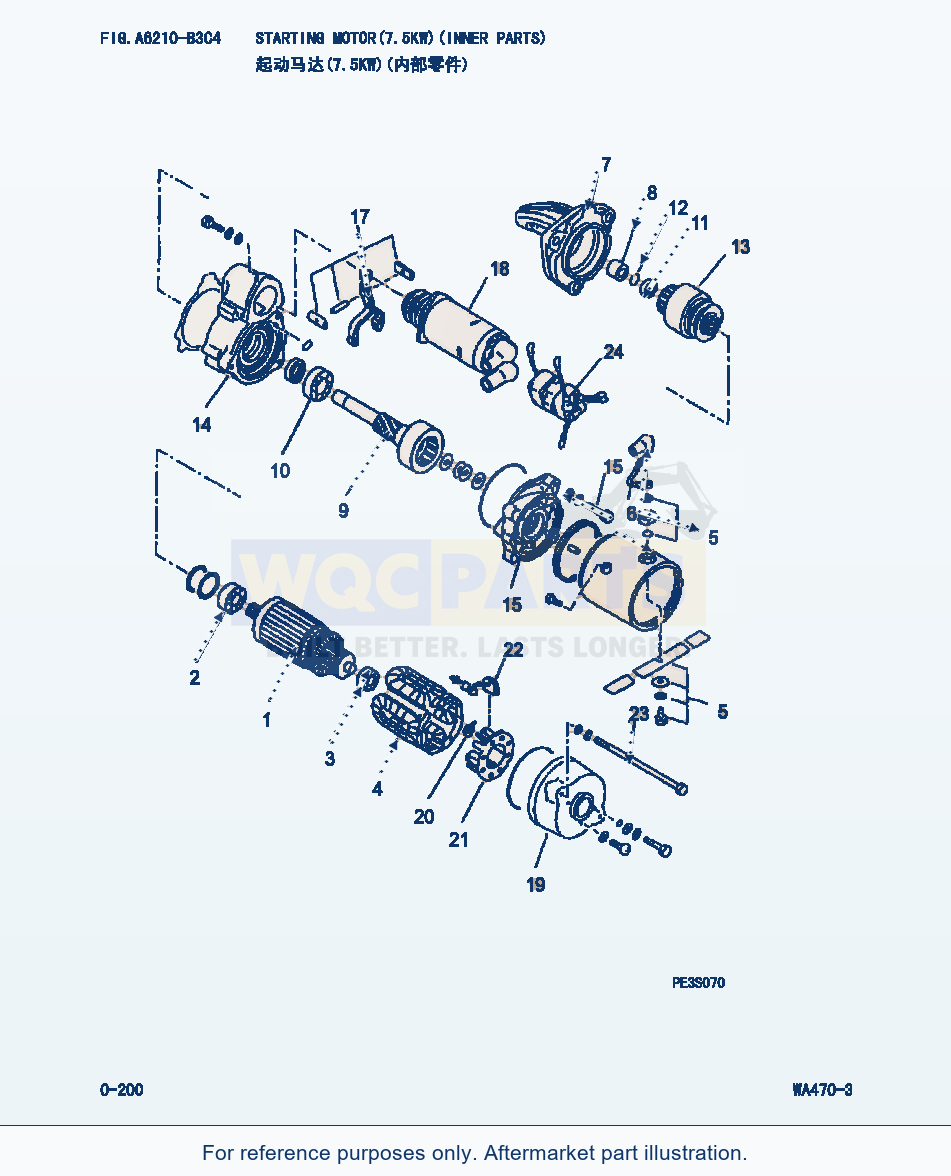

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 29 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1* | STARTING UNIT(7.5KW)Field_1: 61589- | 1 | Request quote | |||
| 1 | STARTIG MOTOR A,(7.5KW)Field_1: 61589- | 1 | View product ↗ | |||
| 1 | ARMATURE ASS'YField_1: 61589- | 1 | Request quote | |||
| 2 | BEARING,BALL,FRONTField_1: 61589- | 1 | Request quote | |||
| 3 | BEARING,BALL,REARField_1: 61589- | 1 | Request quote | |||
| 4 | FLELD COIL ASS'YField_1: 61589- | 1 | Request quote | |||
| 5 | LEAD WIRE ASS'YField_1: 61589- | 1 | Request quote | |||
| 6 | TERMINAL ASS'YField_1: 61589- | 1 | Request quote | |||
| 7 | BRACKET,FRONTField_1: 61589- | 1 | Request quote | |||
| 8 | METALField_1: 61589- | 1 | Request quote | |||
| 9 | SHAFT ASS'YField_1: 61589- | 1 | Request quote | |||
| 10 | BEARING,BALLField_1: 61589- | 1 | Request quote | |||
| 11 | STOPPER,PINIONField_1: 61589- | 1 | Request quote | |||
| 12 | RING,CLIPField_1: 61589- | 1 | Request quote | |||
| 13 | CLUTCH ASS'Y,OVER RUNNINGField_1: 61589- | 1 | Request quote | |||
| 14 | CENTER BRACKET AField_1: 61589- | 1 | Request quote | |||
| 15 | BRACKET,CENTERField_1: 61589- | 1 | Request quote | |||
| 16 | BOLTField_1: 61589- | 3 | Request quote | |||
| 17 | SHIFT LEVER ASS'YField_1: 61589- | 1 | Request quote | |||
| 18 | MAGNETIC SWITCH AField_1: 61589- | 1 | Request quote | |||
| 21 | REAR BRACKET ASS'YField_1: 61589- | 1 | Request quote | |||
| 19 | REAR BRACKET AField_1: 61589- | 1 | Request quote | |||
| 20 | SPRING,BRUSHField_1: 61589- | 4 | Request quote | |||
| 21 | BRUSH HOLDER AField_1: 61589- | 1 | Request quote | |||
| 22 | BRUSH ASS'YField_1: 61589- | 4 | Request quote | |||
| 23 | BOLTField_1: 61589- | 2 | Request quote | |||
| 24 | SWITCH ASS'YField_1: 61589- | 1 | Request quote | |||
| 25 | WASHER ASS'Y,(NOT SHOWN)Field_1: 61589- | 1 | Request quote | |||
| 26 | SEAL ASS'Y,(NOT SHOWN)Field_1: 61589- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THE SAWAFUJI DENKI PART NUMBER IS THAT KD IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.
Using Komatsu WA470-3 Starting Motor Mounting(7.5Kw) (|000093) Parts
Use the Komatsu WA470-3 Starting Motor Mounting(7.5Kw) (|000093) Parts listing to identify aftermarket replacement parts within the 00[engine] section. This wheel loader application is listed for machine serial 25233-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 29 listed part occurrences, including starting unit(7.5kw) (reference X16-0324380), startig motor a,(7.5kw) (reference 600-813-6610) and armature ass'y (reference KD0-23100-0251). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
