Catalog configuration: 01 Engine, Engine Mounting / Injection Pump, Parti.
Checking current purchase options...

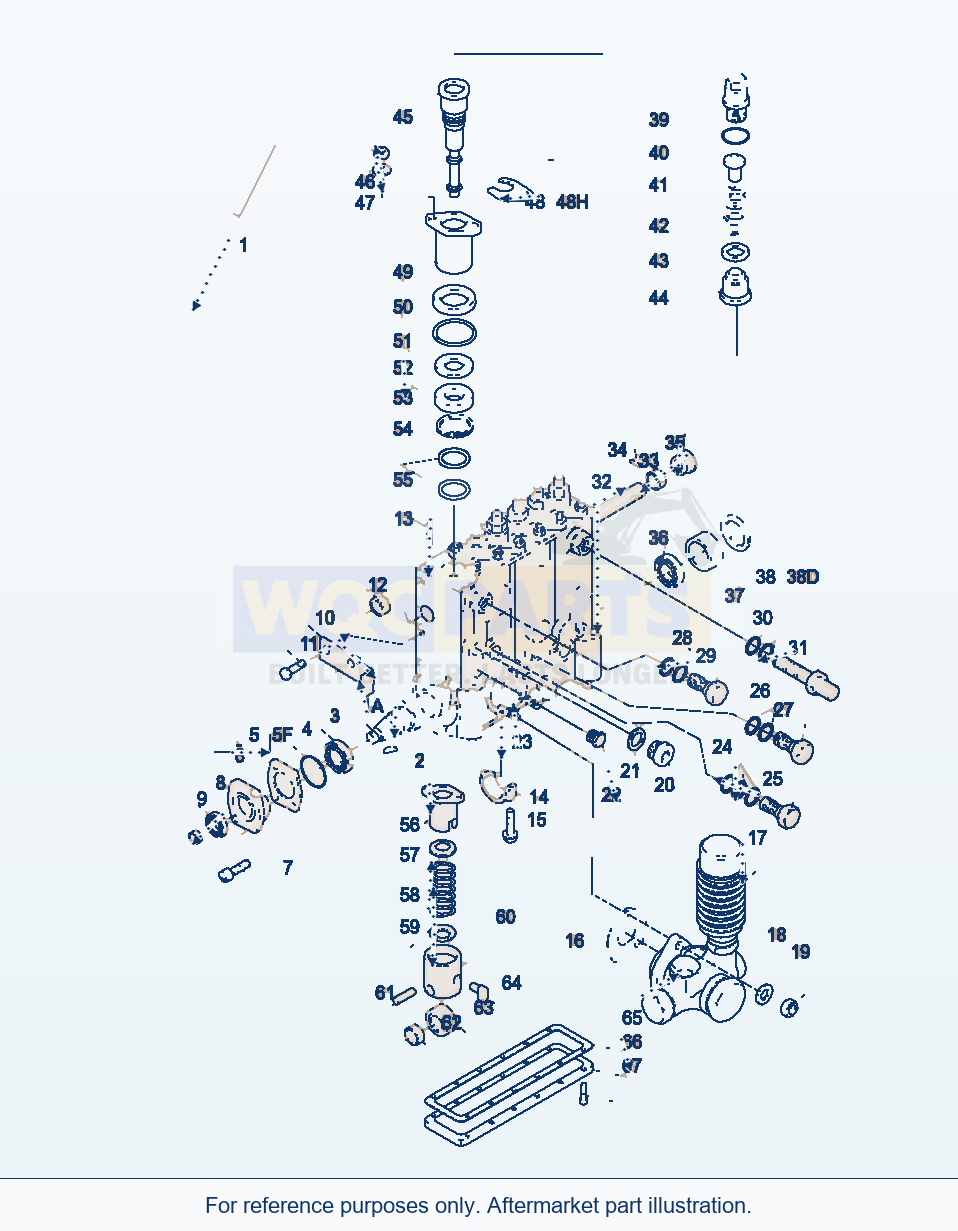

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 86 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | INJECTION PUMP | 1 | Request quote | |||
| 1A | CAMSHAFT | 1 | Request quote | |||
| 2 | WOODRUFF KEY | 1 | Request quote | |||
| 3 | BEARING | 1 | Request quote | |||
| 4 | O-RING | 1 | Request quote | |||
| 5 | ADJ SLIDE | - | Request quote | |||
| 5A | ADJ SLIDE | - | Request quote | |||
| 5B | ADJ SLIDE | - | Request quote | |||
| 5C | ADJ SLIDE | - | Request quote | |||
| 5D | ADJ SLIDE | - | Request quote | |||
| 5E | ADJ SLIDE | - | Request quote | |||
| 5F | ADJ SLIDE | - | Request quote | |||
| 6 | COVER | 1 | Request quote | |||
| 7 | SCREW | 4 | Request quote | |||
| 8 | SEAL | 1 | Request quote | |||
| 9 | SLEEVE | 1 | Request quote | |||
| 10 | BRACKET | 1 | Request quote | |||
| 11 | SCREW | 2 | Request quote | |||
| 12 | BUSHING | 1 | Request quote | |||
| 13 | STUD BOLT | 12 | Request quote | |||
| 14 | BEARING SHELL | 1 | Request quote | |||
| 15 | SCREW | 2 | Request quote | |||
| 16 | GASKET | 1 | Request quote | |||
| 17 | FUEL PUMP | 1 | Request quote | |||
| 18 | SPRING WASHER | 3 | Request quote | |||
| 19 | NUT | 3 | Request quote | |||
| 20 | PLUG | 1 | Request quote | |||
| 21 | GASKET | 1 | Request quote | |||
| 22 | PLUG | 6 | Request quote | |||
| 23 | STUD BOLT | 3 | Request quote | |||
| 24 | GASKET | 3 | Request quote | |||
| 25 | BANJO BOLT | 1 | Request quote | |||
| 26 | SEAL | 2 | Request quote | |||
| 27 | BANJO BOLT | 1 | Request quote | |||
| 28 | SEAL | 2 | Request quote | |||
| 29 | BANJO BOLT | 1 | Request quote | |||
| 30 | SEAL | 2 | Request quote | |||
| 31 | PRESSURE LIMIT.VALVE | 1 | Request quote | |||
| 32 | REGULATION ROD | 1 | Request quote | |||
| 33 | BUSHING | 1 | Request quote | |||
| 34 | PIN | 1 | Request quote | |||
| 35 | BUSHING | 1 | Request quote | |||
| 36 | BEARING | 1 | Request quote | |||
| 37 | SLEEVE | 1 | Request quote | |||
| 38 | ADJ SLIDE | - | Request quote | |||
| 38A | ADJ SLIDE | - | Request quote | |||
| 38B | ADJ SLIDE | - | Request quote | |||
| 38C | ADJ SLIDE | - | Request quote | |||
| 38D | ADJ SLIDE | - | Request quote | |||
| 39 | HOLDER | 1 | Request quote | |||
| 40 | O-RING | 1 | Request quote | |||
| 41 | POPPET | 1 | Request quote | |||
| 42 | SPRING | 1 | Request quote | |||
| 43 | GASKET | 1 | Request quote | |||
| 44 | DELIVERY VALVE | 1 | Request quote | |||
| 45 | PLUNGER | 1 | Request quote | |||
| 46 | NUT | 12 | Request quote | |||
| 47 | PLAIN WASHER | 12 | Request quote | |||
| 48 | SHIM | - | Request quote | |||
| 48A | SHIM | - | Request quote | |||
| 48B | SHIM | - | Request quote | |||
| 48C | SHIM | - | Request quote | |||
| 48D | SHIM | - | Request quote | |||
| 48E | SHIM | - | Request quote | |||
| 48F | SHIM | - | Request quote | |||
| 48G | SHIM | - | Request quote | |||
| 48H | SHIM | - | Request quote | |||
| 49 | FLANGE | 1 | Request quote | |||
| 50 | RING | 1 | Request quote | |||
| 51 | O-RING | 1 | Request quote | |||
| 52 | PLAIN WASHER | 1 | Request quote | |||
| 53 | GASKET DISC | 1 | Request quote | |||
| 54 | SNAP RING | 1 | Request quote | |||
| 55 | O-RING | 2 | Request quote | |||
| 56 | SLEEVE | 6 | Request quote | |||
| 57 | SPRING SEAT | 6 | Request quote | |||
| 58 | COMPRESSION SPRING | 6 | Request quote | |||
| 59 | SPRING SEAT | 6 | Request quote | |||
| 60 | TAPPET | 6 | Request quote | |||
| 61 | PIN | 1 | Request quote | |||
| 62 | BUSHING | 1 | Request quote | |||
| 63 | ROLLER | 1 | Request quote | |||
| 64 | PILOT | 1 | Request quote | |||
| 65 | GASKET | 1 | Request quote | |||
| 66 | COVER | 1 | Request quote | |||
| 67 | SCREW | 12 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
