Komatsu WA470-3 Wheel Loader Injection System Parts
Komatsu WA470-3 injection system parts for machine serial WA470H20051-20668. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 01 Engine, Engine Mounting / Injection System.
Checking current purchase options...

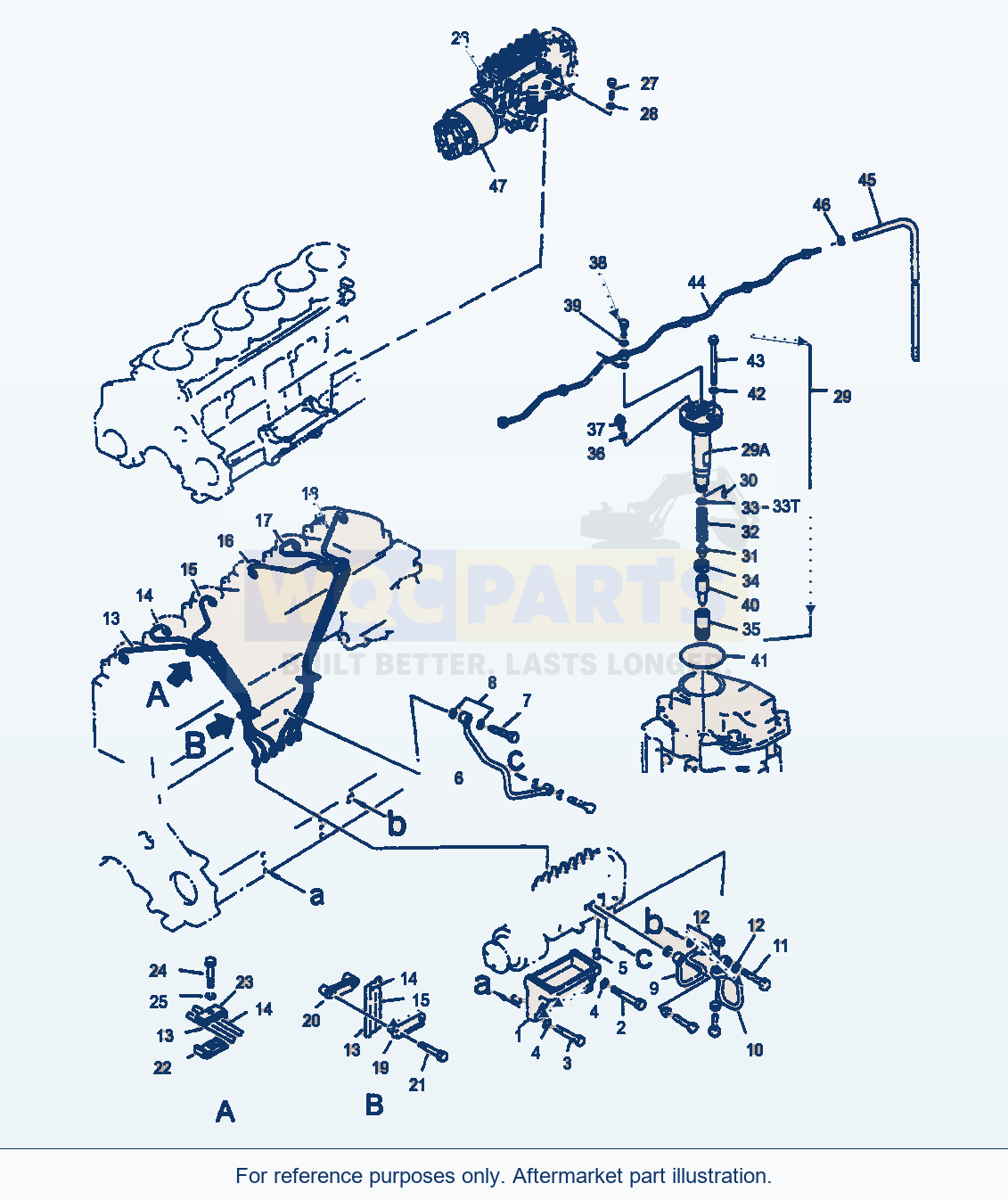

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 67 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | MOUNTING | 1 | Request quote | |||
| 2 | SCREW | 2 | View product ↗ | |||
| 3 | SCREW | 2 | Request quote | |||
| 4 | PLAIN WASHER | 4 | View product ↗ | |||
| 5 | DOWEL | 2 | Request quote | |||
| 6 | PIPE | 1 | Request quote | |||
| 7 | BANJO BOLT | 1 | View product ↗ | |||
| 8 | SEAL | 2 | View product ↗ | |||
| 9 | PIPE | 1 | View product ↗ | |||
| 10 | PIPE | 1 | Request quote | |||
| 11 | BANJO BOLT | 1 | Request quote | |||
| 12 | SEAL | 3 | View product ↗ | |||
| 13 | INJECTION PIPE | 1 | View product ↗ | |||
| 14 | INJECTION PIPE | 1 | View product ↗ | |||
| 15 | INJECTION PIPE | 1 | View product ↗ | |||
| 16 | INJECTION PIPE | 1 | View product ↗ | |||
| 17 | INJECTION PIPE | 1 | View product ↗ | |||
| 18 | INJECTION PIPE | 1 | View product ↗ | |||
| 19 | CLIP | 2 | Request quote | |||
| 20 | CLIP | 2 | Request quote | |||
| 21 | SCREW | 4 | Request quote | |||
| 22 | CLIP | 4 | Request quote | |||
| 23 | CLIP | 4 | Request quote | |||
| 24 | SCREW | 4 | View product ↗ | |||
| 25 | SPRING WASHER | 4 | Request quote | |||
| 26 | INJECTION PUMP | 1 | Request quote | |||
| 27 | SCREW | 4 | Request quote | |||
| 28 | PLAIN WASHER | 4 | View product ↗ | |||
| 29 | FUEL INJECTOR | 6 | View product ↗ | |||
| 29A | NOZZLE HOLDER | 1 | Request quote | |||
| 30 | DOWEL | 2 | Request quote | |||
| 31 | ARBOR | 1 | Request quote | |||
| 32 | COMPRESSION SPRING | 1 | Request quote | |||
| 33 | SHIM | - | Request quote | |||
| 33A | SHIM | - | Request quote | |||
| 33B | SHIM | - | Request quote | |||
| 33C | SHIM | - | Request quote | |||
| 33D | SHIM | - | Request quote | |||
| 33E | SHIM | - | Request quote | |||
| 33F | SHIM | - | Request quote | |||
| 33G | SHIM | - | Request quote | |||
| 33H | SHIM | - | Request quote | |||
| 33I | SHIM | - | Request quote | |||
| 33J | SHIM | - | Request quote | |||
| 33K | SHIM | - | Request quote | |||
| 33L | SHIM | - | Request quote | |||
| 33M | SHIM | - | Request quote | |||
| 33N | SHIM | - | Request quote | |||
| 33O | SHIM | - | Request quote | |||
| 33P | SHIM | - | Request quote | |||
| 33Q | SHIM | - | Request quote | |||
| 33R | SHIM | - | Request quote | |||
| 33S | SHIM | - | Request quote | |||
| 33T | SHIM | - | Request quote | |||
| 34 | SPACER | 1 | Request quote | |||
| 35 | NUT | 1 | Request quote | |||
| 36 | SEAL | 1 | Request quote | |||
| 37 | STUD | 1 | Request quote | |||
| 38 | BANJO BOLT | 1 | View product ↗ | |||
| 39 | SEAL | 2 | View product ↗ | |||
| 40 | NOZZLE | 1 | View product ↗ | |||
| 41 | O-RING | 6 | View product ↗ | |||
| 42 | SEAL | 12 | View product ↗ | |||
| 43 | SCREW | 12 | Request quote | |||
| 45 | FUEL HOSE | 1 | Request quote | |||
| 46 | CLIP | 1 | View product ↗ | |||
| 47 | COUPLING ASSEMBLY | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
INJECTION PUMP
PIPE
COUPLING ASSEMBLY
Using Komatsu WA470-3 Wheel Loader Injection System Parts
Use the Komatsu WA470-3 Wheel Loader Injection System Parts listing to identify aftermarket replacement parts within the 01 engine, engine mounting section. This wheel loader application is listed for machine serial WA470H20051-20668; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 67 listed part occurrences, including mounting (reference 6151-21-6111), plain washer (reference 01643-31032) and dowel (reference 6150-41-2430). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
