Komatsu WA470-3 Emergency Steering Pump And Pipings, Part I Parts

Komatsu WA470-3 emergency steering pump and pipings, part i parts for machine serial WA470H20051-20668. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 07 Steering / Emergency Steering Pump And Pipings, Part I / Emergency Steering Pump.

WA470-3Machine serial WA470H20051-2066846 part occurrences

Checking current purchase options...

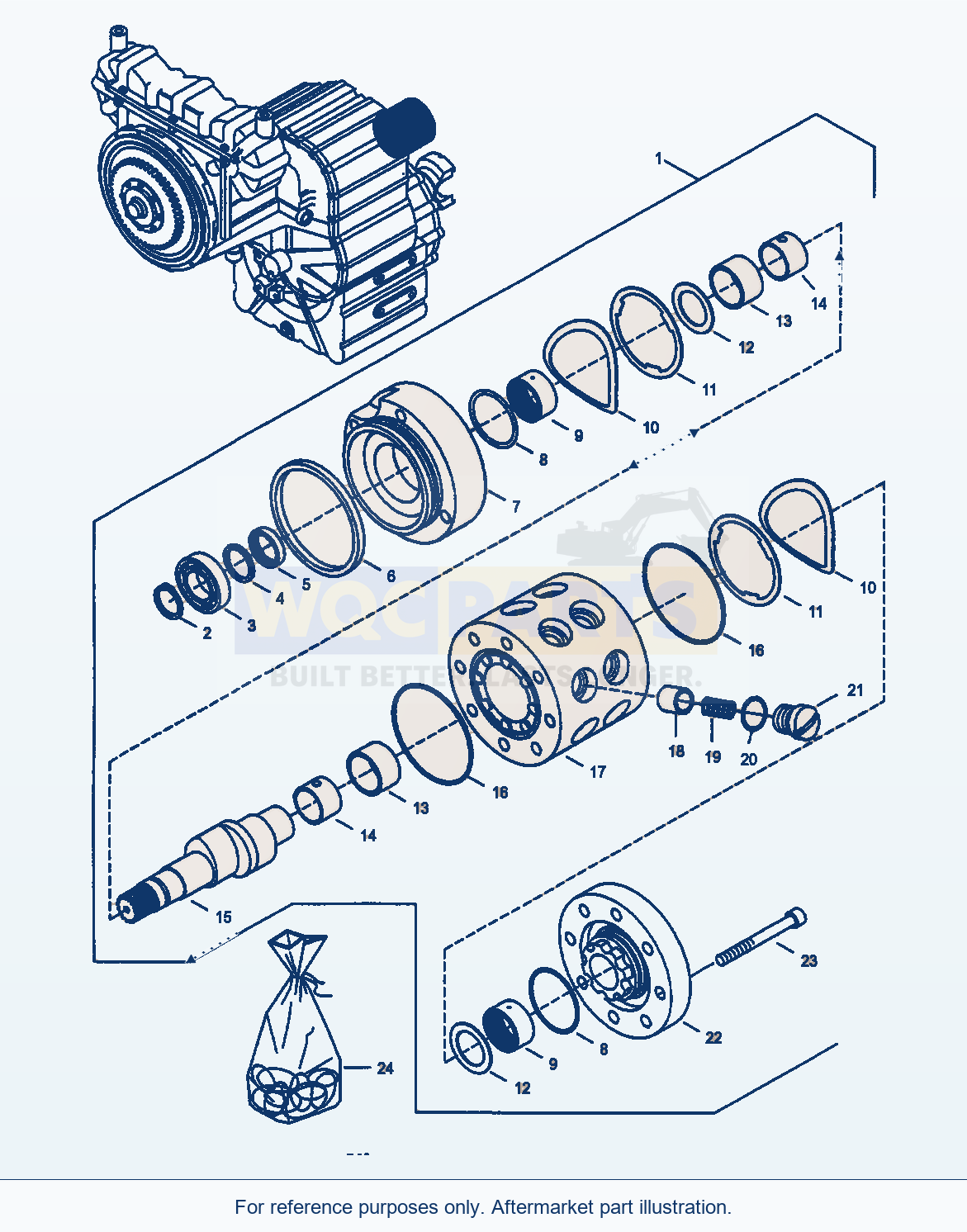

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 46 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	EMER STEERING PUMP	1	Request quote
2	CIRCLIP	1	Request quote
3	BALL BEARING	1	Request quote
4	RING	1	Request quote
5	SEAL	1	Request quote
6	O-RING	1	Request quote
7	COVER	1	Request quote
8	O-RING	2	Request quote
9	NEEDLE BEARING	2	Request quote
10	SPRING PLATE	2	Request quote
11	FLAT SPRING	2	Request quote
12	DISC	2	Request quote
13	RING	2	Request quote
14	BUSHING	2	Request quote
15	SHAFT	1	Request quote
16	O-RING	2	Request quote
18	PISTON	16	Request quote
19	COMPRESSION SPRING	16	Request quote
20	O-RING	16	Request quote
21	SCREW	16	Request quote
22	COVER	1	Request quote
23	SCREW	1	Request quote
24	PACKING KIT	1	Request quote
1	EMER STEERING PUMP	1	Request quote
2	CIRCLIP	1	Request quote
3	BALL BEARING	1	Request quote
4	RING	1	Request quote
5	SEAL	1	Request quote
6	O-RING	1	Request quote
7	COVER	1	Request quote
8	O-RING	2	Request quote
9	NEEDLE BEARING	2	Request quote
10	SPRING PLATE	2	Request quote
11	FLAT SPRING	2	Request quote
12	DISC	2	Request quote
13	RING	2	Request quote
14	BUSHING	2	Request quote
15	SHAFT	1	Request quote
16	O-RING	2	Request quote
18	PISTON	16	Request quote
19	COMPRESSION SPRING	16	Request quote
20	O-RING	16	Request quote
21	SCREW	16	Request quote
22	COVER	1	Request quote
23	SCREW	1	Request quote
24	PACKING KIT	1	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

HOUSING

Catalog sitemap

Using Komatsu WA470-3 Emergency Steering Pump And Pipings, Part I Parts

Use the Komatsu WA470-3 Emergency Steering Pump And Pipings, Part I Parts listing to identify aftermarket replacement parts within the 07 steering section. This wheel loader application is listed for machine serial WA470H20051-20668; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 46 listed part occurrences, including emer steering pump (reference 421-N24-H450), circlip (reference 04064-02012) and ball bearing (reference 421-N24-H500). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
