Komatsu WA470-3 Wheel Loader Brake Parts
Komatsu WA470-3 brake parts for machine serial WA470H20051-20668. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 08 Front Axle / Brake.
Checking current purchase options...

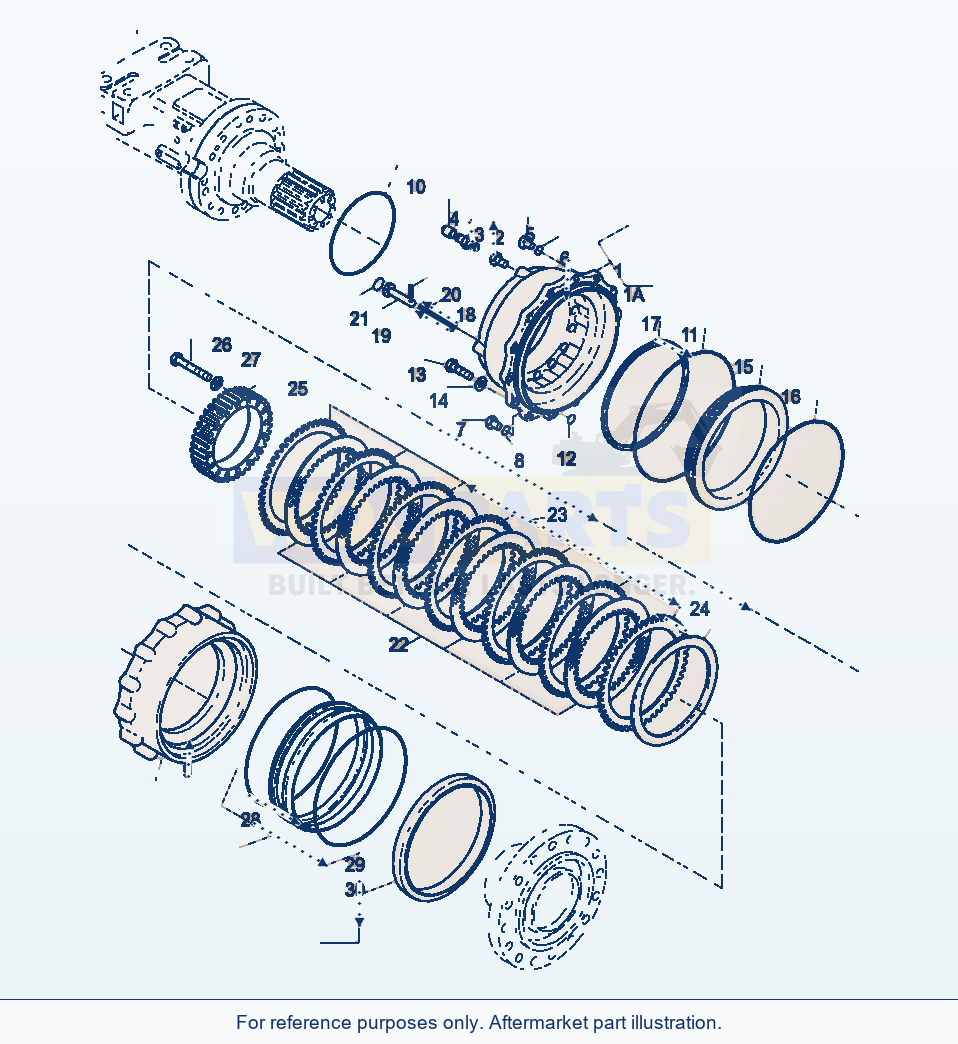

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 30 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HOUSING | 1 | Request quote | |||
| 1A | HOUSING | 1 | Request quote | |||
| 2 | STUD | 2 | Request quote | |||
| 3 | BREATHER VALVE | 2 | Request quote | |||
| 4 | CAP | 2 | View product ↗ | |||
| 5 | PLUG | 2 | View product ↗ | |||
| 6 | O-RING | 2 | View product ↗ | |||
| 7 | PLUG | 4 | View product ↗ | |||
| 8 | O-RING | 4 | View product ↗ | |||
| 9 | HOUSING | 2 | Request quote | |||
| 10 | O-RING | 2 | View product ↗ | |||
| 11 | O-RING | 2 | View product ↗ | |||
| 12 | O-RING | 2 | View product ↗ | |||
| 13 | SCREW | 28 | View product ↗ | |||
| 14 | PLAIN WASHER | 28 | View product ↗ | |||
| 15 | PISTON | 2 | Request quote | |||
| 16 | O-RING | 2 | View product ↗ | |||
| 17 | SEAL | 2 | View product ↗ | |||
| 18 | COMPRESSION SPRING | 16 | Request quote | |||
| 19 | PILOT | 16 | Request quote | |||
| 20 | DOWEL | 16 | View product ↗ | |||
| 21 | O-RING | 16 | View product ↗ | |||
| 22 | INTERNAL DISC | 12 | View product ↗ | |||
| 23 | EXTERNAL DISC | 14 | View product ↗ | |||
| 24 | DISC | 2 | View product ↗ | |||
| 25 | DISC CARRIER | 2 | Request quote | |||
| 26 | SCREW | 32 | Request quote | |||
| 27 | PLAIN WASHER | 32 | View product ↗ | |||
| 28 | GASKET KIT | 2 | View product ↗ | |||
| 30 | SEAL | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
NOT USED
Using Komatsu WA470-3 Wheel Loader Brake Parts
Use the Komatsu WA470-3 Wheel Loader Brake Parts listing to identify aftermarket replacement parts within the 08 front axle section. This wheel loader application is listed for machine serial WA470H20051-20668; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 30 listed part occurrences, including housing (reference 421-33-11151), housing (reference 421-33-11140) and stud (reference 581-32-12140). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
