Komatsu WA470-3 Wheel Loader Front Axle Parts
Komatsu WA470-3 front axle parts for machine serial WA470H20051-20668. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 08 Front Axle / Front Axle.
Checking current purchase options...

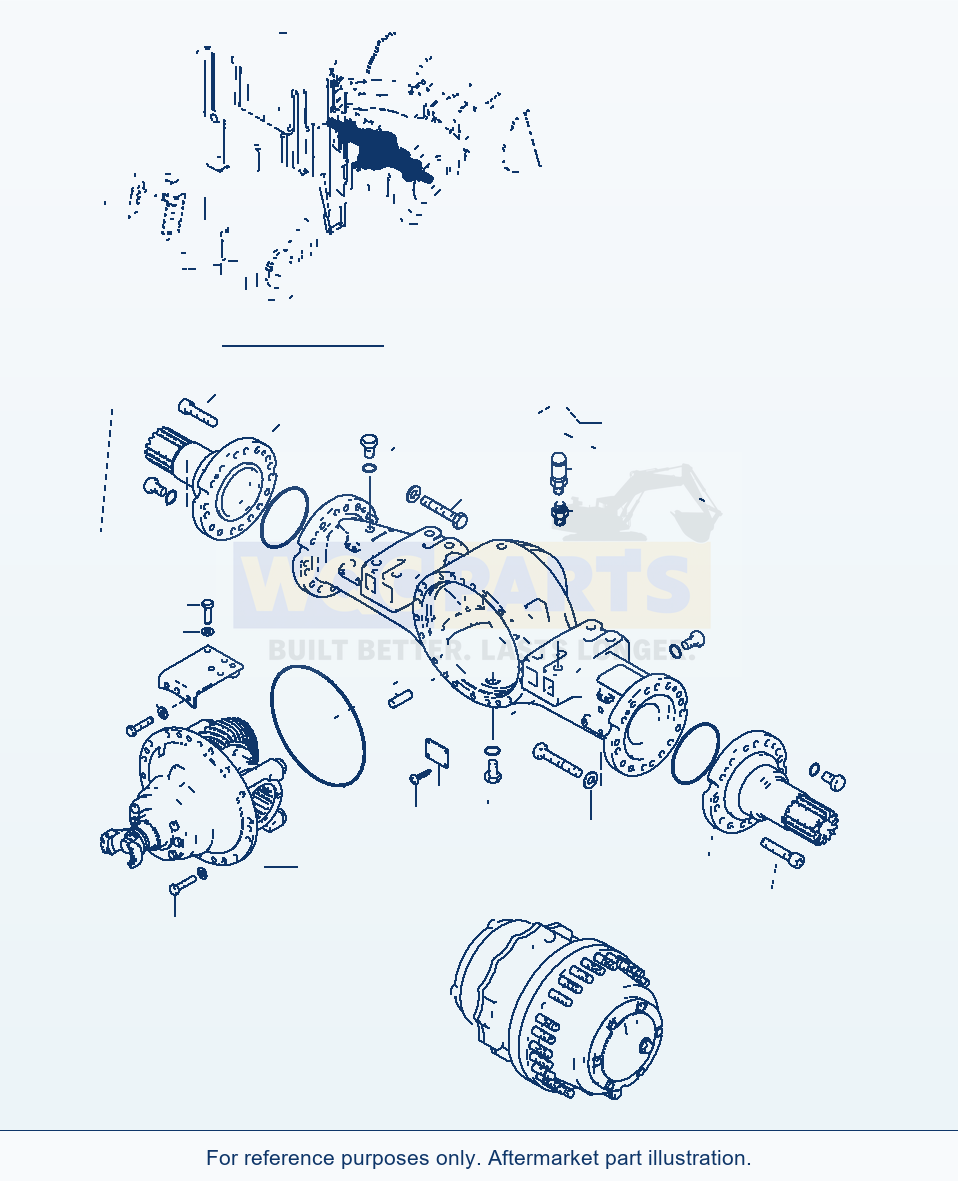

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FRONT AXLE | 1 | Request quote | |||
| 1A | FRONT AXLE | 1 | Request quote | |||
| 1B | AXLE BRIDGE | 1 | Request quote | |||
| 2 | PLUG | 1 | View product ↗ | |||
| 3 | PLUG | 2 | View product ↗ | |||
| 4 | O-RING | 3 | View product ↗ | |||
| 5 | BREATHER | 1 | View product ↗ | |||
| 5A | ADAPTOR | 1 | Request quote | |||
| 6 | HUB CARRIER | 2 | Request quote | |||
| 7 | PLUG | 4 | View product ↗ | |||
| 8 | O-RING | 4 | View product ↗ | |||
| 9 | O-RING | 2 | View product ↗ | |||
| 10 | SCREW | 6 | Request quote | |||
| 11 | SCREW | 32 | Request quote | |||
| 12 | PLAIN WASHER | 32 | Request quote | |||
| 13 | DIFFERENTIAL | 1 | Request quote | |||
| 13A | AXLE INSERT | 1 | Request quote | |||
| 14 | PIN | 1 | View product ↗ | |||
| 15 | O-RING | 1 | View product ↗ | |||
| 16 | SCREW | 17 | View product ↗ | |||
| 17 | SCREW | 3 | View product ↗ | |||
| 18 | PLAIN WASHER | 20 | View product ↗ | |||
| 19 | COVER | 1 | Request quote | |||
| 20 | SCREW | 1 | View product ↗ | |||
| 21 | PLAIN WASHER | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
DIFFERENTIAL
AXLE INSERT
NOT USED
NOT USED
BRAKE
BRAKE
Using Komatsu WA470-3 Wheel Loader Front Axle Parts
Use the Komatsu WA470-3 Wheel Loader Front Axle Parts listing to identify aftermarket replacement parts within the 08 front axle section. This wheel loader application is listed for machine serial WA470H20051-20668; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including front axle (reference 421-22-20052), front axle (reference 421-22-20001) and axle bridge (reference 421-22-23110). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
