Komatsu WA470-3 Wheel Loader Log Graplle (|000304) Parts

Using Komatsu WA470-3 Wheel Loader Log Graplle (|000304) Parts

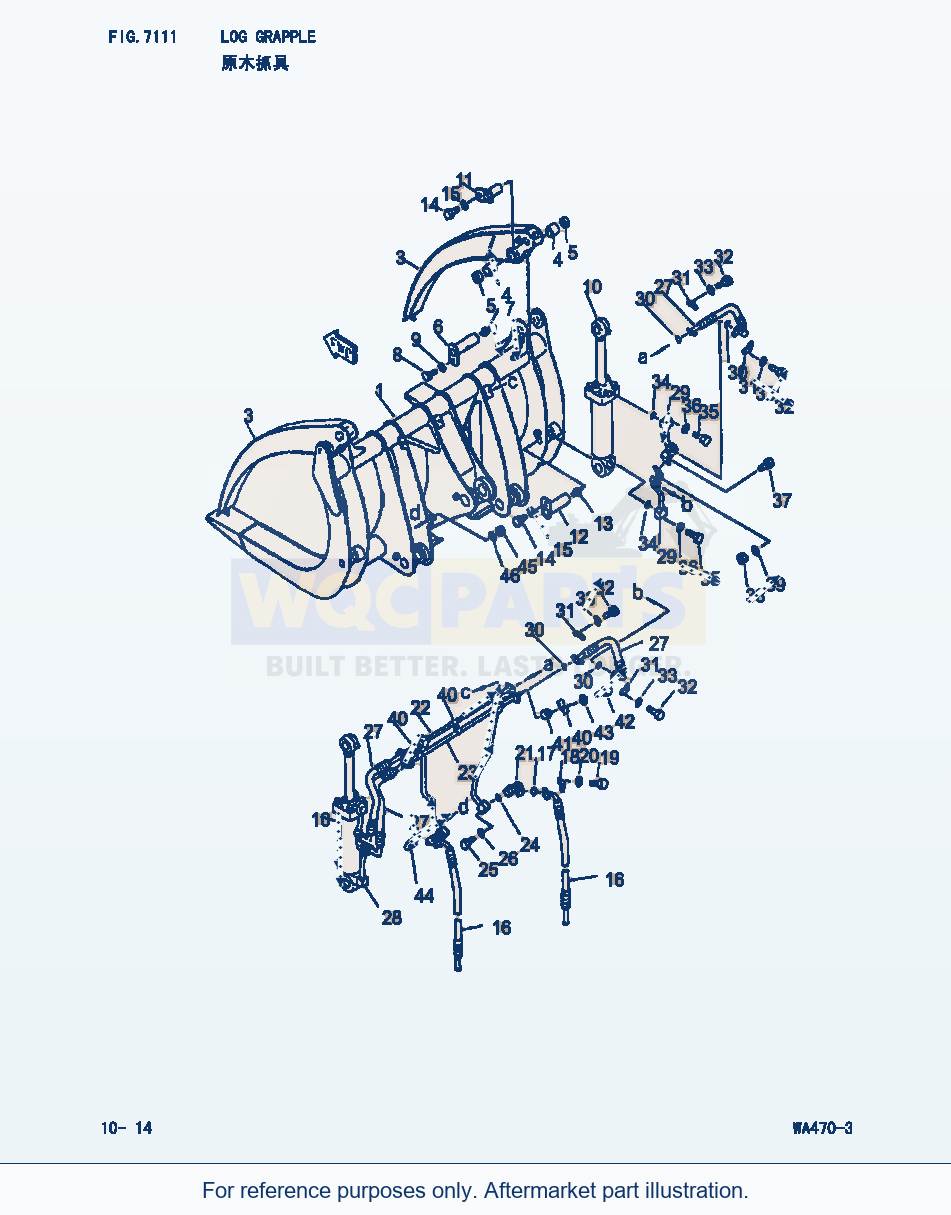

Use the Komatsu WA470-3 Wheel Loader Log Graplle (|000304) Parts listing to identify aftermarket replacement parts within the 10[att.opt] section. This wheel loader application is listed for machine serial 25233-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 46 listed part occurrences, including carrier (reference 421-880-1512), arm ass'y (reference 421-880-0010) and arm (reference 421-880-1610). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
