Komatsu WA470-3 Wheel Loader Battery And Battery Box (|000107) Parts
Komatsu WA470-3 battery and battery box (|000107) parts for machine serial 25233-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 10[Engine Related Parts And Electrical System] / Battery And Battery Box (|000107).
Checking current purchase options...

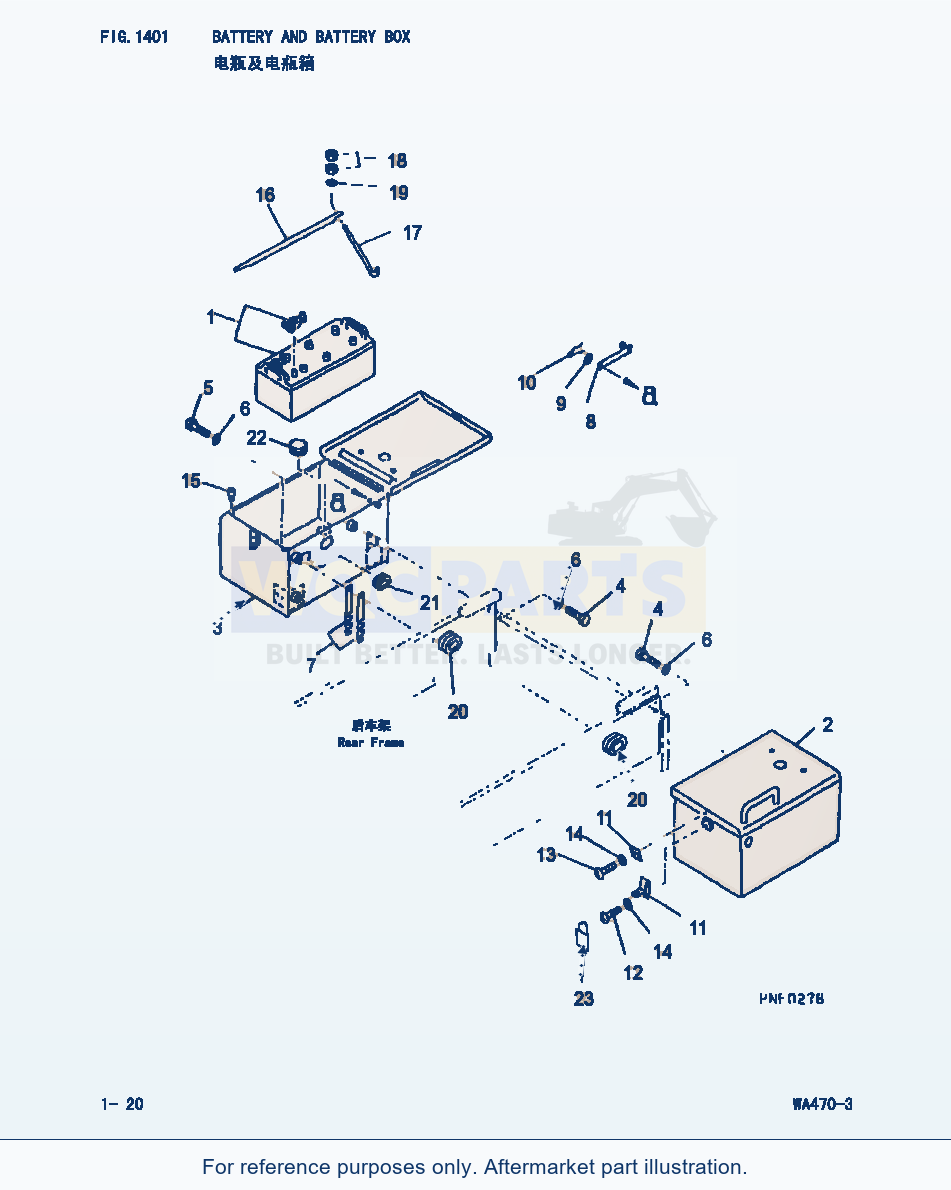

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BATTERY.12V 150AHField_1: 25001- | 2 | Request quote | |||
| 1 | TERMINAL.(+)Field_1: 25001- | 1 | View product ↗ | |||
| 2 | TERMINAL.(-)Field_1: 25001- | 1 | View product ↗ | |||
| 2 | BOX.L.HField_1: 25001- | 1 | Request quote | |||
| 3 | BOX.R.HField_1: 25001- | 1 | Request quote | |||
| 4 | BOLTField_1: 25001- | 2 | Request quote | |||
| 5 | BOLTField_1: 25001- | 4 | Request quote | |||
| 6 | WASHERField_1: 25001- | 6 | View product ↗ | |||
| 7 | SHIM.1.0MMField_1: 25001- | 4 | Request quote | |||
| 9 | SHIM.3.2MMField_1: 25001- | 4 | Request quote | |||
| 8 | BARField_1: 25001- | 2 | Request quote | |||
| 9 | WASHERField_1: 25001- | 2 | View product ↗ | |||
| 10 | PIN,SNAPField_1: 25001- | 2 | Request quote | |||
| 11 | HOLDERField_1: 25001- | 2 | Request quote | |||
| 12 | SCREWField_1: 25001- | 6 | Request quote | |||
| 13 | SCREWField_1: 25001- | 4 | Request quote | |||
| 14 | WASHERField_1: 25001- | 10 | Request quote | |||
| 15 | CUSHIONField_1: 25001- | 4 | Request quote | |||
| 16 | HOLDERField_1: 25001- | 2 | Request quote | |||
| 17 | BOLTField_1: 25001- | 4 | Request quote | |||
| 18 | NUTField_1: 25001- | 8 | View product ↗ | |||
| 19 | WASHERField_1: 25001- | 4 | View product ↗ | |||
| 20 | GROMMETField_1: 25001- | 2 | Request quote | |||
| 21 | GROMMETField_1: 25001- | 2 | Request quote | |||
| 22 | CAPField_1: 25001- | 2 | Request quote | |||
| 23 | COPPER LOCKField_1: 25001- | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-3 Wheel Loader Battery And Battery Box (|000107) Parts
Use the Komatsu WA470-3 Wheel Loader Battery And Battery Box (|000107) Parts listing to identify aftermarket replacement parts within the 10[engine related parts and electrical system] section. This wheel loader application is listed for machine serial 25233-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including battery.12v 150ah (reference 08000-02215), terminal.(+) (reference 08000-00000) and terminal.(-) (reference 08000-00001). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
