30[Drive Shaft,Differential And Wheel Brake]

Komatsu WA470-3 Wheel Loader Front Differential (|000161) Parts

Komatsu WA470-3 front differential (|000161) parts for machine serial 25233-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 30[Drive Shaft,Differential And Wheel Brake] / Front Differential (|000161).

WA470-3Machine serial 25233-UP41 part occurrences

Checking current purchase options...

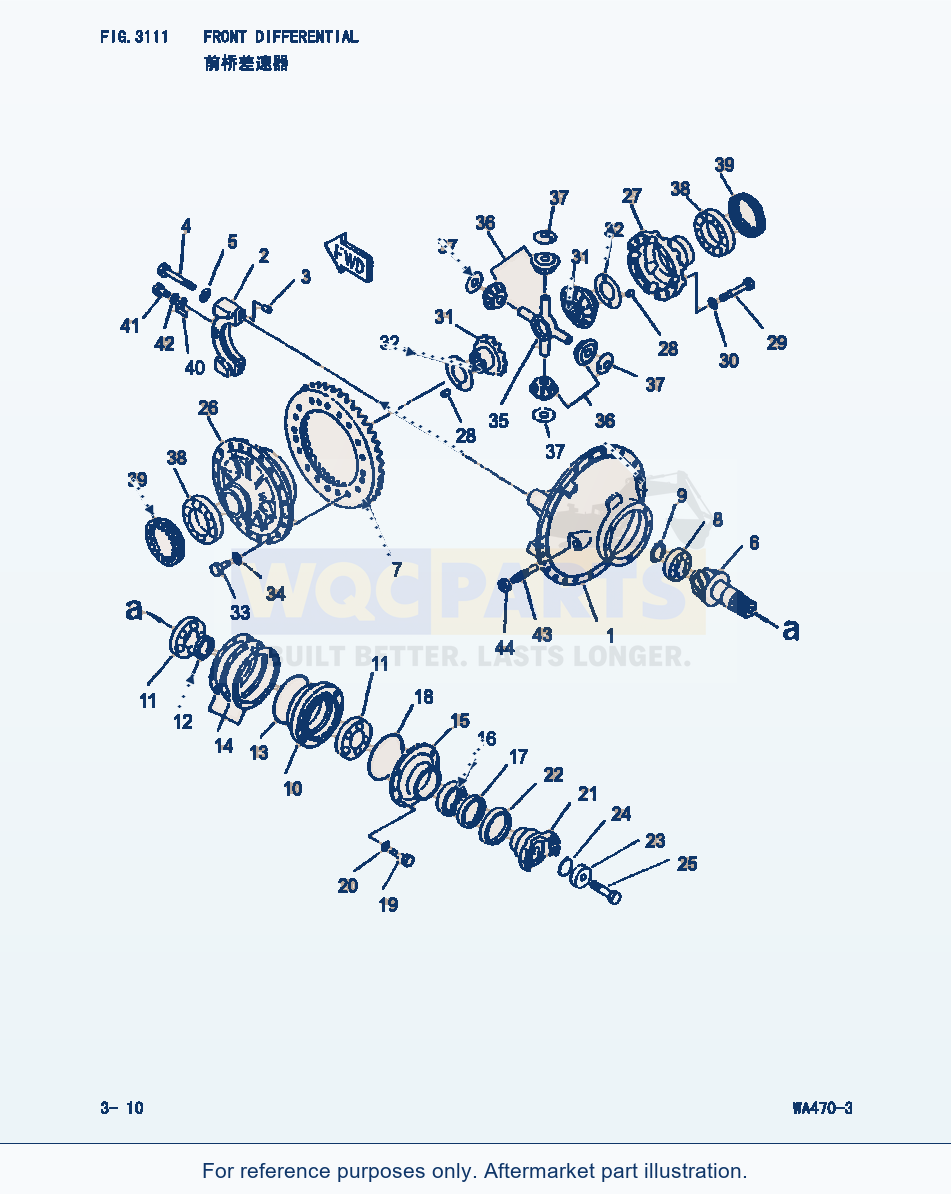

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 41 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	AXLE ASS'Y.FRONT THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101-3131Field_1: 25001-	1	Request quote
1	DIFFERENTIAL ASS'Y,FRONT	-	Request quote
3	PIN,DOWELField_1: 25001-	4	Request quote
4	BOLTField_1: 25001-	4	Request quote
5	WASHERField_1: 25001-	4	Request quote
8	PINION ASS'YField_1: 25001-	1	Request quote
8	BEARINGField_1: 25001-	1	Request quote
9	RING.SNAPField_1: 25001-	1	View product ↗
11	BEARINGField_1: 25001-	2	Request quote
12	SPACERField_1: 25001-	1	Request quote
13	O-RINGField_1: 25001-	1	View product ↗
14	SHIM. 0.2MMField_1: 25001-	2	Request quote
18	SHIM. 0.3MMField_1: 25001-	3	Request quote
19	SHIM. 1.0MMField_1: 25001-	2	Request quote
16	SERL.OILField_1: 25001-	1	Request quote
17	SEAL.DUSTField_1: 25001-	1	View product ↗
18	O-RINGField_1: 25001-	1	View product ↗
19	BOLTField_1: 25001-	7	View product ↗
20	WASHERField_1: 25001-	7	View product ↗
21	COUPLINGField_1: 25001-	1	Request quote
22	PROTECTORField_1: 25001-	1	Request quote
23	HOLDERField_1: 25001-	1	Request quote
24	O-RINGField_1: 25001-	1	View product ↗
25	BOLTField_1: 25001-	1	Request quote
28	PIN.DOWELField_1: 25001-	4	View product ↗
29	BOLTField_1: 25001-	12	Request quote
30	WASHERField_1: 25001-	12	View product ↗
31	GEAR.SIDEField_1: 25001-	2	Request quote
32	WASHERField_1: 25001-	2	View product ↗
33	BOLTField_1: 25001-	20	View product ↗
34	WASHERField_1: 25001-	20	View product ↗
35	SHAFTField_1: 25001-	1	Request quote
36	PINIONField_1: 25001-	4	Request quote
37	WASHERField_1: 25001-	4	Request quote
38	BEARINGField_1: 25001-	2	Request quote
39	NUT.RINGField_1: 25001-	2	Request quote
40	LOCKField_1: 25001-	2	Request quote
41	BOLTField_1: 25001-	2	View product ↗
42	WASHERField_1: 25001-	2	View product ↗
43	BOLTField_1: 25001-	1	Request quote
44	NUTField_1: 25001-	1	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: CARRIER ASS'Y | QTY: 1 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: CARRIER | QTY: 1 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: CAP | QTY: 2 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: PINION | QTY: 1 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: GEAR.BEVEL | QTY: 1 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: CAGE.BEARING | QTY: 1 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 15 | Description: CAGE | QTY: 1 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 31 | Description: CASE ASS'Y | QTY: 1 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 26 | Description: CASE | QTY: 1 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 27 | Description: CASE | QTY: 1 | OPTIONS: Field_1: 25001-

Catalog sitemap

Using Komatsu WA470-3 Wheel Loader Front Differential (|000161) Parts

Use the Komatsu WA470-3 Wheel Loader Front Differential (|000161) Parts listing to identify aftermarket replacement parts within the 30[drive shaft,differential and wheel brake] section. This wheel loader application is listed for machine serial 25233-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 41 listed part occurrences, including axle ass'y.front this assembly consists of all parts shown in figs.3101-3131 (reference 421-22-20001), differential ass'y,front (reference 421-22-21001) and pin,dowel (reference 423-22-11161). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
