Komatsu WA470-3 Wheel Loader Rear Final Drive (|000167) Parts

Komatsu WA470-3 rear final drive (|000167) parts for machine serial 25233-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 30[Drive Shaft,Differential And Wheel Brake] / Rear Final Drive (|000167).

WA470-3Machine serial 25233-UP33 part occurrences

Checking current purchase options...

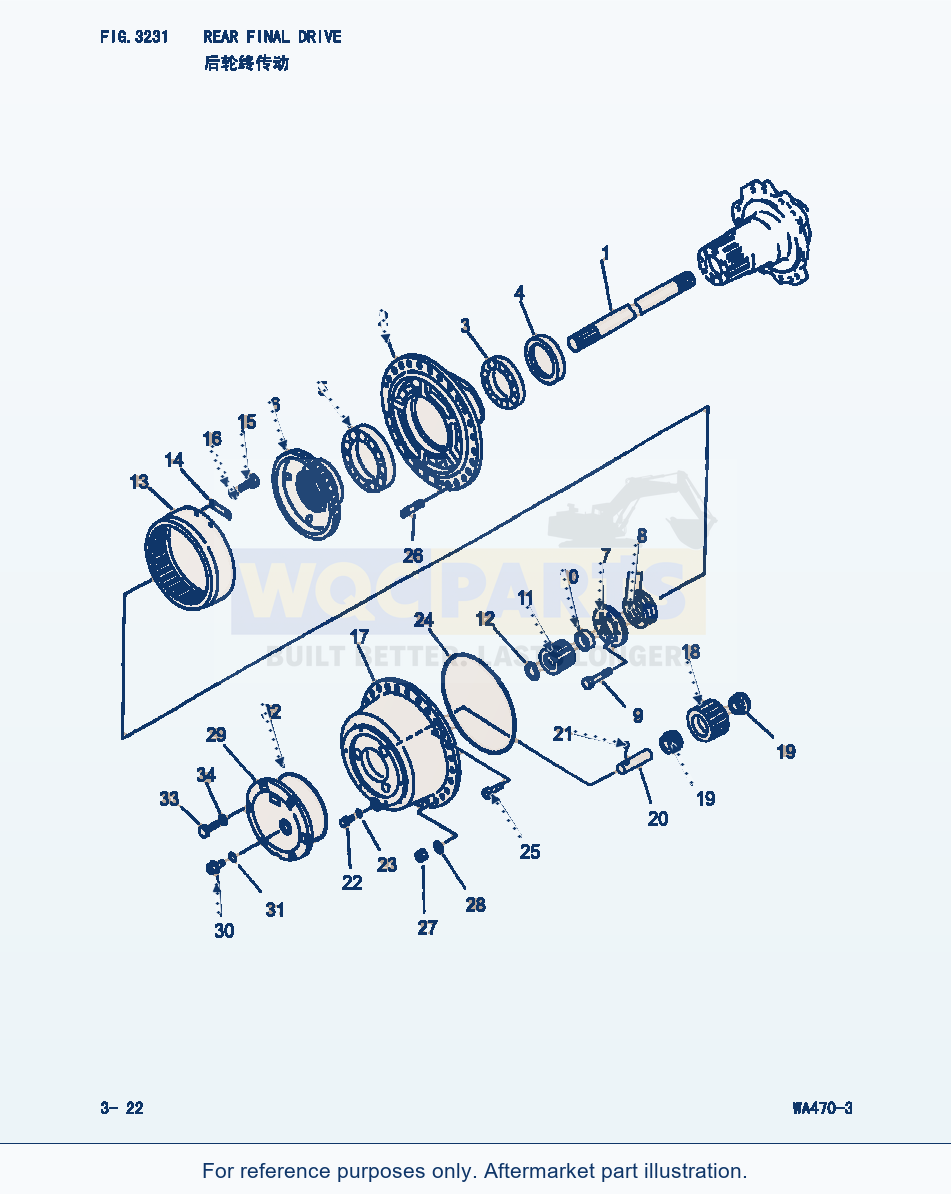

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 33 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	AXLE ASS'Y.REARField_1: 25001-	1	Request quote
3	BEARINGField_1: 25001-	2	Request quote
4	RETAINERField_1: 25001-	2	Request quote
5	BEARINGField_1: 25001-	2	View product ↗
7	RETAINERField_1: 25001-	2	Request quote
8	SHIM.0.05MMField_1: 25001-	4	Request quote
9	SHIM.0.2MMField_1: 25001-	4	Request quote
10	SHIM.0.5MMField_1: 25001-	2	Request quote
11	SHIM.1.0MMField_1: 25001-	4	Request quote
9	BOLTField_1: 25001-	16	View product ↗
10	SPACERField_1: 25001-	2	Request quote
11	GEARField_1: 25001-	2	Request quote
12	RING.SNAPField_1: 25001-	2	View product ↗
14	PLATEField_1: 25001-	12	Request quote
15	BOLTField_1: 25001-	24	Request quote
16	WASHERField_1: 25001-	24	View product ↗
17	CARRIERField_1: 25001-	1	Request quote
18	GEARField_1: 25001-	3	Request quote
19	BEARINGField_1: 25001-	6	View product ↗
20	PINField_1: 25001-	3	Request quote
21	BALLField_1: 25001-	3	Request quote
22	PLUGField_1: 25001-	2	View product ↗
23	O-RINGField_1: 25001-	2	View product ↗
24	O-RINGField_1: 25001-	2	View product ↗
25	BOLTField_1: 25001-	6	Request quote
26	STUDField_1: 25001-	50	View product ↗
27	NUTField_1: 25001-	50	View product ↗
28	WASHERField_1: 25001-	50	View product ↗
30	PLUGField_1: 25001-	2	View product ↗
31	O-RINGField_1: 25001-	2	Request quote
32	O-RINGField_1: 25001-	2	View product ↗
33	BOLTField_1: 25001-	12	Request quote
34	WASHERField_1: 25001-	12	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: SHAFT | QTY: 2 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: HUB | QTY: 2 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: HUB | QTY: 2 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: GEAR | QTY: 2 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 20 | Description: CARRIER ASS'Y | QTY: 2 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 29 | Description: COVER | QTY: 2 | OPTIONS: Field_1: 25001-
