Komatsu WA470-3 Wheel Loader Wheels And Tires (|000168) Parts
Komatsu WA470-3 wheels and tires (|000168) parts for machine serial 25233-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 30[Drive Shaft,Differential And Wheel Brake] / Wheels And Tires (|000168).
Checking current purchase options...

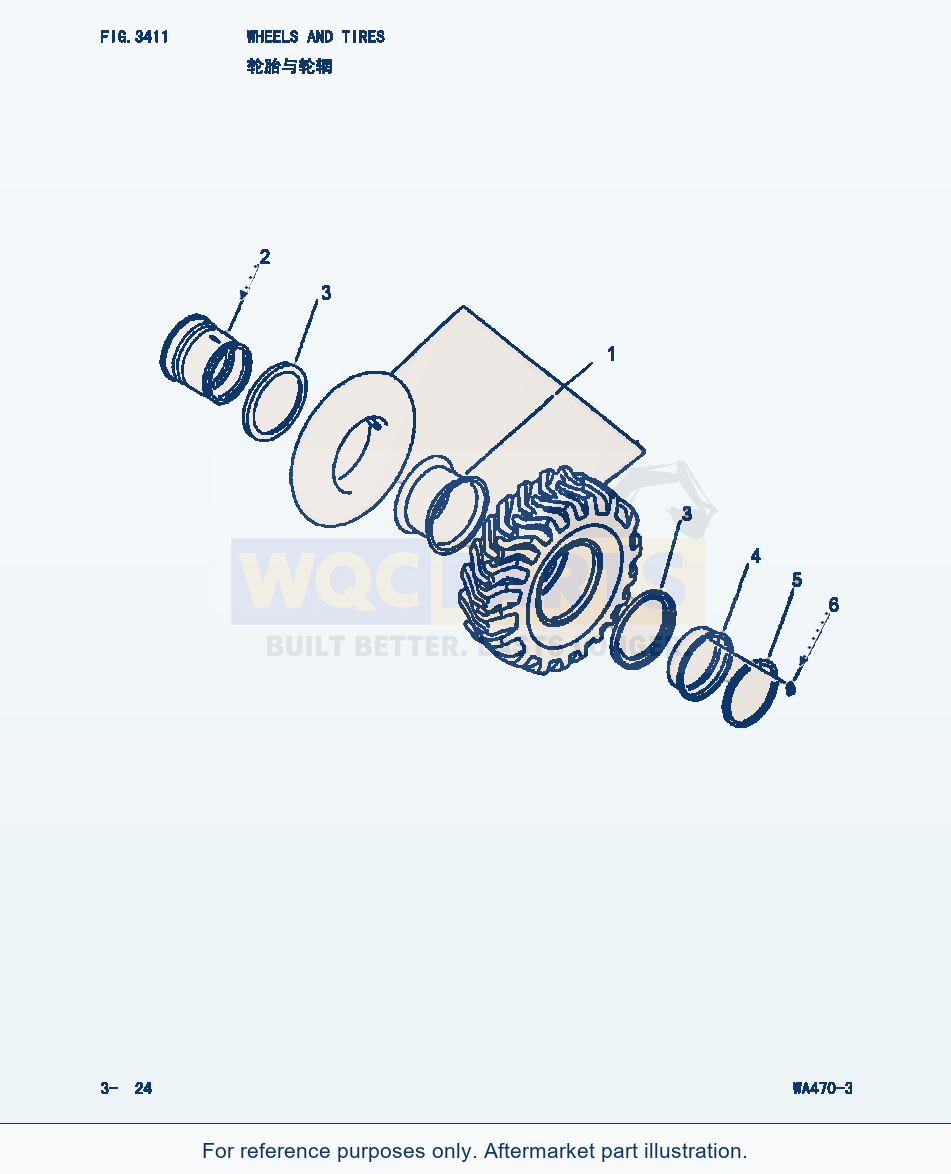

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 7 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TIRE ASS'YField_1: 25001- | 4 | Request quote | |||
| 2 | RIM ASS'YField_1: 25001- | 4 | Request quote | |||
| 2 | RIM BASEField_1: 25001- | 1 | Request quote | |||
| 3 | SIDE RINGField_1: 25001- | 2 | Request quote | |||
| 4 | BEAD SEAT BANDField_1: 25001- | 1 | Request quote | |||
| 5 | LOCK RINGField_1: 25001- | 1 | Request quote | |||
| 6 | DRIVEField_1: 25001- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TIRE 26.5-25-16PR-L3
Using Komatsu WA470-3 Wheel Loader Wheels And Tires (|000168) Parts
Use the Komatsu WA470-3 Wheel Loader Wheels And Tires (|000168) Parts listing to identify aftermarket replacement parts within the 30[drive shaft,differential and wheel brake] section. This wheel loader application is listed for machine serial 25233-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 7 listed part occurrences, including tire ass'y (reference 421-30-Z0010), rim ass'y (reference 421-W10-3100) and rim base (reference 421-W10-1110). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
