40[Steering And Control System]

Komatsu WA470-3 Wheel Loader Steering Valve (|000183) Parts

Komatsu WA470-3 steering valve (|000183) parts for machine serial 25233-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 40[Steering And Control System] / Steering Valve (|000183).

WA470-3Machine serial 25233-UP31 part occurrences

Checking current purchase options...

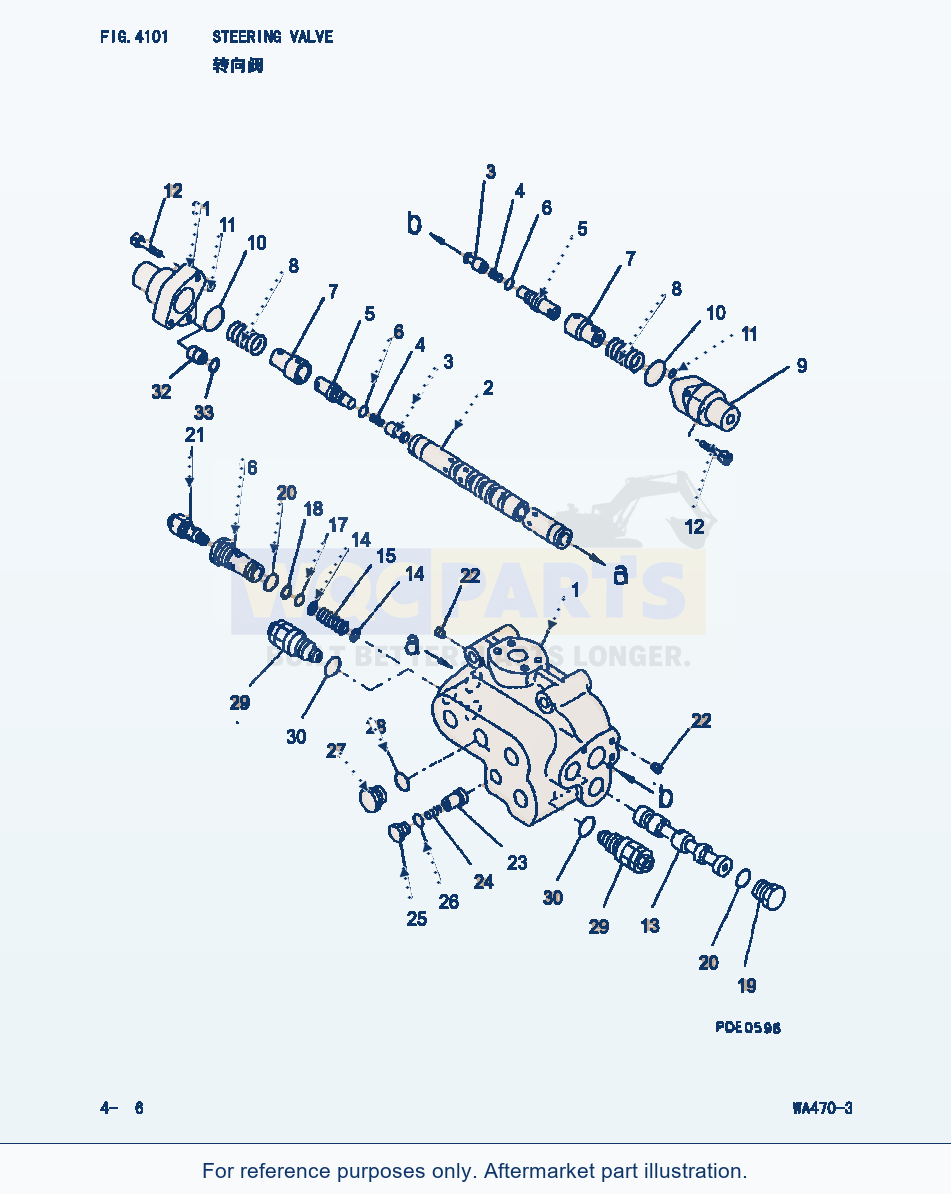

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 31 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	VALVE ASS'Y,STEERINGField_1: 25001-	1	Request quote
3	POPPETField_1: 25001-	2	Request quote
4	SPRINGField_1: 25001-	2	Request quote
5	SCREW,CAPField_1: 25001-	2	Request quote
6	O-RINGField_1: 25001-	2	Request quote
7	SEAT,SPRINGField_1: 25001-	2	Request quote
8	SPRINGField_1: 25001-	2	Request quote
9	CAPField_1: 25001-	1	Request quote
10	O-RINGField_1: 25001-	2	Request quote
11	O-RINGField_1: 25001-	2	View product ↗
12	BOLT,SOCKET HEADField_1: 25001-	4	Request quote
14	SHIMField_1: 25001-	-	Request quote
15	SPRINGField_1: 25001-	1	Request quote
16	PLUGField_1: 25001-	1	Request quote
17	O-RINGField_1: 25001-	1	Request quote
18	O-RINGField_1: 25001-	1	Request quote
19	PLUGField_1: 25001-	1	Request quote
20	O-RINGField_1: 25001-	2	Request quote
21	VALVE ASS'Y,RELIEFField_1: 25001-	1	Request quote
22	PLUGField_1: 25001-	2	Request quote
23	POPPETField_1: 25001-	1	Request quote
24	SPRINGField_1: 25001-	1	Request quote
25	PLUGField_1: 25001-	1	Request quote
26	O-RINGField_1: 25001-	1	Request quote
27	PLUGField_1: 25001-	1	Request quote
28	O-RINGField_1: 25001-	1	Request quote
29	VALVE ASS'Y,OVER LOAD RELIEFField_1: 25001-	2	Request quote
30	O-RINGField_1: 25001-	2	Request quote
31	CAPField_1: 25001-	1	Request quote
32	SLEEVEField_1: 25001-	1	Request quote
33	O-RINGField_1: 25001-	1	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: HOUSING,VLAVE | QTY: 1 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: SPOOL | QTY: 1 | OPTIONS: Field_1: 25001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: SPOOL | QTY: 1 | OPTIONS: Field_1: 25001-

Catalog sitemap

Using Komatsu WA470-3 Wheel Loader Steering Valve (|000183) Parts

Use the Komatsu WA470-3 Wheel Loader Steering Valve (|000183) Parts listing to identify aftermarket replacement parts within the 40[steering and control system] section. This wheel loader application is listed for machine serial 25233-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 31 listed part occurrences, including valve ass'y,steering (reference 421-64-25302), poppet (reference 421-64-15710) and spring (reference 421-64-15340). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
