Komatsu WA470-3 Engine Side Cover(-30Cent. Spec.) (|000219) Parts

Komatsu WA470-3 engine side cover(-30cent. spec.) (|000219) parts for machine serial 25233-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 50[Frame And Guard] / Engine Side Cover(-30Cent. Spec.) (|000219).

WA470-3Machine serial 25233-UP39 part occurrences

Checking current purchase options...

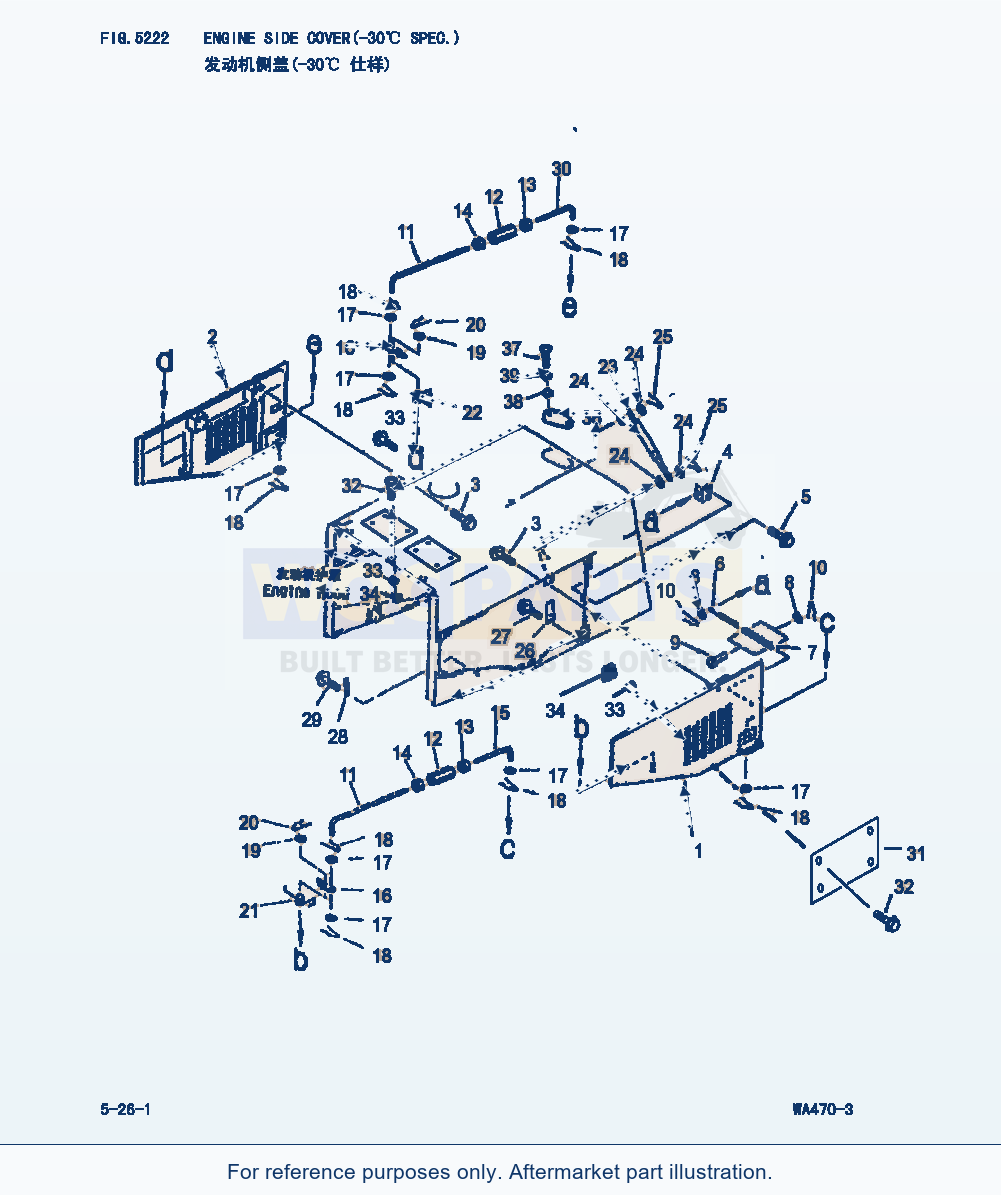

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 39 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	DOOR.L.HField_1: 52001-	1	Request quote
2	DOOR.R.HField_1: 52001-	1	Request quote
3	BOLTField_1: 52001-	16	View product ↗
4	BRACKETField_1: 52001-	2	Request quote
5	BOLTField_1: 52001-	4	View product ↗
6	PLATEField_1: 52001-	2	Request quote
7	PLATEField_1: 52001-	2	Request quote
8	WASHERField_1: 52001-	6	View product ↗
9	PINField_1: 52001-	4	Request quote
10	PIN.SNAPField_1: 52001-	6	Request quote
11	RODField_1: 52001-	2	Request quote
12	BUCKLEField_1: 52001-	2	Request quote
13	NUTField_1: 52001-	2	Request quote
14	NUTField_1: 52001-	2	Request quote
15	RODField_1: 52001-	1	Request quote
16	STRIKERField_1: 52001-	2	Request quote
17	WASHERField_1: 52001-	8	View product ↗
18	PIN.COTTERField_1: 52001-	8	Request quote
19	WASHERField_1: 52001-	2	View product ↗
20	PIN.COTTERField_1: 52001-	2	Request quote
21	SPRING.L.HField_1: 52001-	1	Request quote
22	SPRING.R.HField_1: 52001-	1	Request quote
23	GAS SPRING ASS'YField_1: 52001-	2	Request quote
24	WASHERField_1: 52001-	8	View product ↗
25	PIN.SNAPField_1: 52001-	4	Request quote
26	PLATEField_1: 52001-	2	Request quote
27	BOLTField_1: 52001-	4	View product ↗
28	PLATEField_1: 52001-	2	Request quote
29	BOLTField_1: 52001-	4	Request quote
30	RODField_1: 52001-	1	Request quote
31	PLATEField_1: 52001-	2	Request quote
32	BOLTField_1: 52001-	16	Request quote
33	WASHERField_1: 52001-	16	View product ↗
34	NUTField_1: 52001-	16	View product ↗
35	PLATEField_1: 52001-	2	Request quote
36	PLATEField_1: 52001-	1	Request quote
37	BOLTField_1: 52001-	2	Request quote
38	WASHERField_1: 52001-	2	Request quote
39	WASHERField_1: 52001-	2	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
