Komatsu WA470-3 Wheel Loader Tool (|000293) Parts
Komatsu WA470-3 tool (|000293) parts for machine serial 25233-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 90[Mark Plate,Tool And Kit] / Tool (|000293).
Checking current purchase options...

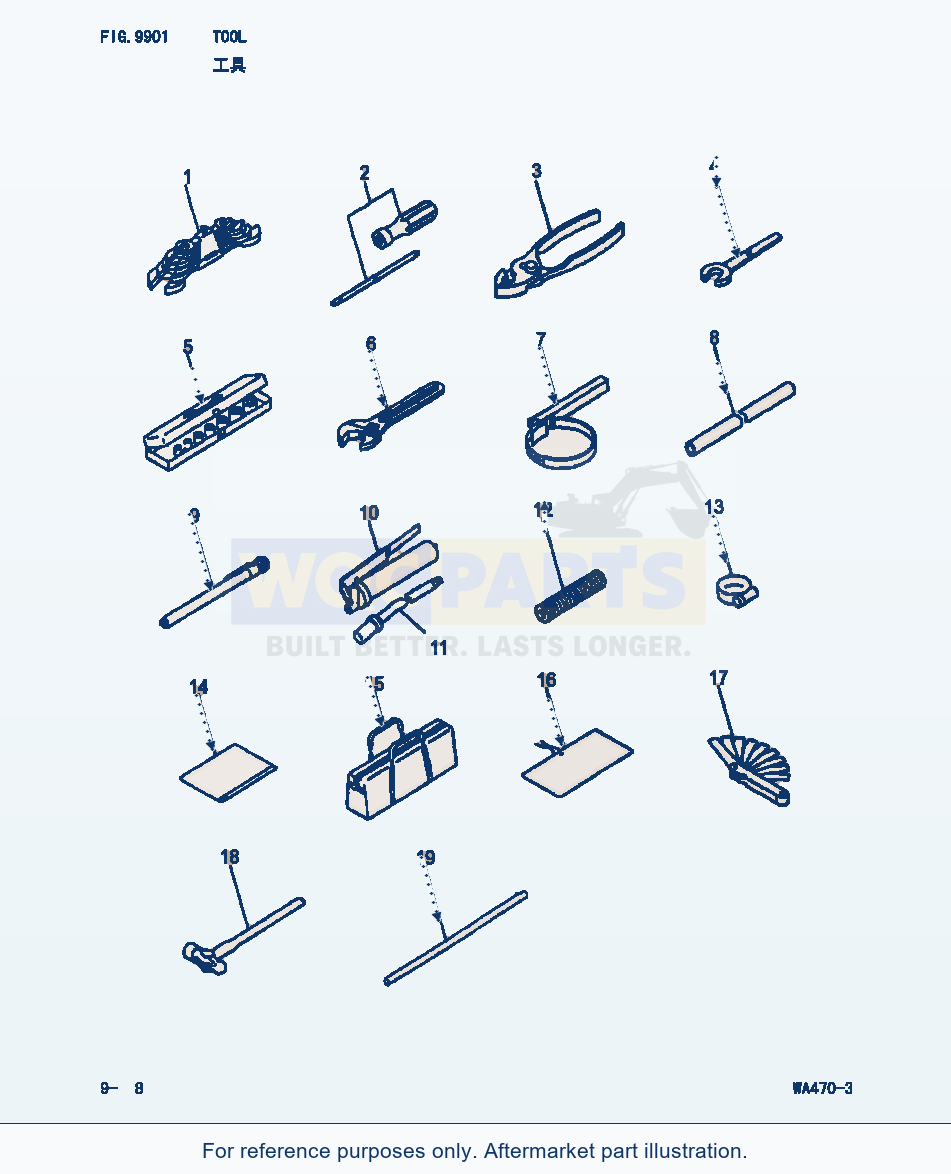

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 20 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WRENCH SETField_1: 25001- | 1 | Request quote | |||
| 2 | DRIVER SCREWField_1: 25001- | 1 | Request quote | |||
| 3 | PLIERSField_1: 25001- | 1 | Request quote | |||
| 4 | WRENCHField_1: 25001- | 1 | Request quote | |||
| 5 | SOCKET WRENCH SETField_1: 25001- | 1 | Request quote | |||
| 6 | WRENCHField_1: 25001- | 1 | Request quote | |||
| 7 | WRENCH FILTERField_1: 25001- | 1 | Request quote | |||
| 8 | BARField_1: 25001- | 1 | Request quote | |||
| 9 | GAUGE TIREField_1: 25001- | 1 | Request quote | |||
| 10 | GREASE PUMP ASS'YField_1: 25001- | 1 | Request quote | |||
| 11 | NOZZLEField_1: 25001- | 1 | Request quote | |||
| 12 | CARTRIDGE GREASEField_1: 25001- | 1 | Request quote | |||
| 13 | CLAMPField_1: 25001- | 1 | View product ↗ | |||
| 14 | BAG BILLField_1: 25001- | 1 | Request quote | |||
| 15 | BAG TOOLField_1: 25001- | 1 | Request quote | |||
| 16 | TAG DO NOT OPERATEField_1: 25219- | 1 | Request quote | |||
| 16 | TAG DO NOT OPERATEField_1: 25001-25218 | The part and the part specified in the line immediately above are interchangeable. | 1 | Request quote | |||
| 17 | GAUGE THINCKNESSField_1: 25001- | 1 | Request quote | |||
| 18 | HAMMERField_1: 25001- | 1 | Request quote | |||
| 19 | WRENCHField_1: 25001- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-3 Wheel Loader Tool (|000293) Parts
Use the Komatsu WA470-3 Wheel Loader Tool (|000293) Parts listing to identify aftermarket replacement parts within the 90[mark plate,tool and kit] section. This wheel loader application is listed for machine serial 25233-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 20 listed part occurrences, including wrench set (reference 423-981-Z010), driver screw (reference 423-981-Z020) and pliers (reference 423-981-Z030). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
