Komatsu WA470-3 Radiator (Transmission Oil Cooler Line) Parts
Komatsu WA470-3 radiator (transmission oil cooler line) parts for machine serial 53001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Cooling System / Radiator (Transmission Oil Cooler Line).
Checking current purchase options...

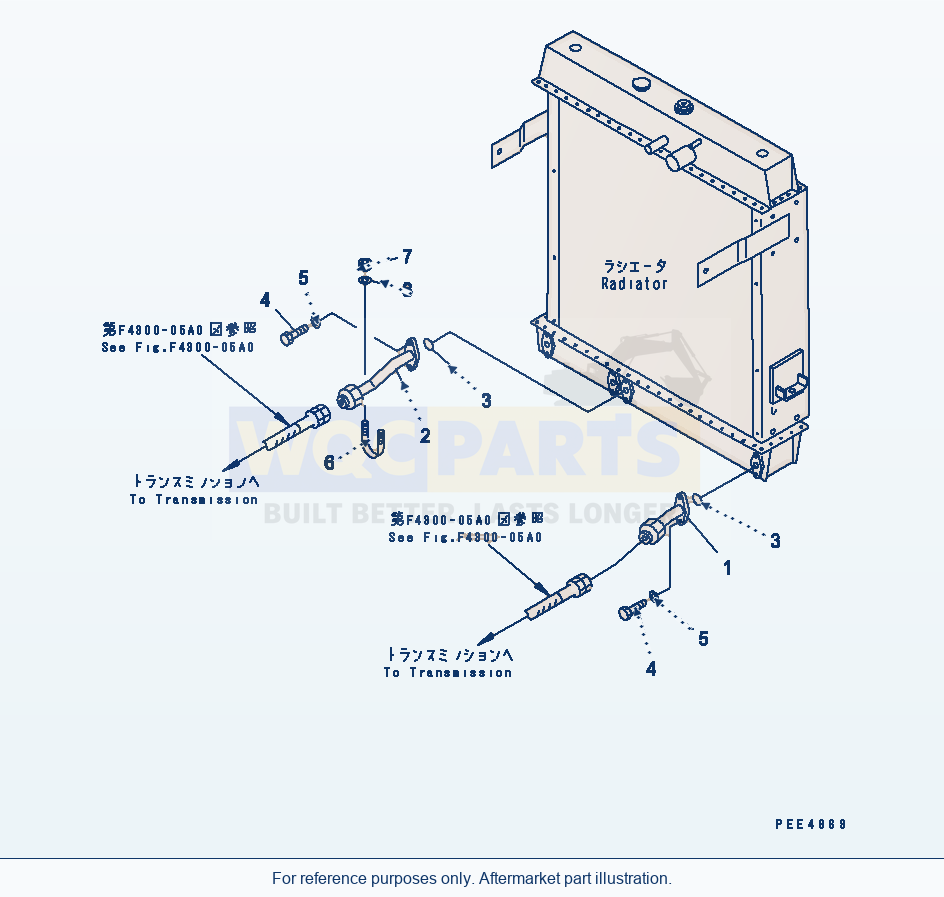

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 8 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TUBESN: 53001-UP | 1 | Request quote | |||
| 2 | TUBESN: 53001-UP | 1 | Request quote | |||
| 3 | O-RINGSN: 53001-UP | 2 | Request quote | |||
| 4 | BOLTSN: 53001-UP | 4 | Request quote | |||
| 5 | WASHERSN: 53001-UP | 4 | Request quote | |||
| 6 | CLIPSN: 53001-UP | 1 | Request quote | |||
| 7 | NUTSN: 53001-UP | 2 | Request quote | |||
| 8 | WASHERSN: 53001-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-3 Radiator (Transmission Oil Cooler Line) Parts
Use the Komatsu WA470-3 Radiator (Transmission Oil Cooler Line) Parts listing to identify aftermarket replacement parts within the cooling system section. This wheel loader application is listed for machine serial 53001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 8 listed part occurrences, including tube (reference 421-16-11184), tube (reference 421-16-21130) and clip (reference 07283-22738). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When comparing cooling-system parts, check the engine designation and any fan, pump or connection options recorded in the selected diagram. A matching machine family alone does not establish the cooling arrangement.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
