Komatsu WA470-3 Marks And Plates (For Log Grapple)(#54101-) Parts
Komatsu WA470-3 marks and plates (for log grapple)(#54101-) parts for machine serial 53001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Marks And Plates (For Log Grapple)(#54101-).
Checking current purchase options...

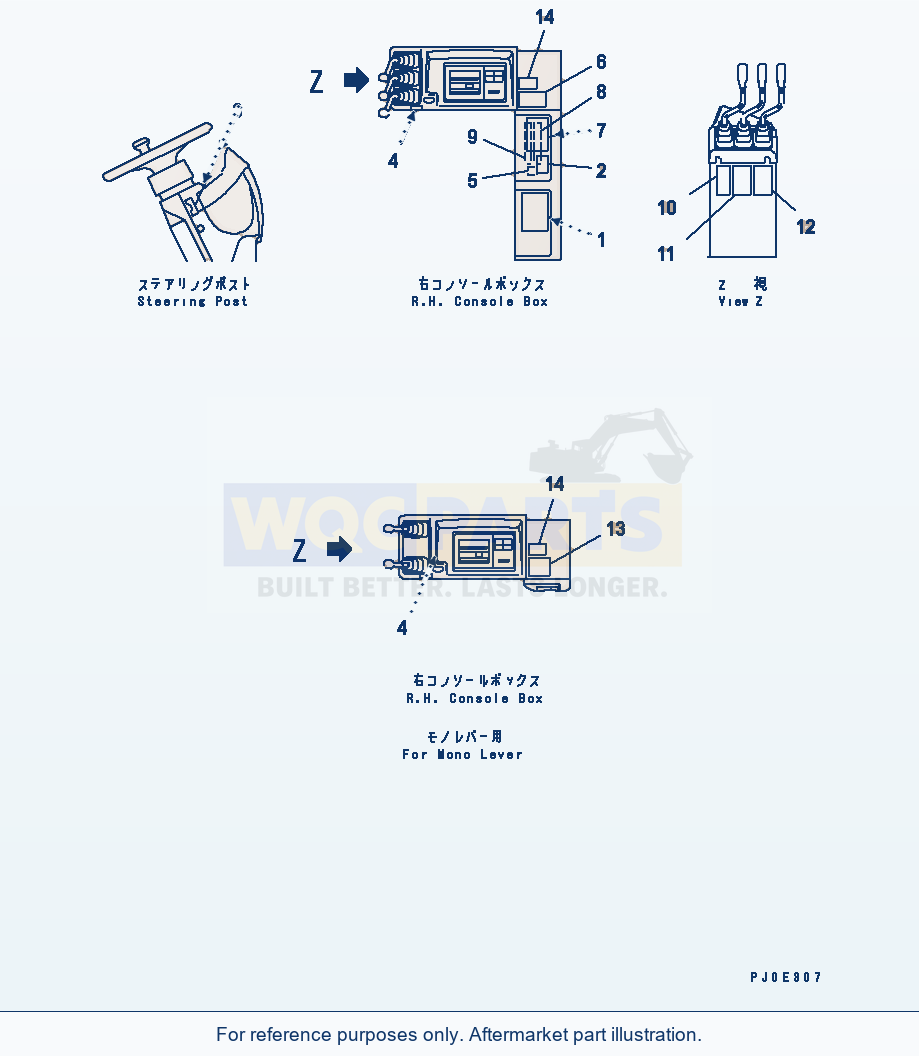

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 3 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE KITSN: 54101-UP | 1 | Request quote | |||
| 13 | PLATE, OPERATING,WORK EQUIPMENT LEVERSN: 54101-UP | 1 | Request quote | |||
| 14 | PLATE, OPERATING,LOG GRAPPLESN: 54101-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: PLATE, SAFETY,BEFORE OPERATING | QTY: 1 | OPTIONS: SN: 54101-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: PLATE, CAUTION,EMERGENCY PARKING BRAKE CANCEL | QTY: 1 | OPTIONS: SN: 54101-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: PLATE, OPERATING,STARTING SWITCH | QTY: 1 | OPTIONS: SN: 54101-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: PLATE, OPERATING,WORK EQUIPMENT LEVER LOCK | QTY: 1 | OPTIONS: SN: 54101-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: PLATE, OPERATING,EMERGENCY PARKING BRAKE SWITCH | QTY: 1 | OPTIONS: SN: 54101-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: PLATE, OPERATING,WORK EQUIPMENT LEVER | QTY: 1 | OPTIONS: SN: 54101-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE, NAME,RELAY | QTY: 1 | OPTIONS: SN: 54101-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: PLATE, NAME,FUSE | QTY: 1 | OPTIONS: SN: 54101-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: PLATE, NAME,FUSE | QTY: 1 | OPTIONS: SN: 54101-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: PLATE, SAFETY,INSPECTION | QTY: 1 | OPTIONS: SN: 54101-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: PLATE, SAFETY,WORK EQUIPMENT LEVER LOCK | QTY: 1 | OPTIONS: SN: 54101-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: PLATE, SAFETY | QTY: 1 | OPTIONS: SN: 54101-UP
(FOR MONO LEVER)
Using Komatsu WA470-3 Marks And Plates (For Log Grapple)(#54101-) Parts
Use the Komatsu WA470-3 Marks And Plates (For Log Grapple)(#54101-) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 53001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 3 listed part occurrences, including plate kit (reference 421-93-21810), plate, operating,work equipment lever (reference 09674-10001) and plate, operating,log grapple (reference 416-881-1170). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
