Komatsu WA470-3 Transmission Control Valve (Lower Valve) Parts
Komatsu WA470-3 transmission control valve (lower valve) parts for machine serial 53001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Power Train / Transmission Control Valve (Lower Valve).
Checking current purchase options...

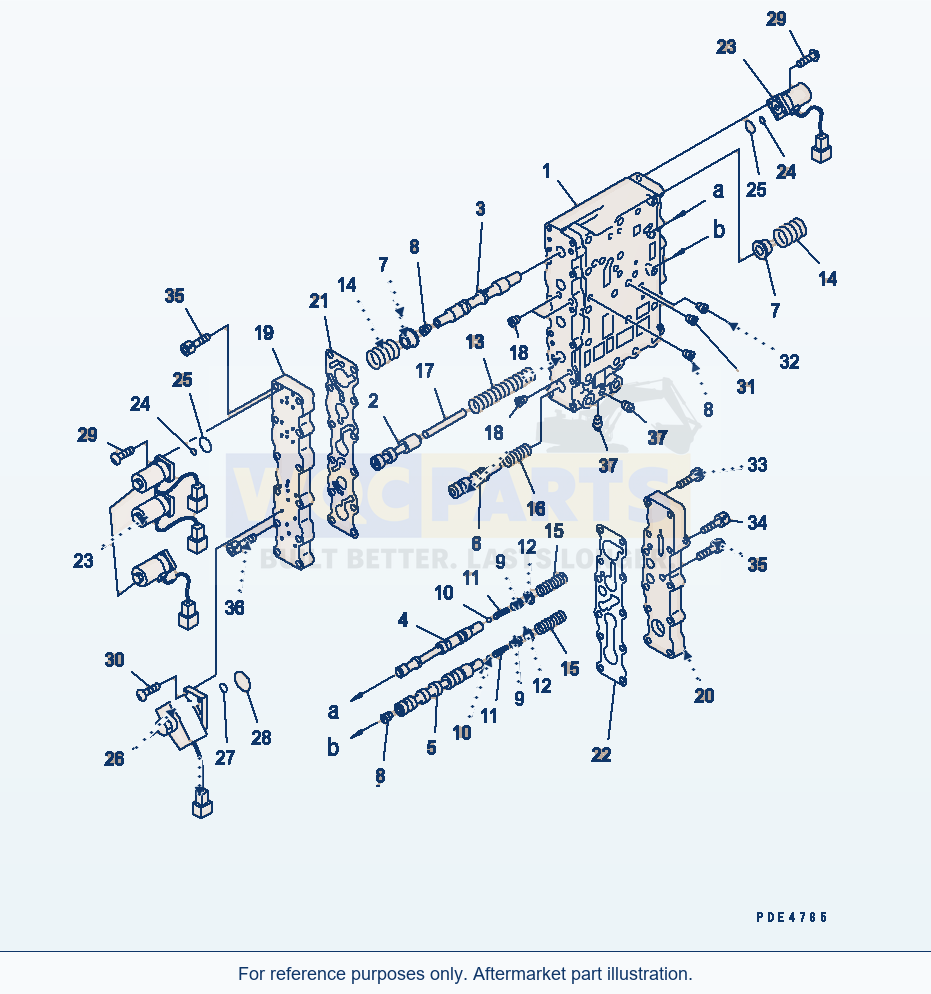

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 44 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 5 | TRANSMISSION ASS'YSN: 54001-UP | 1 | Request quote | |||
| 6 | TRANSMISSION ASS'YSN: 53001-54000 | 1 | Request quote | |||
| 8 | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)SN: 54001-UP | 1 | Request quote | |||
| 9 | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)SN: 53001-54000 | 1 | Request quote | |||
| 11 | VALVE ASS'Y,TRANSMISSIONSN: (106844)-UP | 1 | Request quote | |||
| 12 | VALVE ASS'Y,TRANSMISSIONSN: 53001-(106843) | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 14 | VALVE ASS'Y,LOWERSN: 53001-UP | 1 | Request quote | |||
| 2 | VALVE,PRIORITYSN: 53001-UP | 1 | Request quote | |||
| 3 | VALVE,F-RSN: 53001-UP | 1 | Request quote | |||
| 4 | VALVE,H-LSN: 53001-UP | 1 | Request quote | |||
| 5 | VALVE,SPEEDSN: 53001-UP | 1 | Request quote | |||
| 6 | VALVE,BRAKESN: 53001-UP | 1 | Request quote | |||
| 7 | SLEEVESN: 53001-UP | 2 | Request quote | |||
| 8 | PLUGSN: 53001-UP | 3 | Request quote | |||
| 9 | PLUGSN: 53001-UP | 2 | Request quote | |||
| 10 | BALL,CHECK VALVESN: 53001-UP | 2 | View product ↗ | |||
| 11 | SPRING,CHECK VALVESN: 53001-UP | 2 | Request quote | |||
| 12 | SPACERSN: 53001-UP | 2 | Request quote | |||
| 13 | SPRING,PRIORITY VALVESN: 53001-UP | 1 | Request quote | |||
| 14 | SPRING,F-R VALVESN: 53001-UP | 2 | Request quote | |||
| 15 | SPRING,H-L AND SPEED VALVESN: 53001-UP | 2 | Request quote | |||
| 16 | SPRING,BRAKE VALVESN: 53001-UP | 1 | Request quote | |||
| 17 | STOPPERSN: 53001-UP | 1 | Request quote | |||
| 18 | PLUGSN: 53001-UP | 3 | Request quote | |||
| 19 | COVER,LOWER VALVE, L.H.SN: 53001-UP | 1 | Request quote | |||
| 20 | COVER,LOWER VALVE, R.H.SN: 53001-UP | 1 | Request quote | |||
| 21 | GASKET,LOWER VALVE, L.H. (K2)SN: 53001-UP | 1 | View product ↗ | |||
| 22 | GASKET,LOWER VALVE, R.H. (K2)SN: 53001-UP | 1 | View product ↗ | |||
| 23 | SOLENOID VALVESN: 53001-UP | 4 | View product ↗ | |||
| 23 | VALVE ASS'Y,SOLENOIDSN: (53001-(106492)) | This shows a discontinued part. The part specified in the above line is supplied instead. | 4 | Request quote | |||
| 24 | O-RING (K2)SN: 53001-(106492) | 1 | View product ↗ | |||
| 25 | O-RING (K2)SN: 53001-(106492) | 1 | View product ↗ | |||
| 26 | VALVE ASS'Y,SOLENOIDSN: 53001-UP | 1 | View product ↗ | |||
| 27 | O-RING (K2)SN: 53001-UP | 1 | View product ↗ | |||
| 28 | O-RING (K2)SN: 53001-UP | 1 | View product ↗ | |||
| 29 | SCREWSN: 53001-UP | 16 | Request quote | |||
| 30 | SCREWSN: 53001-UP | 4 | Request quote | |||
| 31 | PLUGSN: 53001-UP | 1 | Request quote | |||
| 32 | PLUGSN: 53001-UP | 1 | Request quote | |||
| 33 | BOLTSN: 53001-UP | 7 | Request quote | |||
| 34 | BOLTSN: 53001-UP | 2 | Request quote | |||
| 35 | BOLTSN: 53001-UP | 12 | Request quote | |||
| 36 | BOLTSN: 53001-UP | 2 | Request quote | |||
| 37 | PLUGSN: 53001-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-69A0.
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-67A0, 68A1, 69A0.
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-61A0 TO F4350-63A0.
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: BODY,LOWER VALVE | QTY: 1 | OPTIONS: SN: 53001-UP
Using Komatsu WA470-3 Transmission Control Valve (Lower Valve) Parts
Use the Komatsu WA470-3 Transmission Control Valve (Lower Valve) Parts listing to identify aftermarket replacement parts within the power train section. This wheel loader application is listed for machine serial 53001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 44 listed part occurrences, including transmission ass'y (reference 714-07-10011), transmission ass'y (reference 714-07-10010) and transmission ass'y,(for emergency steering) (reference 714-07-10051). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
