Komatsu WA470-3 Transmission (Reverse And 2Nd Clutch) Parts
Komatsu WA470-3 transmission (reverse and 2nd clutch) parts for machine serial 53001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Power Train / Transmission (Reverse And 2Nd Clutch).
Checking current purchase options...

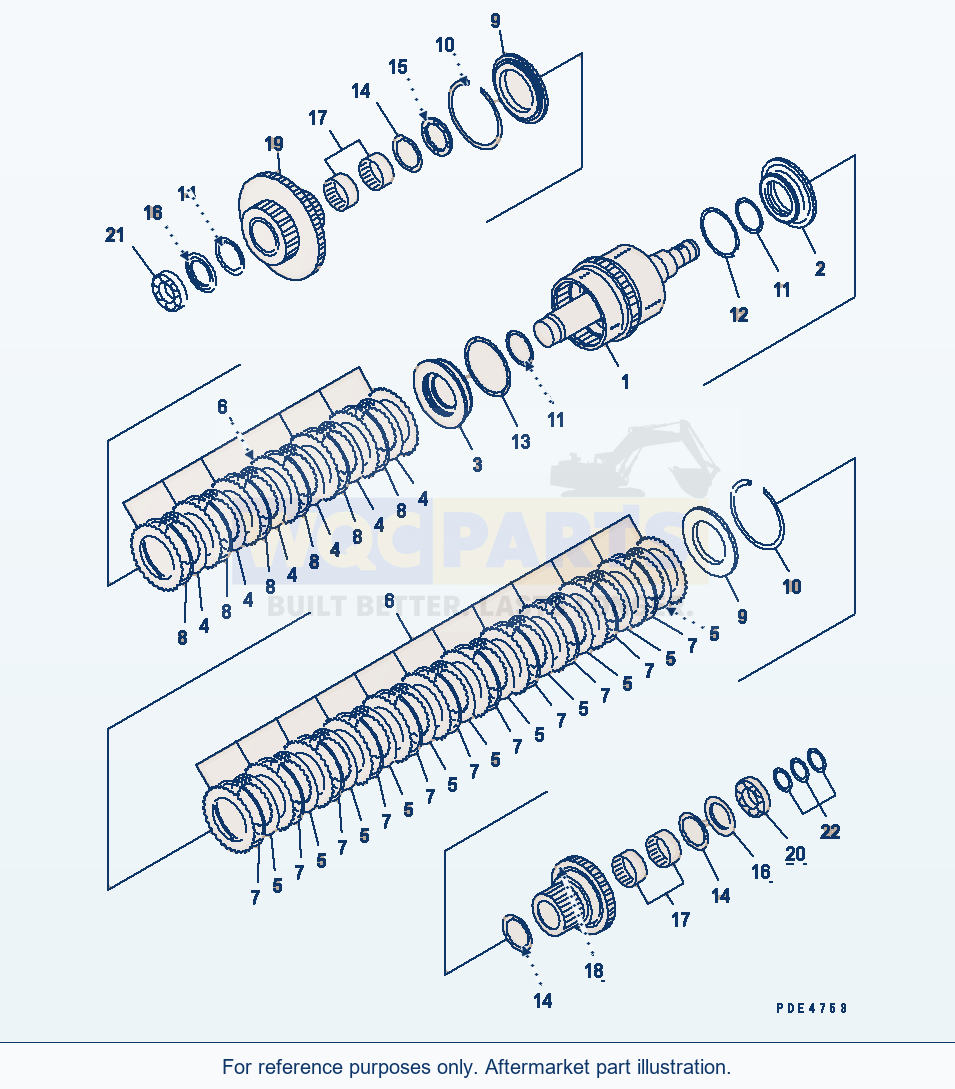

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 35 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 9 | TRANSMISSION ASS'YSN: 54001-UP | 1 | Request quote | |||
| 10 | TRANSMISSION ASS'YSN: 53001-54000 | 1 | Request quote | |||
| 11 | TRANSMISSION ASS'YSN: 54001-UP | 1 | Request quote | |||
| 12 | TRANSMISSION ASS'YSN: 53001-54000 | 1 | Request quote | |||
| 13 | TRANSMISSION ASS'YSN: 54001-UP | 1 | Request quote | |||
| 14 | TRANSMISSION ASS'YSN: 53001-54000 | 1 | Request quote | |||
| 15 | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)SN: 54001-UP | 1 | Request quote | |||
| 16 | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)SN: 53001-54000 | 1 | Request quote | |||
| 19 | CLUTCH ASS'Y,REVERSE AND 2NDSN: 53001-UP | 1 | Request quote | |||
| 1 | SHAFT ASS'YSN: 53001-UP | 1 | Request quote | |||
| 2 | PISTON,REVERSESN: 53001-UP | 1 | Request quote | |||
| 3 | PISTON,2NDSN: 53001-UP | 1 | View product ↗ | |||
| 4 | DISC,2NDSN: 53001-UP | 6 | View product ↗ | |||
| 5 | DISC,REVERSESN: 53001-UP | 11 | View product ↗ | |||
| 6 | PLATE,SEPARATESN: 53001-UP | 19 | View product ↗ | |||
| 7 | SPRING,WAVESN: 53001-UP | 11 | View product ↗ | |||
| 7 | SPRING,WAVESN: (53001-(201977)) | This shows a discontinued part. The part specified in the above line is supplied instead. | 11 | View product ↗ | |||
| 8 | SPRING,WAVESN: 53001-UP | 6 | View product ↗ | |||
| 8 | SPRING,WAVESN: (53001-(201980)) | This shows a discontinued part. The part specified in the above line is supplied instead. | 6 | View product ↗ | |||
| 9 | PLATE,ENDSN: 53001-UP | 2 | View product ↗ | |||
| 10 | RING,SEALSN: 53001-UP | 2 | Request quote | |||
| 11 | RING,SEALSN: 53001-UP | 2 | View product ↗ | |||
| 12 | RING,SEALSN: 53001-UP | 1 | View product ↗ | |||
| 13 | RING,SEALSN: 53001-UP | 1 | View product ↗ | |||
| 14 | WASHER,THRUSTSN: 53001-UP | 4 | View product ↗ | |||
| 15 | WASHER,THRUSTSN: 53001-UP | 1 | View product ↗ | |||
| 16 | SPACERSN: 53001-UP | 2 | Request quote | |||
| 17 | BEARING,NEEDLESN: 54158-UP | 4 | View product ↗ | |||
| 17 | BEARING,NEEDLESN: (106986)-(107853) | 4 | View product ↗ | |||
| 17 | BEARING,NEEDLESN: 53001-(106985) | The part specified in the line above can be used instead of this part | 4 | View product ↗ | |||
| 18 | GEAR, 46 TEETH,REVERSESN: 53001-UP | 1 | Request quote | |||
| 19 | GEAR, 26-50 TEETH,2NDSN: 53001-UP | 1 | Request quote | |||
| 20 | BEARINGSN: 53001-UP | 1 | View product ↗ | |||
| 21 | BEARINGSN: 53001-UP | 1 | Request quote | |||
| 22 | RING,SEALSN: 53001-UP | 3 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-69A0.
Using Komatsu WA470-3 Transmission (Reverse And 2Nd Clutch) Parts
Use the Komatsu WA470-3 Transmission (Reverse And 2Nd Clutch) Parts listing to identify aftermarket replacement parts within the power train section. This wheel loader application is listed for machine serial 53001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 35 listed part occurrences, including transmission ass'y (reference 714-07-10011), transmission ass'y (reference 714-07-10010) and transmission ass'y (reference 714-07-10051). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
