Komatsu WA470-3 Wheel Loader Log Grapple(#50001-) Parts

Komatsu WA470-3 log grapple(#50001-) parts for machine serial 50001-52999 (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Work Equipment / Log Grapple(#50001-).

WA470-3Machine serial 50001-52999 (OVERSEAS VERSION)48 part occurrences

Checking current purchase options...

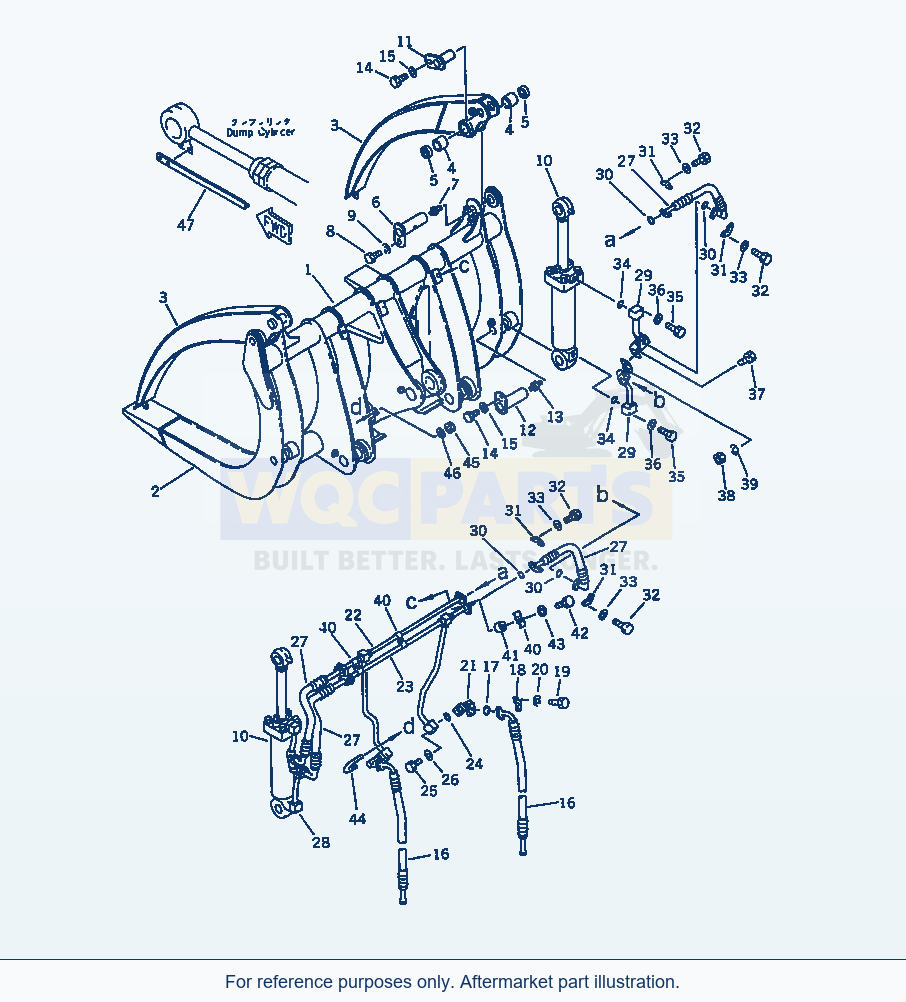

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 48 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	CARRIERSN: 50001-UP	1	Request quote
2	FORK (WELDED)SN: 50001-UP	2	Request quote
3	ARMSN: 50001-UP	2	Request quote
4	BUSHINGSN: 50001-UP	4	View product ↗
5	SEAL,DUSTSN: 50001-UP	4	View product ↗
6	PINSN: 50001-UP	2	Request quote
7	FITTING,GREASESN: 50001-UP	2	View product ↗
8	BOLTSN: 50001-UP	2	View product ↗
9	WASHERSN: 50001-UP	2	View product ↗
10	CYLINDER ASS'Y,GRAPPLE (SEE FIG.6371)SN: 50001-UP	2	Request quote
11	PINSN: 50001-UP	2	Request quote
12	PINSN: 50001-UP	2	Request quote
13	FITTING,GREASESN: 50001-UP	2	View product ↗
14	BOLTSN: 50001-UP	4	View product ↗
15	WASHERSN: 50001-UP	4	View product ↗
16	HOSESN: 50001-UP	2	Request quote
17	O-RINGSN: 50001-UP	2	View product ↗
18	FLANGE,SPLITSN: 50001-UP	4	View product ↗
19	BOLTSN: 50001-UP	8	Request quote
20	WASHERSN: 50001-UP	8	Request quote
21	JOINT,SWIVELSN: 50001-UP	2	Request quote
22	TUBE,L.H.SN: 50001-UP	1	Request quote
23	TUBE,R.H.SN: 50001-UP	1	Request quote
24	O-RINGSN: 50001-UP	2	Request quote
25	BOLTSN: 50001-UP	8	Request quote
26	WASHERSN: 50001-UP	8	Request quote
27	HOSESN: 50001-UP	4	Request quote
28	TUBE,L.H.SN: 50001-UP	2	Request quote
29	TUBE,R.H.SN: 50001-UP	2	Request quote
30	O-RINGSN: 50001-UP	8	Request quote
31	FLANGE,SPLITSN: 50001-UP	16	Request quote
32	BOLTSN: 50001-UP	32	Request quote
33	WASHERSN: 50001-UP	32	View product ↗
34	O-RINGSN: 50001-UP	4	View product ↗
35	BOLTSN: 50001-UP	16	Request quote
36	WASHERSN: 50001-UP	16	Request quote
37	BOLTSN: 50001-UP	2	View product ↗
38	NUTSN: 50001-UP	2	View product ↗
39	WASHERSN: 50001-UP	2	View product ↗
40	CLAMPSN: 50001-UP	3	Request quote
41	SPACERSN: 50001-UP	3	Request quote
42	BOLTSN: 50001-UP	3	Request quote
43	WASHERSN: 50001-UP	3	View product ↗
44	CLIPSN: 50001-UP	2	Request quote
45	NUTSN: 50001-UP	4	View product ↗
46	WASHERSN: 50001-UP	4	View product ↗
47	BARSN: 50001-UP	1	Request quote
48	PLATE, OPERATING,(NOT SHOWN)SN: 50001-UP	1	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
