Komatsu WA470-5 Wheel Loader Fan, Fan Drive Motor (Gj2K2673) Parts
Komatsu WA470-5 fan, fan drive motor (gj2k2673) parts for machine serial WA470-5H50051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 01 Engine, Engine Mounting / Fan, Fan Drive Motor (Gj2K2673).
Checking current purchase options...

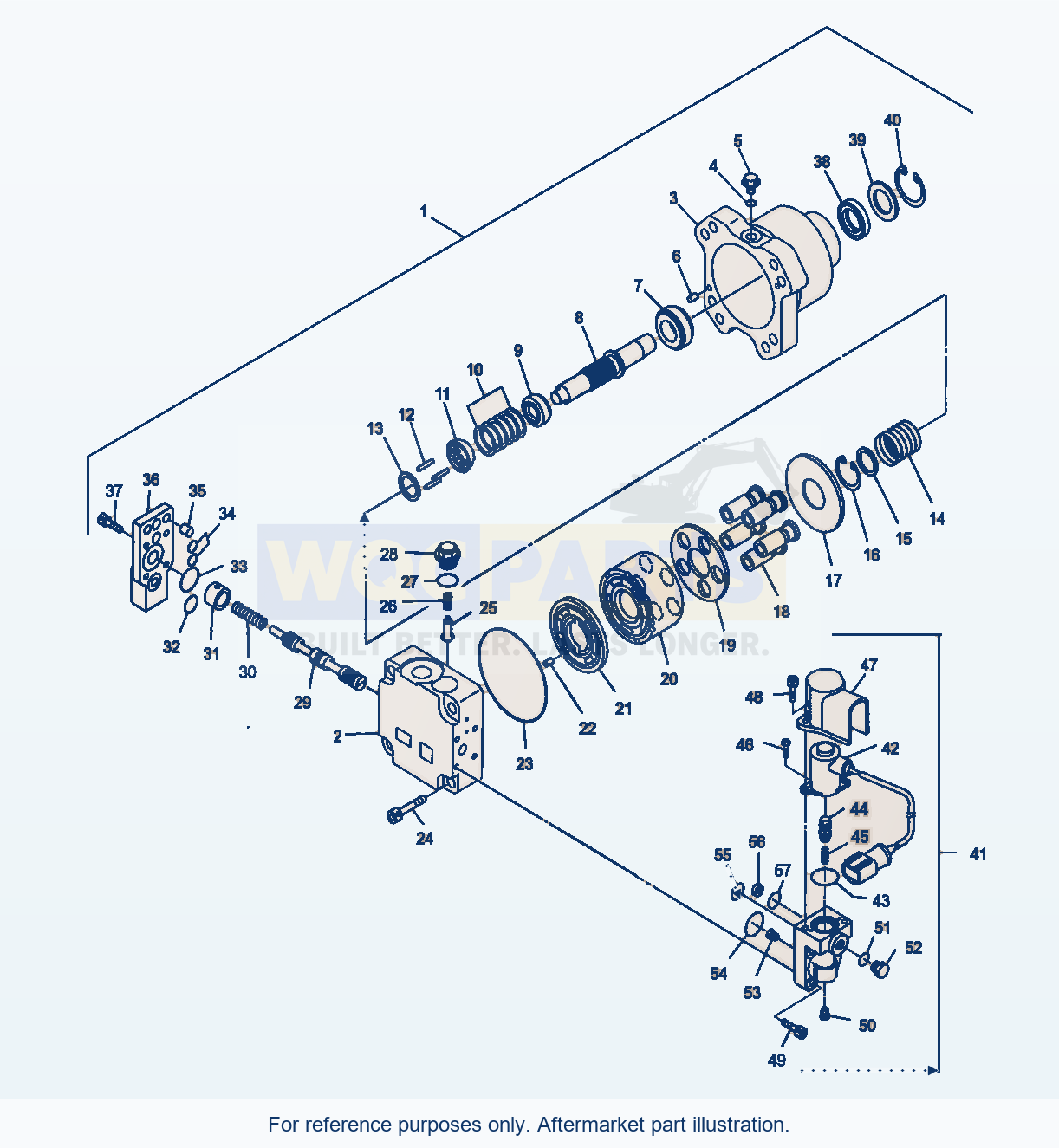

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 52 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ENGINE | 1 | Request quote | |||
| 4 | O-RING | 1 | View product ↗ | |||
| 5 | PLUG | 1 | View product ↗ | |||
| 6 | DOWEL | 2 | View product ↗ | |||
| 7 | BALL BEARING | 1 | Request quote | |||
| 9 | BALL BEARING | 1 | Request quote | |||
| 10 | KIT | 1 | Request quote | |||
| 11 | PILOT | 1 | Request quote | |||
| 12 | PIN | 3 | Request quote | |||
| 13 | SPACER | 1 | Request quote | |||
| 14 | COMPRESSION SPRING | 1 | Request quote | |||
| 15 | SPACER | 1 | Request quote | |||
| 16 | CIRCLIP | 1 | Request quote | |||
| 17 | PLATE | 1 | Request quote | |||
| 18 | PISTON | 5 | Request quote | |||
| 19 | PLATE | 1 | Request quote | |||
| 20 | CYLINDER | 1 | Request quote | |||
| 21 | PLATE | 1 | Request quote | |||
| 22 | PIN | 1 | View product ↗ | |||
| 23 | O-RING | 1 | Request quote | |||
| 24 | SCREW | 4 | Request quote | |||
| 25 | VALVE | 1 | Request quote | |||
| 26 | COMPRESSION SPRING | 1 | Request quote | |||
| 27 | O-RING | 1 | View product ↗ | |||
| 28 | PLUG | 1 | Request quote | |||
| 30 | COMPRESSION SPRING | 1 | Request quote | |||
| 31 | SPACER | 1 | Request quote | |||
| 32 | O-RING | 1 | Request quote | |||
| 33 | O-RING | 1 | Request quote | |||
| 34 | O-RING | 2 | View product ↗ | |||
| 35 | PIN | 2 | View product ↗ | |||
| 36 | COVER | 1 | Request quote | |||
| 37 | SCREW | 4 | Request quote | |||
| 38 | SHAFT SEAL | 1 | View product ↗ | |||
| 39 | SPACER | 1 | Request quote | |||
| 40 | CIRCLIP | 1 | View product ↗ | |||
| 41 | VALVE ASSEMBLY | 1 | Request quote | |||
| 42 | MAGNET | 1 | Request quote | |||
| 43 | O-RING | 1 | Request quote | |||
| 45 | COMPRESSION SPRING | 1 | Request quote | |||
| 46 | SCREW | 2 | Request quote | |||
| 47 | COVERING | 1 | Request quote | |||
| 48 | SCREW | 2 | Request quote | |||
| 49 | SCREW | 4 | Request quote | |||
| 50 | PLUG | 1 | Request quote | |||
| 51 | O-RING | 1 | View product ↗ | |||
| 52 | PLUG | 1 | View product ↗ | |||
| 53 | THROTTLE | 1 | Request quote | |||
| 54 | O-RING | 1 | Request quote | |||
| 55 | O-RING | 1 | View product ↗ | |||
| 56 | FILTER | 1 | View product ↗ | |||
| 57 | O-RING | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
HOUSING
HOUSING
SHAFT
SLIDER
SLIDER
Using Komatsu WA470-5 Wheel Loader Fan, Fan Drive Motor (Gj2K2673) Parts
Use the Komatsu WA470-5 Wheel Loader Fan, Fan Drive Motor (Gj2K2673) Parts listing to identify aftermarket replacement parts within the 01 engine, engine mounting section. This wheel loader application is listed for machine serial WA470-5H50051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 52 listed part occurrences, including engine (reference 708-7S-00310), plug (reference 07040-11007) and dowel (reference 04020-00616). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
