Komatsu WA470-5 Wheel Loader Rear Frame (Gj2K2711) Parts
Komatsu WA470-5 rear frame (gj2k2711) parts for machine serial WA470-5H50051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 10 Frame / Rear Frame (Gj2K2711).
Checking current purchase options...

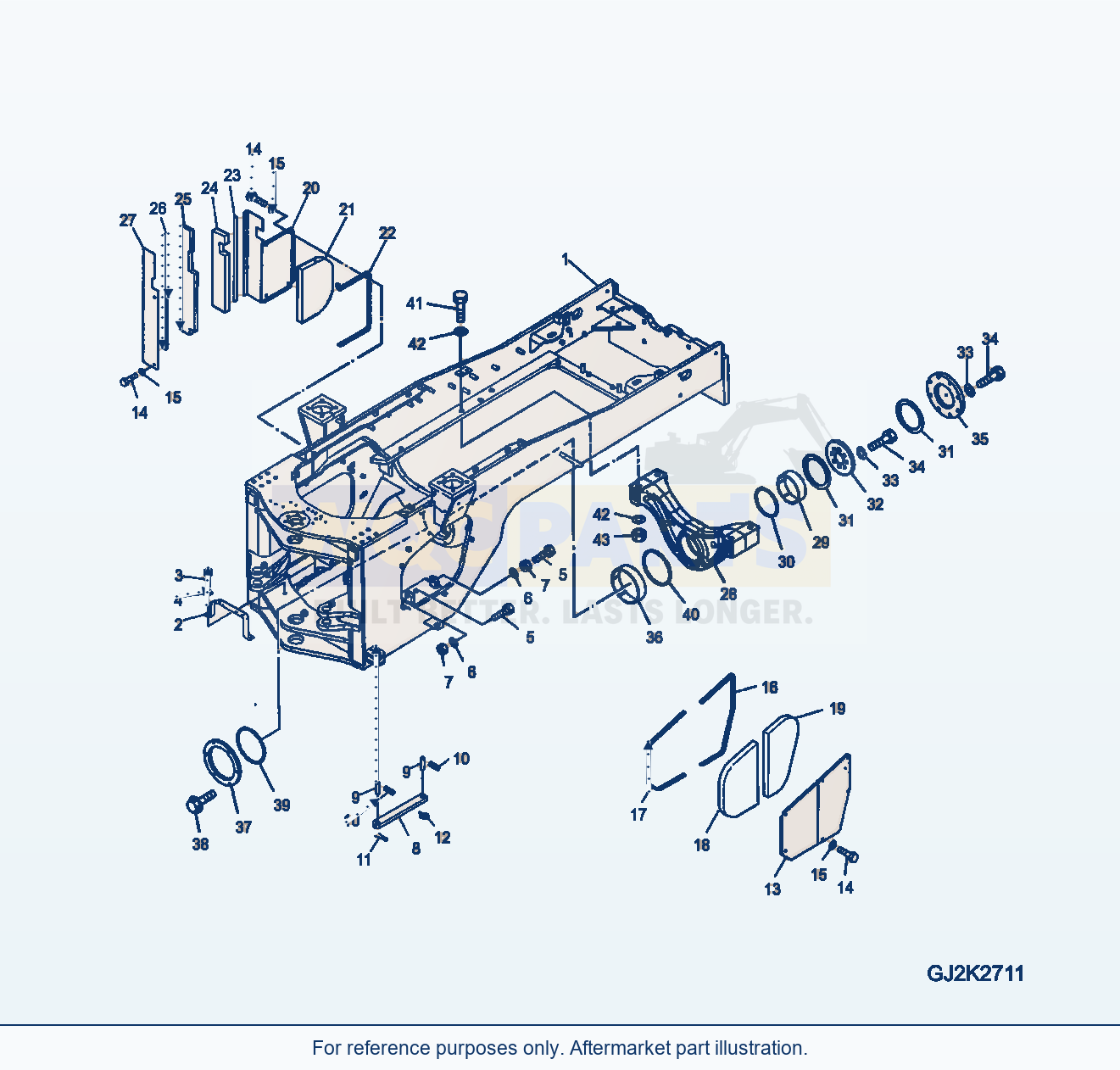

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 44 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | REAR FRAME (WITHOUT BRAKE COOLING)SN: H50051-UP | 1 | Request quote | |||
| 1 | REAR FRAME (WITH BRAKE COOLING)SN: H50051-UP | 1 | Request quote | |||
| 2 | PROTECTORSN: H50051-UP | 1 | Request quote | |||
| 3 | SCREWSN: H50051-UP | 2 | Request quote | |||
| 4 | PLAIN WASHERSN: H50051-UP | 2 | View product ↗ | |||
| 5 | SCREWSN: H50051-UP | 4 | Request quote | |||
| 6 | PLAIN WASHERSN: H50051-UP | 4 | View product ↗ | |||
| 7 | NUTSN: H50051-UP | 4 | View product ↗ | |||
| 8 | BARSN: H50051-UP | 1 | Request quote | |||
| 9 | PINSN: H50051-UP | 2 | Request quote | |||
| 10 | PEGSN: H50051-UP | 1 | Request quote | |||
| 11 | COTTERSN: H50051-UP | 1 | Request quote | |||
| 12 | ELECTRICAL PLUGSN: H50051-UP | 1 | Request quote | |||
| 13 | COVERSN: H50051-UP | 1 | Request quote | |||
| 14 | SCREWSN: H50051-UP | 6 | View product ↗ | |||
| 15 | PLAIN WASHERSN: H50051-UP | 8 | View product ↗ | |||
| 16 | GASKETSN: H50051-UP | 1 | Request quote | |||
| 17 | GASKETSN: H50051-UP | 1 | Request quote | |||
| 18 | INSULATING MATSN: H50051-UP | 1 | Request quote | |||
| 19 | INSULATING MATSN: H50051-UP | 1 | Request quote | |||
| 20 | COVERSN: H50051-UP | 1 | Request quote | |||
| 21 | INSULATING MATSN: H50051-UP | 1 | Request quote | |||
| 22 | GASKETSN: H50051-UP | 1 | Request quote | |||
| 23 | GASKETSN: H50051-UP | 1 | Request quote | |||
| 24 | INSULATING MATSN: H50051-UP | 1 | Request quote | |||
| 25 | INSULATING MATSN: H50051-UP | 1 | Request quote | |||
| 26 | GASKETSN: H50051-UP | 2 | Request quote | |||
| 27 | SHEETSN: H50051-UP | 1 | Request quote | |||
| 28 | CARRIERSN: H50051-UP | 1 | Request quote | |||
| 29 | BUSHINGSN: H50051-UP | 1 | View product ↗ | |||
| 30 | GASKETSN: H50051-UP | 1 | View product ↗ | |||
| 31 | THRUST WASHERSN: H50051-UP | 2 | View product ↗ | |||
| 32 | PLATESN: H50051-UP | 1 | Request quote | |||
| 33 | PLAIN WASHERSN: H50051-UP | 16 | View product ↗ | |||
| 34 | SCREWSN: H50051-UP | 16 | View product ↗ | |||
| 35 | COVERSN: H50051-UP | 1 | Request quote | |||
| 36 | BUSHINGSN: H50051-UP | 1 | View product ↗ | |||
| 37 | DISCSN: H50051-UP | 1 | Request quote | |||
| 38 | SCREWSN: H50051-UP | 6 | View product ↗ | |||
| 39 | GASKETSN: H50051-UP | 1 | View product ↗ | |||
| 40 | GASKETSN: H50051-UP | 1 | View product ↗ | |||
| 41 | SCREWSN: H50051-UP | 4 | Request quote | |||
| 42 | PLAIN WASHERSN: H50051-UP | 8 | View product ↗ | |||
| 43 | NUTSN: H50051-UP | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-5 Wheel Loader Rear Frame (Gj2K2711) Parts
Use the Komatsu WA470-5 Wheel Loader Rear Frame (Gj2K2711) Parts listing to identify aftermarket replacement parts within the 10 frame section. This wheel loader application is listed for machine serial WA470-5H50051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 44 listed part occurrences, including rear frame (without brake cooling) (reference 421-46-H2090), rear frame (with brake cooling) (reference 421-U44-4120) and protector (reference 421-46-32160). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
