Komatsu WA470-5 Wheel Loader Soundproofing Of Cabin Parts
Komatsu WA470-5 soundproofing of cabin parts for machine serial WA470-5H50051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 11 Drivers Cab / Soundproofing Of Cabin.
Checking current purchase options...

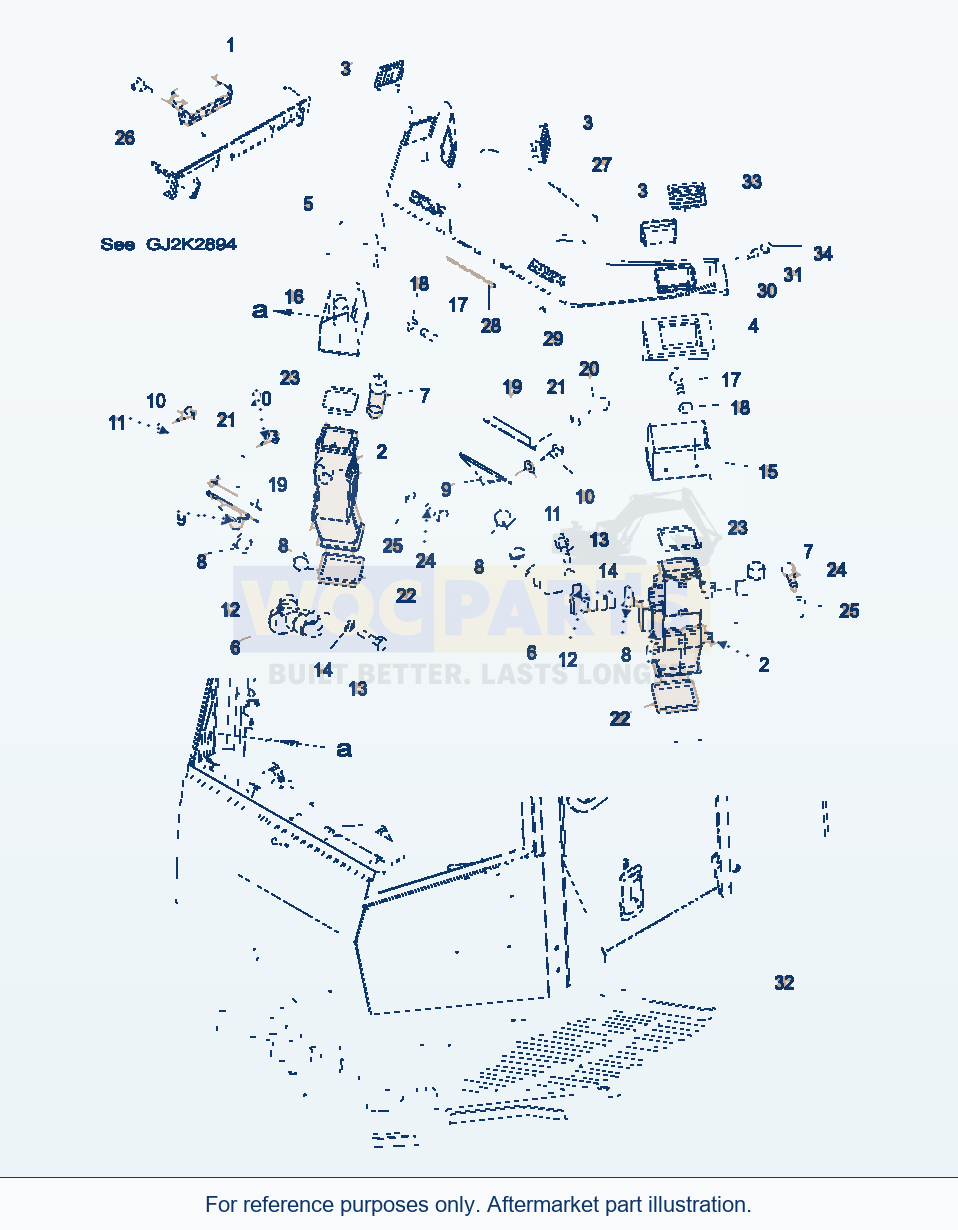

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 33 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ACTUATER | 1 | Request quote | |||
| 2 | DUCT ASSEMBLYK0210-51A0 | 2 | Request quote | |||
| 3 | GRILLE | 4 | Request quote | |||
| 4 | INSULATING MAT | 1 | Request quote | |||
| 5 | INSULATING MAT | 1 | Request quote | |||
| 6 | HOSE | 2 | Request quote | |||
| 7 | CONNECTION | 2 | Request quote | |||
| 8 | CLIP | 4 | View product ↗ | |||
| 9 | AIR OUTLET | 2 | Request quote | |||
| 10 | SCREW | 4 | Request quote | |||
| 11 | PLAIN WASHER | 4 | Request quote | |||
| 12 | CLIP | 2 | Request quote | |||
| 13 | SCREW | 2 | Request quote | |||
| 14 | PLAIN WASHER | 2 | View product ↗ | |||
| 15 | AIR DUCT | 1 | Request quote | |||
| 16 | AIR DUCT | 1 | Request quote | |||
| 17 | SCREW | 4 | View product ↗ | |||
| 18 | PLAIN WASHER | 4 | View product ↗ | |||
| 19 | PLATE | 2 | Request quote | |||
| 20 | SCREW | 4 | Request quote | |||
| 21 | PLAIN WASHER | 4 | Request quote | |||
| 22 | GASKET | 2 | Request quote | |||
| 23 | GASKET | 2 | Request quote | |||
| 24 | SCREW | 8 | View product ↗ | |||
| 25 | PLAIN WASHER | 8 | View product ↗ | |||
| 26 | SCREW | 4 | Request quote | |||
| 27 | CLADDING | 1 | Request quote | |||
| 28 | GASKET | 1 | Request quote | |||
| 29 | PLUG | 2 | Request quote | |||
| 30 | DISC | 4 | Request quote | |||
| 31 | SCREW | 4 | Request quote | |||
| 32 | MATTING | 1 | Request quote | |||
| 33 | CAP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-5 Wheel Loader Soundproofing Of Cabin Parts
Use the Komatsu WA470-5 Wheel Loader Soundproofing Of Cabin Parts listing to identify aftermarket replacement parts within the 11 drivers cab section. This wheel loader application is listed for machine serial WA470-5H50051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 33 listed part occurrences, including actuater (reference 421-07-31240), duct assembly (reference 425-07-21152) and grille (reference 201-979-7820). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
