Komatsu WA470-5 Wheel Loader Radiator (Fan Drive)(#80100-80633) Parts
Komatsu WA470-5 radiator (fan drive)(#80100-80633) parts for machine serial 70001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Cooling System / Radiator (Fan Drive)(#80100-80633).
Checking current purchase options...

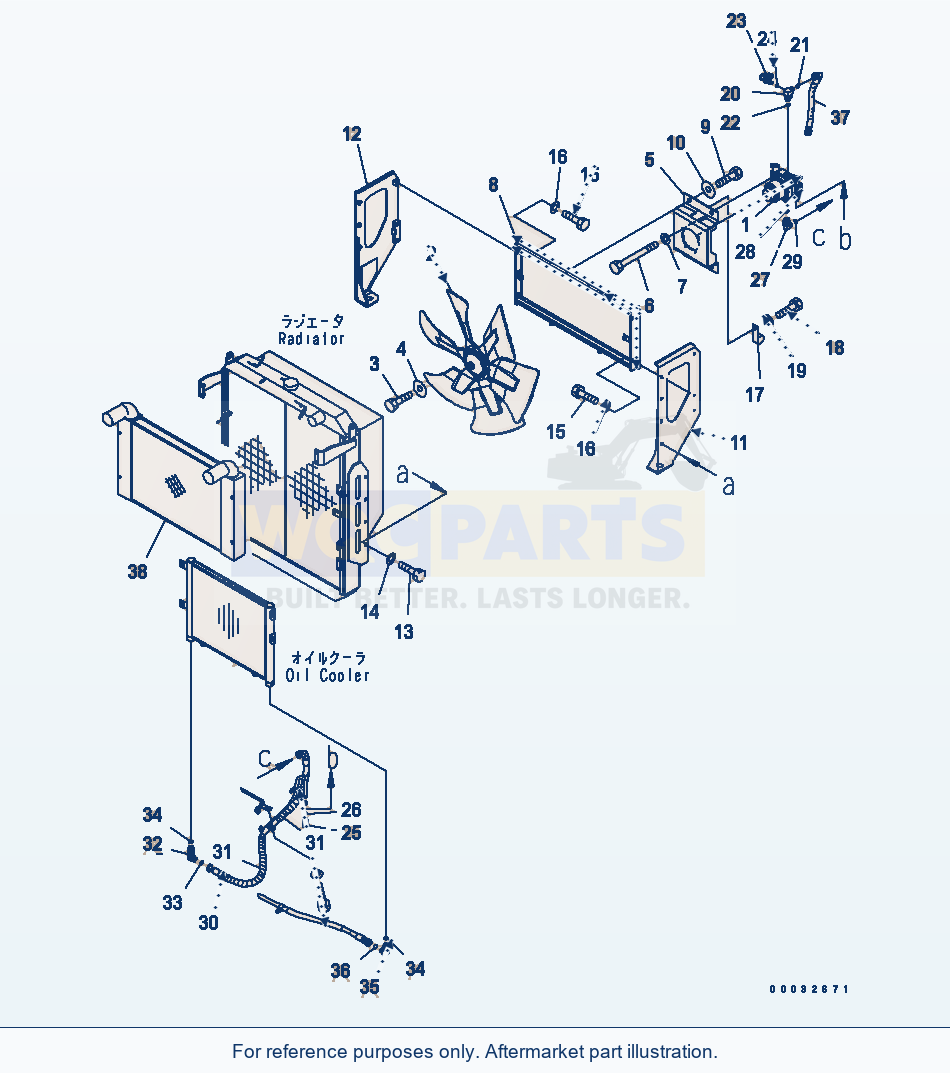

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 40 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | MOTOR ASS'YSN: 80563-80633 | 1 | Request quote | |||
| 1 | MOTOR ASS'YSN: 80106-80562 | 1 | Request quote | |||
| 1 | MOTOR ASS'YSN: 80100-80105 | 1 | Request quote | |||
| 2 | FANSN: 80100-80633 | 1 | Request quote | |||
| 3 | BOLTSN: 80100-80633 | 1 | Request quote | |||
| 4 | WASHERSN: 80100-80633 | 1 | Request quote | |||
| 5 | BRACKETSN: 80100-@ | 1 | Request quote | |||
| 6 | BOLTSN: 80100-@ | 4 | Request quote | |||
| 7 | WASHERSN: 80100-@ | 4 | View product ↗ | |||
| 8 | BRACKETSN: 80100-@ | 1 | Request quote | |||
| 9 | BOLTSN: 80100-@ | 4 | Request quote | |||
| 10 | WASHERSN: 80100-@ | 4 | Request quote | |||
| 11 | BRACKET,L.H.SN: 80100-@ | 1 | Request quote | |||
| 12 | BRACKET,R.H.SN: 80100-@ | 1 | Request quote | |||
| 13 | BOLTSN: 80100-@ | 8 | Request quote | |||
| 14 | WASHERSN: 80100-@ | 8 | View product ↗ | |||
| 15 | BOLTSN: 80100-@ | 4 | Request quote | |||
| 16 | WASHERSN: 80100-@ | 4 | View product ↗ | |||
| 17 | CLIPSN: 80100-@ | 1 | Request quote | |||
| 18 | BOLTSN: 80100-@ | 1 | Request quote | |||
| 19 | WASHERSN: 80100-@ | 1 | View product ↗ | |||
| 20 | ELBOWSN: 80100-@ | 1 | Request quote | |||
| 21 | O-RINGSN: 80100-@ | 1 | View product ↗ | |||
| 22 | O-RINGSN: 80100-@ | 1 | View product ↗ | |||
| 23 | NIPPLESN: 80100-@ | 1 | Request quote | |||
| 24 | O-RINGSN: 80100-@ | 1 | View product ↗ | |||
| 25 | ELBOWSN: 80100-@ | 1 | Request quote | |||
| 26 | O-RINGSN: 80100-@ | 1 | View product ↗ | |||
| 27 | ELBOWSN: 80100-@ | 1 | Request quote | |||
| 28 | O-RINGSN: 80100-@ | 1 | View product ↗ | |||
| 29 | O-RINGSN: 80100-@ | 1 | View product ↗ | |||
| 30 | HOSESN: 80100-@ | 1 | Request quote | |||
| 31 | SPIRAL TUBESN: 80100-@ | 2 | Request quote | |||
| 32 | ELBOWSN: 80100-@ | 1 | Request quote | |||
| 33 | O-RINGSN: 80100-@ | 1 | View product ↗ | |||
| 34 | O-RINGSN: 80100-@ | 2 | View product ↗ | |||
| 35 | ELBOWSN: 80100-@ | 1 | Request quote | |||
| 36 | O-RINGSN: 80100-@ | 1 | View product ↗ | |||
| 37 | HOSESN: 80100-@ | 1 | Request quote | |||
| 38 | AFTERCOOLER ASS'YSN: 80100-@ | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
