Komatsu WA470-5 Common Rail (Inner Parts)(#310001-) Parts
Komatsu WA470-5 common rail (inner parts)(#310001-) parts for machine serial 70001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D125E-3A-8W S/N 310314-UP / Engine / Common Rail (Inner Parts)(#310001-).
Checking current purchase options...

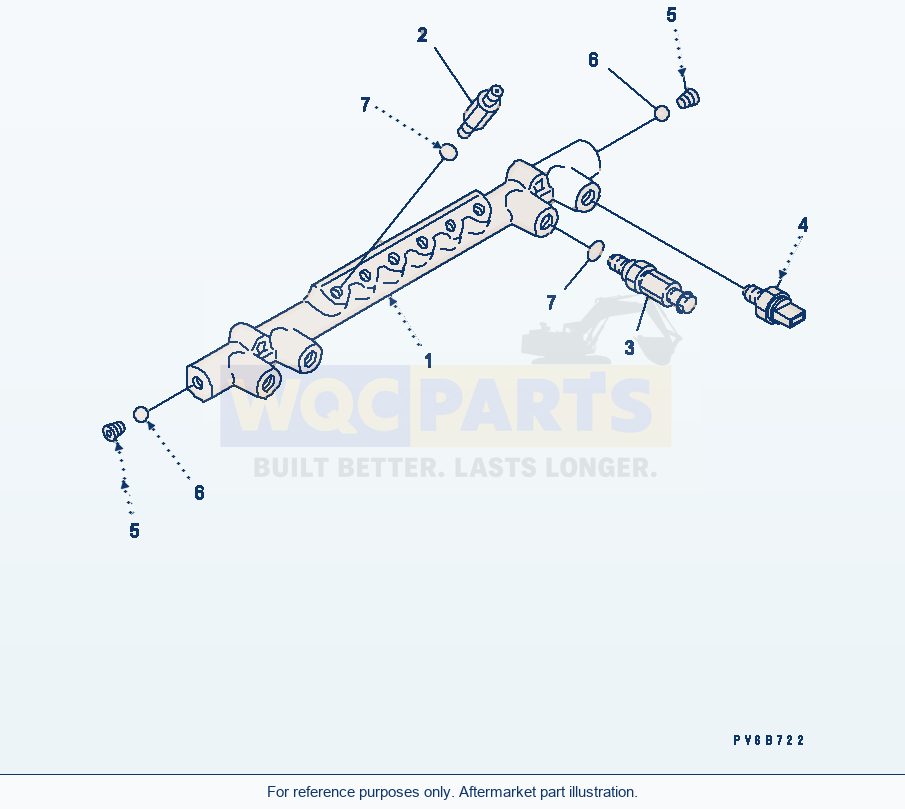

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 7 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | RAIL ASS'Y,COMMONSN: 310001-UP | 1 | Request quote | |||
| 2 | RAIL ASS'Y,COMMONSN: (310001-310168) | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 2 | LIMITER ASS'Y,FUEL FLOWSN: 310001-UP | 6 | Request quote | |||
| 2 | LIMITER ASS'Y,FUEL FLOWSN: (310001-310168) | This shows a discontinued part. The part specified in the above line is supplied instead. | 6 | Request quote | |||
| 3 | LIMITER ASS'Y,FUEL PRESSURESN: 310001-UP | 1 | Request quote | |||
| 4 | SENSOR ASS'Y,FUEL PRESSURESN: 310001-UP | 1 | Request quote | |||
| 7 | PICCO RINGSN: 310001-UP | 7 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: RAIL,COMMON | QTY: 1 | OPTIONS: SN: 310001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: PLUG,COMMON RAIL | QTY: 2 | OPTIONS: SN: 310001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: BALL,STEEL | QTY: 2 | OPTIONS: SN: 310001-UP
Using Komatsu WA470-5 Common Rail (Inner Parts)(#310001-) Parts
Use the Komatsu WA470-5 Common Rail (Inner Parts)(#310001-) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 70001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 7 listed part occurrences, including rail ass'y,common (reference 6217-71-1211), rail ass'y,common (reference 6217-71-1210) and limiter ass'y,fuel flow (reference ND095400-0240). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D125E-3A-8W (engine serial 310314-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
